Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 45mm Backset, 92mm PZ, 36" Handle Height, 24.41" Tongue

Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 45mm Backset, 92mm PZ, 36" Handle Height, 24.41" Tongue

SKU: 8778107

$181.22 - $181.22
$181.22
$181.22 - $181.22
$181.22
  • Backset: 1-3/4" (45mm)
  • PZ: 92mm
  • Handle Height: 36" (914mm)
  • Bottom Tongue Position: 24.41" (620mm)
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25.4mm)
  • HLS9000 tongue/shootbolt version for active doors
  • Includes 6 mounting screws
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

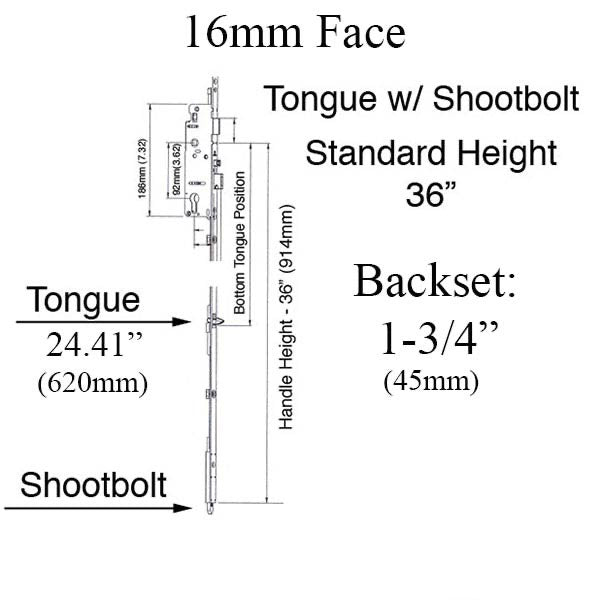

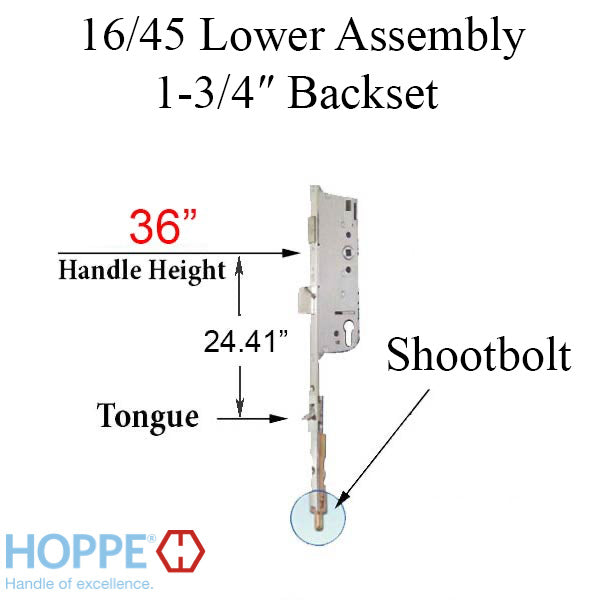

Hoppe HLS9000 Lower Extension – 45/92, 36" Handle (8778107)

This Hoppe HLS9000 multipoint lower extension assembly features a tongue and shootbolt design for active swing doors. The manual gear system provides reliable locking performance with a 1-inch deadbolt throw for enhanced security.

Designed with a 1-3/4 inch (45mm) backset and 92mm PZ spacing, this lower assembly integrates seamlessly with compatible Hoppe multipoint lock systems. The 36-inch handle height and 24.41-inch bottom tongue position make it suitable for standard door configurations.

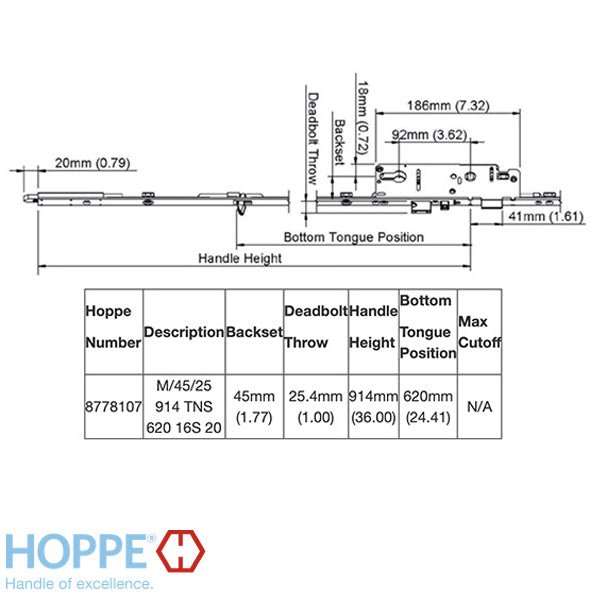

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • PZ: 92mm
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 24.41 inches (620mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Number of Screws: 6
  • Series: HLS9000
  • Article Number: 90057

Related Parts

  • 8777951 - 16/45 Lower Assembly, 35-3/4" Handle Height
  • 8778263 - 16/35 Lower Assembly, 1-3/8" Backset, 36" Handle Height
  • 2406477 - 16/60 Lower Assembly, 2-3/8" Backset, 36" Handle Height
  • 2107477 - 16/45 Lower Assembly, 36" Handle Height
  • 2406485 - 16/70 Lower Assembly, 2-3/4" Backset, 36" Handle Height
  • 2516297 - 16/45 Lower Assembly, 36-1/2" Handle Height
  • 2760062 - 16/45 Lower Assembly, 36-7/8" Handle Height
  • 2339382 - 16/45 Lower Assembly, 39-5/8" Handle Height
  • 2680919 - 16/35 Lower Assembly, 1-3/8" Backset, 39-5/8" Handle Height
  • 2607957 - 16/45 Lower Assembly, 54" Handle Height

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between this and other Hoppe lower assemblies?

This assembly has a 36-inch handle height and 1-3/4 inch backset. Other variants offer different handle heights (35-3/4", 36-1/2", 39-5/8", 54") and backsets (1-3/8", 2-3/8", 2-3/4") to fit various door configurations.

What does tongue and shootbolt mean?

The tongue and shootbolt design provides additional locking points at the bottom of the door, with the tongue engaging the strike plate and the shootbolt extending into the threshold for enhanced security.

How do I measure handle height for a multipoint lock?

Measure from the bottom of the faceplate to the center of the handle bore hole. This measurement should match the 36-inch handle height specification of this assembly.
