Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 60mm Backset, 92mm PZ, 36" Handle Height, 24.41" Tongue

Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 60mm Backset, 92mm PZ, 36" Handle Height, 24.41" Tongue

SKU 2406477

$194.93 - $194.93
$194.93
$194.93 - $194.93
$194.93

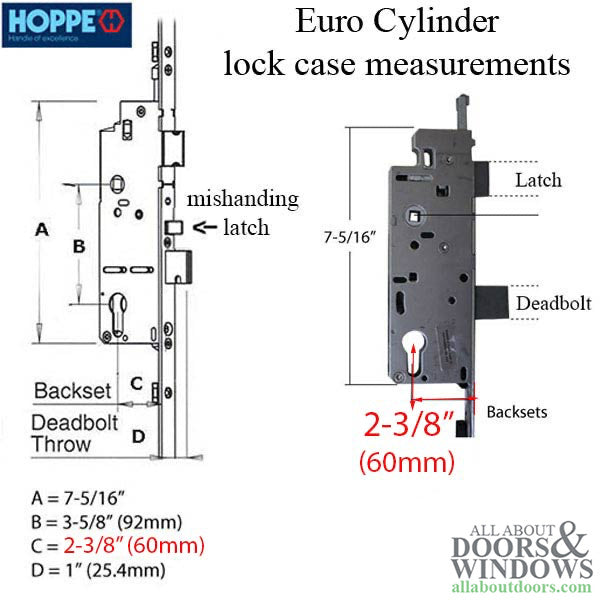

  • Backset: 2-3/8" (60mm)
  • PZ: 92mm
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Bottom Tongue Position: 24.41" (620mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Bottom section of HLS9000 3-piece multipoint system
  • Tongue/shootbolt version for active door
  • Manual gear operation
  • Includes 6 mounting screws
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe HLS9000 Lower Extension – 60/92, 36" Handle (2406477)

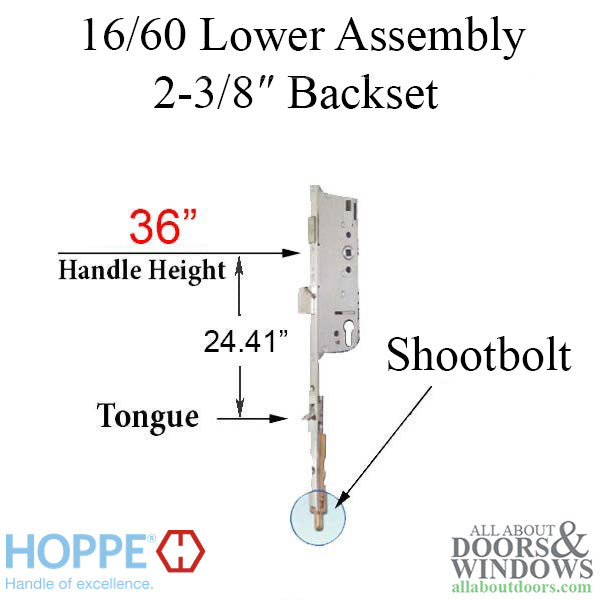

This Hoppe HLS9000 multipoint lower extension with tongue and shootbolt is the bottom section of a 3-piece multipoint locking system designed for active swing doors. It features manual gear operation and provides secure locking at the bottom of the door through the integrated tongue and shootbolt mechanism.

With a 2-3/8 inch (60mm) backset and 92mm PZ, this lower assembly is built for doors requiring a 36-inch handle height. The bottom tongue engages at 24.41 inches (620mm) from the handle center, and the deadbolt provides a 1-inch throw for reliable security.

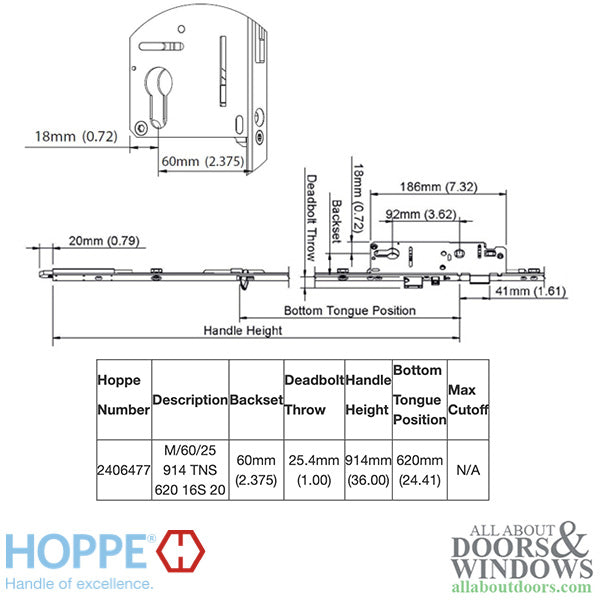

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • PZ: 92mm
  • Faceplate Width: 5/8 inch (16mm)
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 24.41 inches (620mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Number of Screws: 6
  • Series: HLS9000
  • Type: Tongue/Shootbolt Version
  • Application: Active Door

Related Parts

  • 8777951 - 16/45 Lower Assembly, 1-3/4" Backset, 35-3/4" Handle Height
  • 8778107 - 16/45 Lower Assembly, 1-3/4" Backset, 36" Handle Height
  • 8778263 - 16/35 Lower Assembly, 1-3/8" Backset, 36" Handle Height
  • 2107477 - 16/45 Lower Assembly, 1-3/4" Backset, 36" Handle Height
  • 2406485 - 16/70 Lower Assembly, 2-3/4" Backset, 36" Handle Height
  • 2516297 - 16/45 Lower Assembly, 1-3/4" Backset, 36-1/2" Handle Height
  • 2760062 - 16/45 Lower Assembly, 1-3/4" Backset, 36-7/8" Handle Height
  • 2339382 - 16/45 Lower Assembly, 1-3/4" Backset, 39-5/8" Handle Height
  • 2680919 - 16/35 Lower Assembly, 1-3/8" Backset, 39-5/8" Handle Height
  • 2607957 - 16/45 Lower Assembly, 1-3/4" Backset, 54" Handle Height

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What other pieces do I need for a complete multipoint lock system?

This is the bottom section (1 of 3 pieces) of the HLS9000 system. You will also need the center lock case and upper extension to complete the multipoint lock assembly.

How do I measure the handle height for my door?

Measure from the bottom of the door to the center of the handle bore hole. This assembly is designed for doors with a 36-inch handle height.

What is the tongue position measurement?

The bottom tongue position of 24.41 inches indicates the distance from the handle center to where the tongue engages in the door frame for locking.
