Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 45mm Backset, 16mm Faceplate, 35-3/4" Handle Height

Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 45mm Backset, 16mm Faceplate, 35-3/4" Handle Height

SKU 8777951

$164.84 - $164.84
$164.84
$164.84 - $164.84
$164.84
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 35-3/4" (908mm)
  • Tongue Position: 24.41" (620mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Shootbolt Throw: 3/4" (20mm)
  • Square end faceplate
  • Manual active gear operation
  • Includes tongue and shootbolt bottom extension
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe HLS9000 Lower Extension – 45/16, 35-3/4" Handle (8777951)

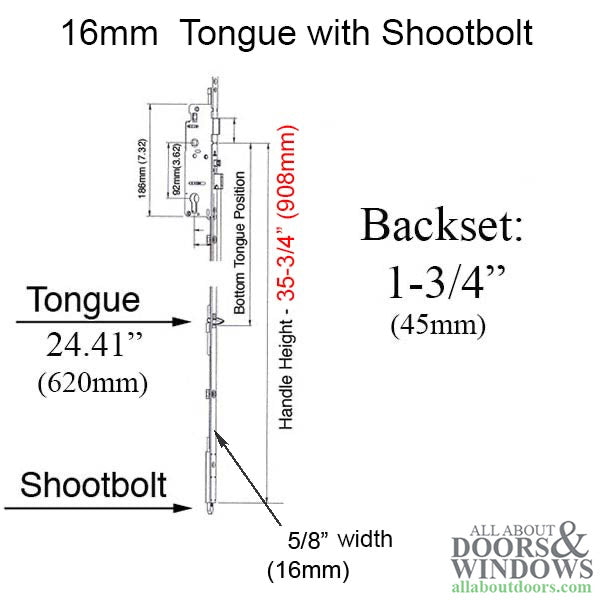

This Hoppe HLS9000 manual active gear is a lower extension assembly designed for multipoint door systems. It features a 1-3/4 inch (45mm) backset and a 5/8 inch (16mm) wide faceplate with a square end profile.

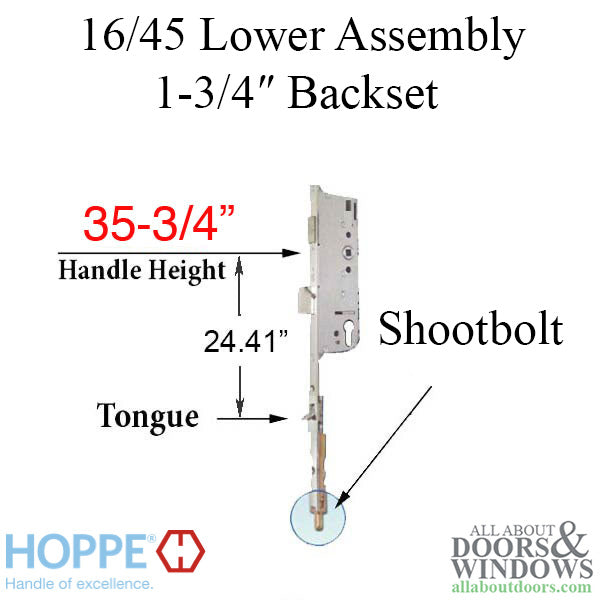

The assembly includes both a tongue and shootbolt for secure locking at the bottom of the door. The handle height measures 35-3/4 inches (908mm), with the tongue positioned at 24.41 inches (620mm) from the handle center.

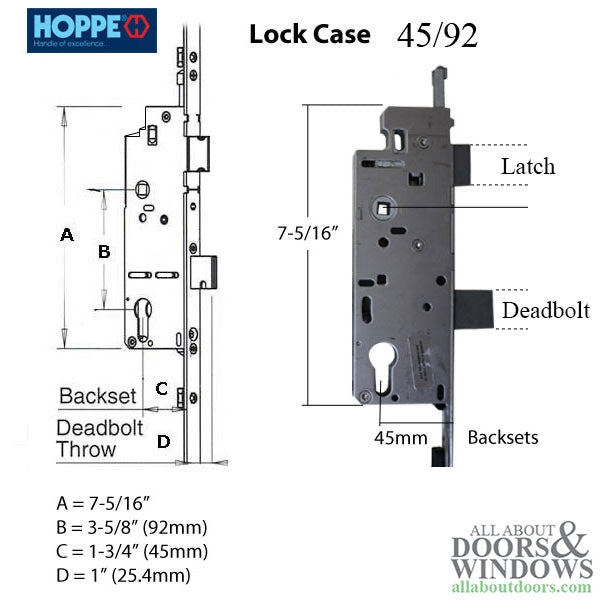

The deadbolt provides a 1 inch (25.4mm) throw, while the shootbolt extends 3/4 inch (20mm) for additional security at the door bottom.

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Handle Height: 35-3/4 inches (908mm)
  • Tongue Position: 24.41 inches (620mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Shootbolt Throw: 3/4 inches (20mm)
  • Faceplate End: Square
  • Operation: Manual active gear

Related Parts

  • 8778107 - Hoppe 16/45 Lower Assembly, 36 inch Handle Height
  • 8778263 - Hoppe 16/35 Lower Assembly, 1-3/8 inch Backset, 36 inch Handle Height
  • 2406477 - Hoppe 16/60 Lower Assembly, 2-3/8 inch Backset, 36 inch Handle Height
  • 2107477 - Hoppe 16/45 Lower Assembly, 36 inch Handle Height
  • 2406485 - Hoppe 16/70 Lower Assembly, 2-3/4 inch Backset, 36 inch Handle Height
  • 2516297 - Hoppe 16/45 Lower Assembly, 36-1/2 inch Handle Height
  • 2760062 - Hoppe 16/45 Lower Assembly, 36-7/8 inch Handle Height
  • 2339382 - Hoppe 16/45 Lower Assembly, 39-5/8 inch Handle Height
  • 2680919 - Hoppe 16/35 Lower Assembly, 1-3/8 inch Backset, 39-5/8 inch Handle Height
  • 2607957 - Hoppe 16/45 Lower Assembly, 54 inch Handle Height

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between this and other Hoppe lower extensions?

This extension has a 35-3/4 inch handle height. Other versions are available with different handle heights ranging from 36 inches to 54 inches to match your specific door configuration.

How do I measure the handle height on my door?

Measure from the bottom of the faceplate to the center of the handle bore hole. This measurement helps determine which lower extension assembly is correct for your door.

What does the tongue and shootbolt do?

The tongue engages with the strike plate for primary locking, while the shootbolt extends into the threshold or floor strike for additional security at the bottom of the door.
