Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 70mm Backset, 36" Handle Height, 24.41" Tongue

Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 70mm Backset, 36" Handle Height, 24.41" Tongue

SKU 2406485

$215.68 - $215.68
$215.68
$215.68 - $215.68
$215.68
  • Backset: 2-3/4" (70mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Bottom Tongue Position: 24.41" (620mm)
  • Deadbolt Throw: 1" (25.4mm)
  • HLS9000 series bottom section with tongue/shootbolt for active door
  • Part 1 of 3 pieces for complete multipoint system
  • 6 mounting screws required
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe HLS9000 Lower Extension – 16/70, 36" Handle (2406485)

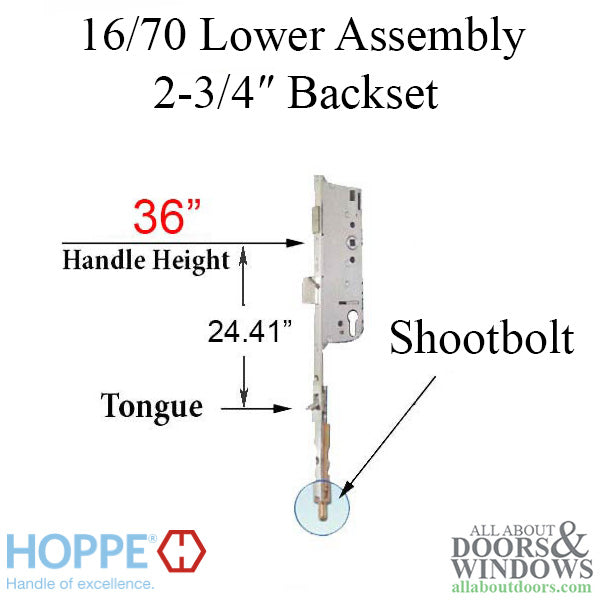

This Hoppe HLS9000 multipoint lower extension assembly is designed for active swing doors requiring a tongue and shootbolt configuration. As the bottom section of a three-piece multipoint lock system, this manual gear assembly provides secure locking at the lower portion of your door.

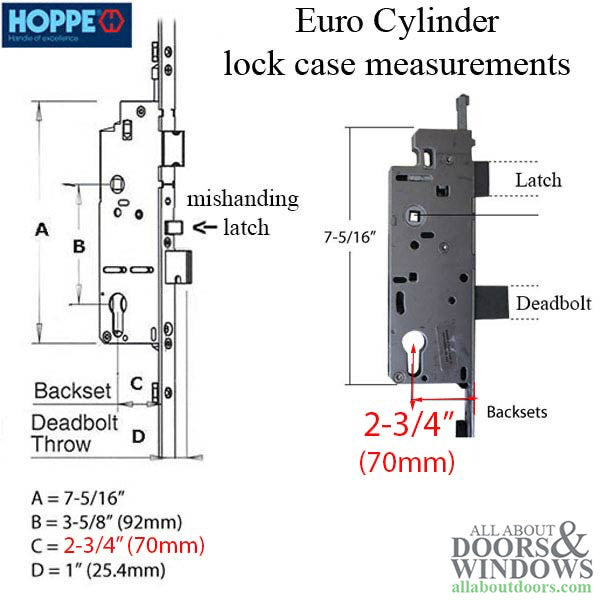

The assembly features a 2-3/4 inch (70mm) backset with a 5/8 inch (16mm) faceplate width. The handle height measures 36 inches (914mm) from the bottom of the faceplate, with the tongue positioned at 24.41 inches (620mm). The deadbolt provides a 1 inch (25.4mm) throw for reliable security.

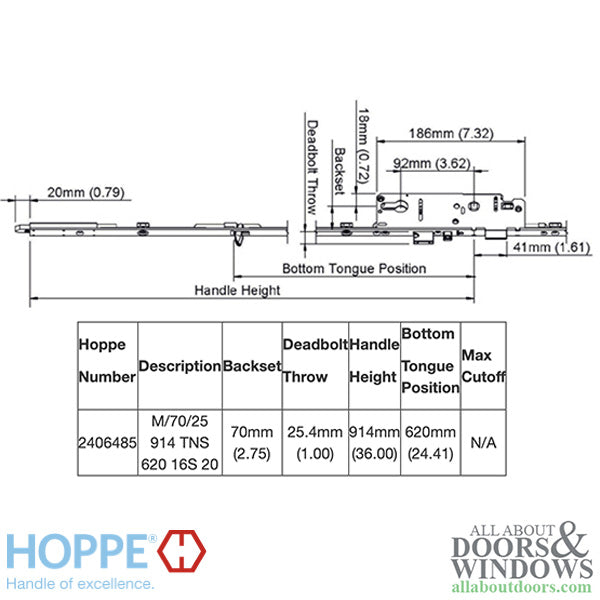

Technical Information

  • Series: HLS9000
  • Backset: 2-3/4 inches (70mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 24.41 inches (620mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Number of Screws: 6
  • Configuration: 16/70

Related Parts

  • 8777951 - 16/45 Lower Assembly, 1-3/4" Backset, 35-3/4" Handle Height
  • 8778107 - 16/45 Lower Assembly, 1-3/4" Backset, 36" Handle Height
  • 8778263 - 16/35 Lower Assembly, 1-3/8" Backset, 36" Handle Height
  • 2406477 - 16/60 Lower Assembly, 2-3/8" Backset, 36" Handle Height
  • 2107477 - 16/45 Lower Assembly, 1-3/4" Backset, 36" Handle Height
  • 2516297 - 16/45 Lower Assembly, 1-3/4" Backset, 36-1/2" Handle Height
  • 2760062 - 16/45 Lower Assembly, 1-3/4" Backset, 36-7/8" Handle Height
  • 2339382 - 16/45 Lower Assembly, 1-3/4" Backset, 39-5/8" Handle Height
  • 2680919 - 16/35 Lower Assembly, 1-3/8" Backset, 39-5/8" Handle Height
  • 2607957 - 16/45 Lower Assembly, 1-3/4" Backset, 54" Handle Height

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Is this a complete multipoint lock system?

No, this is the bottom section (1 of 3 pieces) of the Hoppe HLS9000 multipoint lock system. You will need the upper extension and lock case to complete the assembly.

How do I measure handle height for this lock?

Measure from the bottom of the faceplate to the center of the handle bore hole. This assembly has a 36 inch handle height.

What is the tongue position measurement?

The tongue position of 24.41 inches indicates the distance from the bottom of the faceplate to the center of the shootbolt/tongue mechanism.
