Giesse Multipoint Locks - Replacement Parts

Giesse INOX Multipoint Lock Cases for Terrace and Balcony Doors

Giesse manufactures specialized multipoint lock hardware designed for the demands of exterior terrace and balcony door applications. These Italian-made INOX (stainless steel) lock cases integrate into multipoint locking systems where the handle lift engages the deadbolt and additional locking points simultaneously. MPLocks carries Giesse lock cases in the most common European sizing configurations, including 35mm and 45mm backsets paired with 85mm and 92mm PZ spacing. When your existing Giesse lock case fails or shows signs of wear, finding an exact replacement with matching specifications is essential for proper door function and security.

Stainless Steel Construction for Lasting Performance

Every Giesse lock case in this collection features INOX stainless steel construction, providing superior corrosion resistance for exterior door applications. This material choice is particularly important for terrace and balcony doors exposed to weather and humidity. The 7/8 inch (22mm) wide faceplates and 3/4 inch (20mm) deadbolt projection are standard across the lineup, ensuring consistent security performance. These lock cases are built to handle daily use while maintaining smooth operation of the lift-and-lock mechanism that European-style multipoint systems require.

Compatible with Hoppe Trim on Aluminum Doors

Giesse multipoint lock cases are frequently paired with Hoppe handle trim on aluminum terrace door installations. This cross-compatibility means you can often retain your existing exterior handles while replacing just the internal lock mechanism. The 92mm PZ versions align with standard European handle spacing, making them interchangeable with many Hoppe HLS9000 series handle sets. If your aluminum door came with Giesse hardware from the factory, these replacement lock cases restore original function without requiring a complete system overhaul.

• Hoppe Multipoint Lock Hardware
• Hoppe HLS9000 Hinged Door Handle Sets and Accessories
• Euro Profile Cylinders for Multipoint Locks

Selecting the Right Backset and PZ Measurement

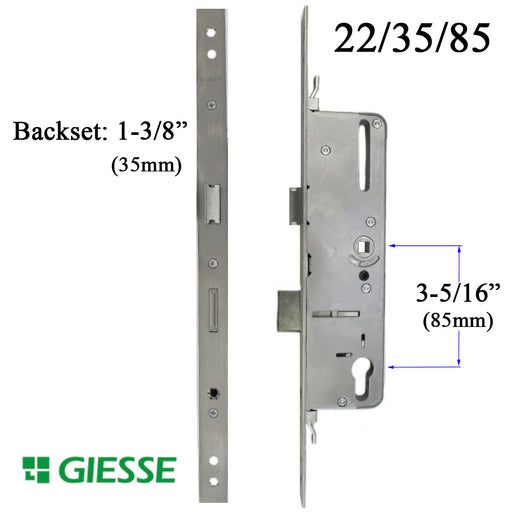

Choosing the correct Giesse lock case requires two critical measurements: backset and PZ spacing. The backset is the distance from the edge of the door to the center of the handle spindle hole—available here in 35mm (1-3/8 inch) and 45mm (1-3/4 inch) options. PZ spacing measures from the handle center to the cylinder center, with 85mm and 92mm being the most common configurations. Measure your existing lock case carefully before ordering, as even small differences in these dimensions will prevent proper installation and handle alignment.

If you need help confirming which Giesse lock case matches your door, our team is ready to assist. Call (816) 221-6543 to speak with a multipoint lock specialist who can walk you through the measurement process. You can also submit your lock details through our free Multipoint Lock Identifier for a personalized replacement recommendation.
