Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 35mm Backset, 39.62" Handle Height, 24.41" Tongue

Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 35mm Backset, 39.62" Handle Height, 24.41" Tongue

SKU 2680919

Sold out
$220.02 - $220.02
$220.02
$220.02 - $220.02
$220.02
  • Backset: 35mm (1-3/8")
  • Handle Height: 39.62" (1006mm)
  • Tongue Position: 24.41" (620mm)
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Type: Manual version with tongue and shootbolt
  • Bottom half of multipoint lock system (gear and bottom extension)
  • Discontinued: Limited to existing inventory
  • Sold individually
This product has been discontinued and is no longer available
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Lower Extension 16/35 – 39.62" Handle Height (2680919)

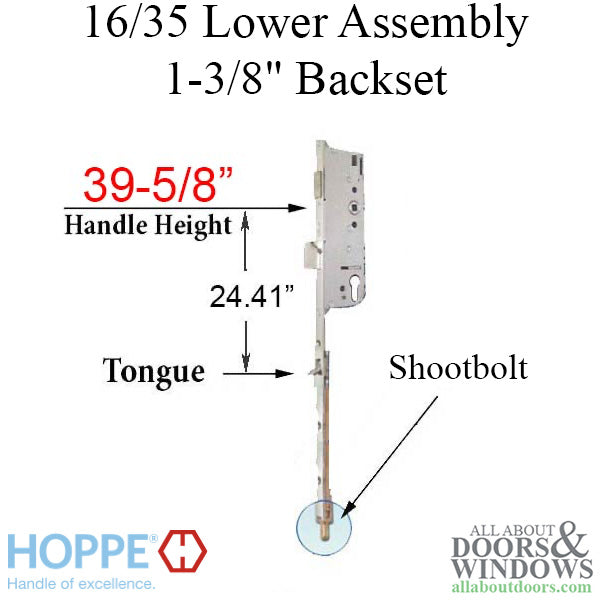

This Hoppe multipoint lower extension with tongue and shootbolt is the bottom half of a multipoint lock system, combining the gear and bottom extension into one assembly. Designed for swing door applications with a 35mm (1-3/8 inches) backset and 39.62 inches (1006mm) handle height.

The manual version features a tongue and shootbolt configuration with a 24.41 inches (620mm) tongue position. The 16mm faceplate width and 1 inch (25.4mm) deadbolt throw provide secure locking engagement.

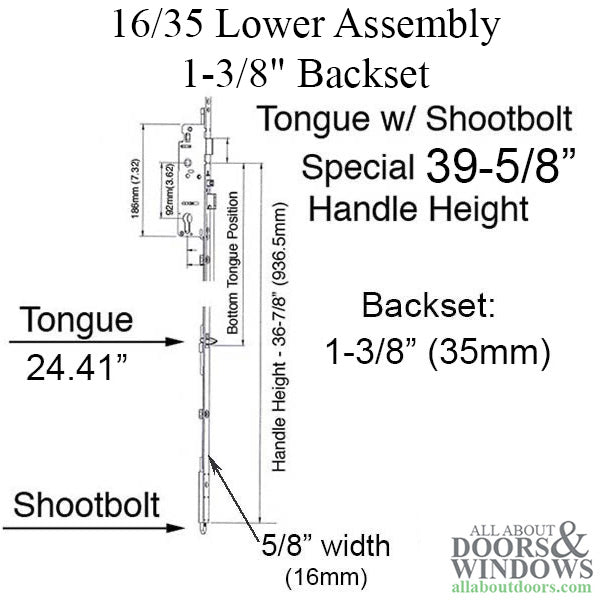

Technical Information

  • Backset: 35mm (1-3/8 inches)
  • Handle Height: 39.62 inches (1006mm)
  • Tongue Position: 24.41 inches (620mm)
  • Faceplate Width: 16mm (5/8 inches)
  • Deadbolt Throw: 25.4mm (1 inch)
  • Configuration: 16/35
  • Type: Manual gear with tongue and shootbolt

Notes

  • This item is discontinued and limited to existing inventory
  • Bottom half of multipoint lock system only

Related Parts

  • 8777951 - 16/45 Lower Assembly, 45mm backset, 35-3/4" handle height
  • 8778107 - 16/45 Lower Assembly, 45mm backset, 36" handle height
  • 8778263 - 16/35 Lower Assembly, 35mm backset, 36" handle height
  • 2406477 - 16/60 Lower Assembly, 60mm backset, 36" handle height
  • 2107477 - 16/45 Lower Assembly, 45mm backset, 36" handle height
  • 2406485 - 16/70 Lower Assembly, 70mm backset, 36" handle height
  • 2516297 - 16/45 Lower Assembly, 45mm backset, 36-1/2" handle height
  • 2760062 - 16/45 Lower Assembly, 45mm backset, 36-7/8" handle height
  • 2339382 - 16/45 Lower Assembly, 45mm backset, 39-5/8" handle height
  • 2607957 - 16/45 Lower Assembly, 45mm backset, 54" handle height

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is this lower extension used for?

This is the bottom half of a Hoppe multipoint lock system, combining the gear and bottom extension with tongue and shootbolt for swing door applications.

How do I measure handle height to find the right replacement?

Measure from the bottom of the faceplate to the center of the handle bore hole. This unit has a 39.62 inch handle height.

Is this product still available?

This item is discontinued and limited to existing inventory. Consider contacting us to verify availability before ordering.
