Hoppe HLS9000 Bottom Gear with Tongue and Shootbolt – 45mm Backset, 16mm Faceplate, 36-7/8" Handle Height

Hoppe HLS9000 Bottom Gear with Tongue and Shootbolt – 45mm Backset, 16mm Faceplate, 36-7/8" Handle Height

SKU 2760062

$156.83 - $156.83
$156.83
$156.83 - $156.83
$156.83
  • Handle Height: 36-7/8" (936.5mm) – Special size

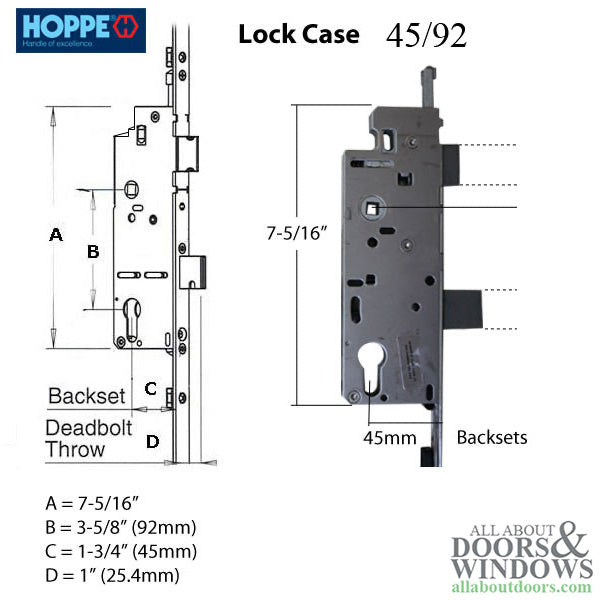

  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Bottom Tongue Position: 26.42" (671mm)
  • Deadbolt Throw: 1" (25.4mm)

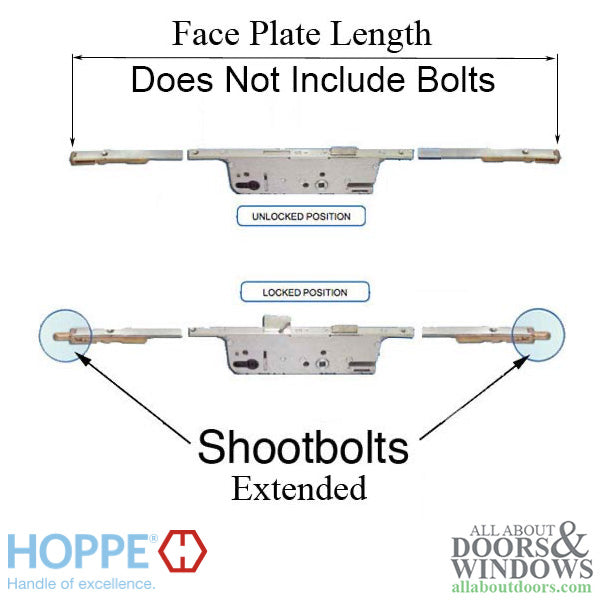

  • Shootbolt Throw: 3/4" (20mm)
  • Finish: Stainless Steel
  • Function: Manual version for active door
  • Compatible With: Crestline, Vetter, SNE Corporation doors
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe HLS9000 Bottom Gear – 45/16, 36-7/8" HH (2760062)

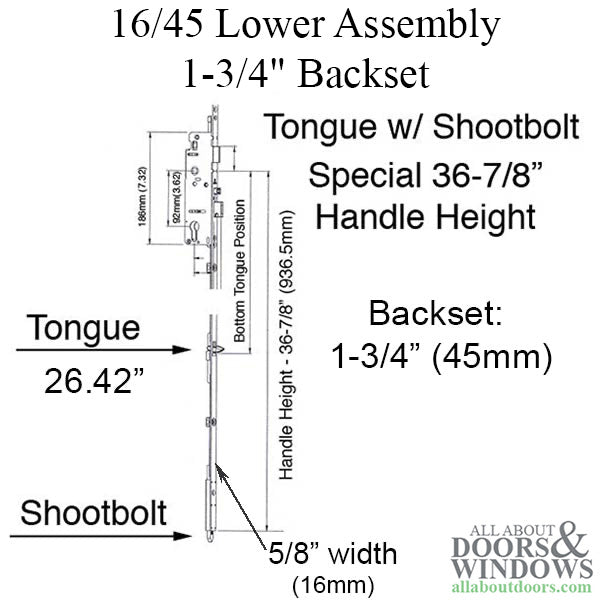

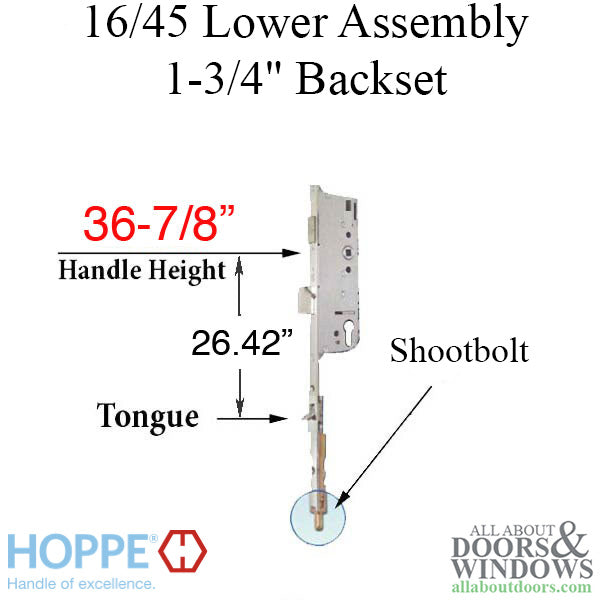

This Hoppe HLS9000 Bottom Gear Assembly features a manual tongue with shootbolt, designed for active multipoint swing doors. This is a special size unit with a 36-7/8 inch handle height, which is slightly taller than the standard 36-inch configuration.

The assembly includes a 1-3/4 inch (45mm) backset with a 5/8 inch (16mm) faceplate width. The deadbolt throw measures 1 inch (25.4mm), while the shootbolt throw is 3/4 inch (20mm). The bottom tongue position is located at 26.42 inches (671mm) from the handle center.

This component is commonly used in doors manufactured by Crestline, Vetter, and SNE Corporation. When replacing multipoint hardware, ensure all components are compatible with your specific door height configuration.

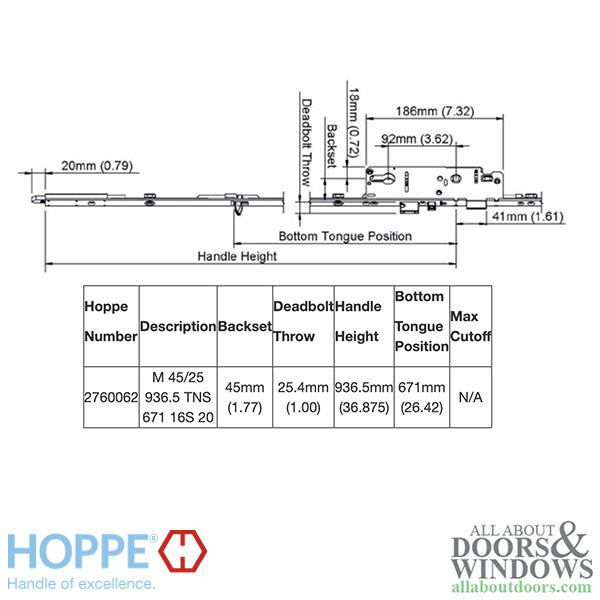

Technical Information

  • Handle Height: 36-7/8 inches (936.5mm)
  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Bottom Tongue Position: 26.42 inches (671mm)
  • Shootbolt Throw: 3/4 inches (20mm)
  • Finish: Stainless Steel
  • Function: Manual (active door)

Notes

  • Special size – 36-7/8 inch handle height (standard is 36 inches)
  • Several door heights available; may require different components for your specific application
  • Compatible with Crestline, Vetter, and SNE Corporation doors

Related Parts

  • 8777951 – 16/45 Lower Assembly, 35-3/4" Handle Height
  • 8778107 – 16/45 Lower Assembly, 36" Handle Height
  • 8778263 – 16/35 Lower Assembly, 36" Handle Height
  • 2406477 – 16/60 Lower Assembly, 36" Handle Height
  • 2107477 – 16/45 Lower Assembly, 36" Handle Height
  • 2406485 – 16/70 Lower Assembly, 36" Handle Height
  • 2516297 – 16/45 Lower Assembly, 36-1/2" Handle Height
  • 2339382 – 16/45 Lower Assembly, 39-5/8" Handle Height
  • 2680919 – 16/35 Lower Assembly, 39-5/8" Handle Height
  • 2607957 – 16/45 Lower Assembly, 54" Handle Height

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What makes this a special size bottom gear?

This unit has a 36-7/8 inch handle height, which is slightly taller than the standard 36-inch configuration. Make sure to measure your existing hardware to confirm this is the correct size.

What doors is this bottom gear compatible with?

This Hoppe HLS9000 bottom gear is commonly used in multipoint doors manufactured by Crestline, Vetter, and SNE Corporation.

What is the difference between manual and automatic multipoint gear?

Manual gear requires you to lift the handle to engage the locking points, while automatic gear engages the locking points when the door closes. This is a manual version designed for active doors.
