Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 35mm Backset, 92mm PZ, 36" Handle Height, 24.41" Tongue

Hoppe Multipoint Lower Extension with Tongue and Shootbolt – 35mm Backset, 92mm PZ, 36" Handle Height, 24.41" Tongue

SKU: 8778263

$181.22 - $181.22
$181.22
$181.22 - $181.22
$181.22

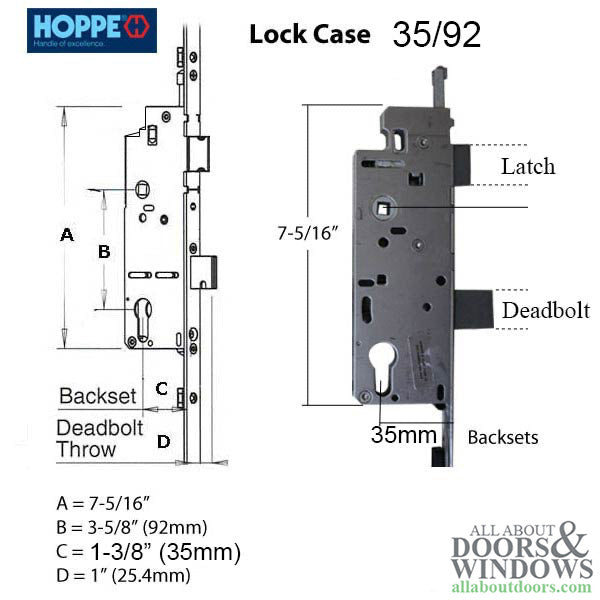

  • Backset: 35mm (1-3/8")
  • PZ: 92mm
  • Faceplate Width: 16mm (5/8")
  • Handle Height: 36" (914mm)
  • Bottom Tongue Position: 24.41" (620mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Manual gear with tongue and shootbolt for active door
  • Part of a 3-piece multipoint lock system (bottom section)
  • Model: HL S9000 MP Manual Gear, 90057 Tongue Version
  • 6 mounting screws included
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

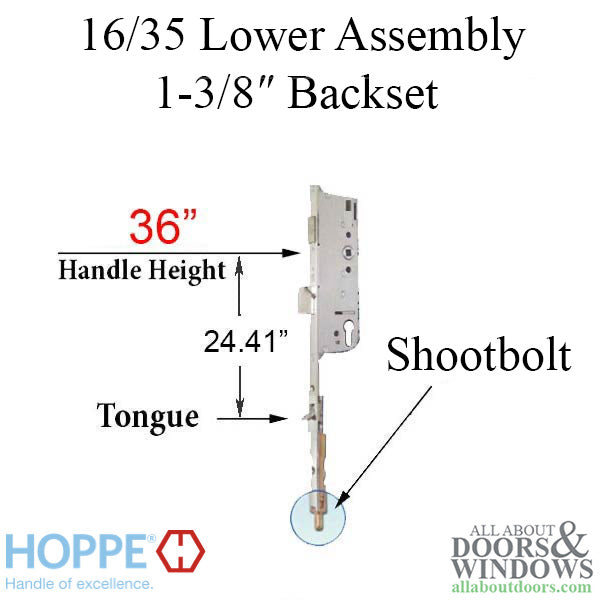

Hoppe 16/35 Lower Extension – 36" Handle, 24.41" Tongue (8778263)

This Hoppe multipoint lower extension with tongue and shootbolt is designed for active swing doors requiring a 35mm backset and 92mm PZ configuration. As the bottom section of a 3-piece multipoint lock system, this manual gear assembly provides secure locking with a 1-inch deadbolt throw.

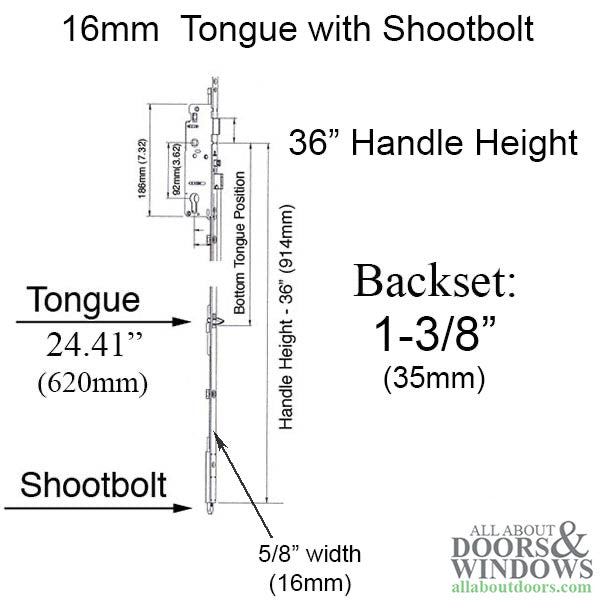

The HL S9000 MP Manual Gear (90057 Tongue Version) features a 16mm faceplate width and is engineered for a 36-inch handle height with the bottom tongue positioned at 24.41 inches from the gear body. This configuration is ideal for standard-height doors where precise tongue placement is critical for proper engagement with the door frame.

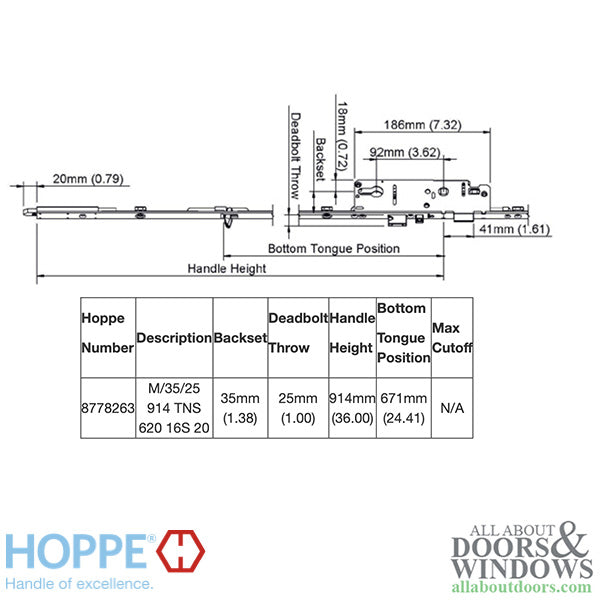

Technical Information

  • Backset: 35mm (1-3/8 inches)
  • PZ: 92mm
  • Faceplate Width: 16mm (5/8 inches)
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 24.41 inches (620mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Number of Screws: 6
  • Model: HL S9000 MP Manual Gear, 90057 Tongue Version

Notes

  • This is the bottom section of a 3-piece multipoint lock system
  • Designed for active door applications
  • Maximum cutoff: N/A

Related Parts

  • 8777951 - 16/45 Lower Assembly, 35-3/4" Handle Height
  • 8778107 - 16/45 Lower Assembly, 36" Handle Height
  • 2406477 - 16/60 Lower Assembly, 36" Handle Height
  • 2107477 - 16/45 Lower Assembly, 36" Handle Height
  • 2406485 - 16/70 Lower Assembly, 36" Handle Height
  • 2516297 - 16/45 Lower Assembly, 36-1/2" Handle Height
  • 2760062 - 16/45 Lower Assembly, 36-7/8" Handle Height
  • 2339382 - 16/45 Lower Assembly, 39-5/8" Handle Height
  • 2680919 - 16/35 Lower Assembly, 39-5/8" Handle Height
  • 2607957 - 16/45 Lower Assembly, 54" Handle Height

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Is this the complete multipoint lock or just one piece?

This is the bottom section of a 3-piece multipoint lock system. You will need the upper extension and lock case to complete the assembly.

How do I measure my handle height to ensure this is the correct part?

Measure from the center of the lock case (where the handle spindle goes through) to the bottom of the faceplate. This part is designed for a 36-inch handle height.

What does the tongue position measurement mean?

The bottom tongue position of 24.41 inches indicates where the shootbolt tongue engages with the door frame, measured from the gear body. This must align with your frame strike for proper locking.
