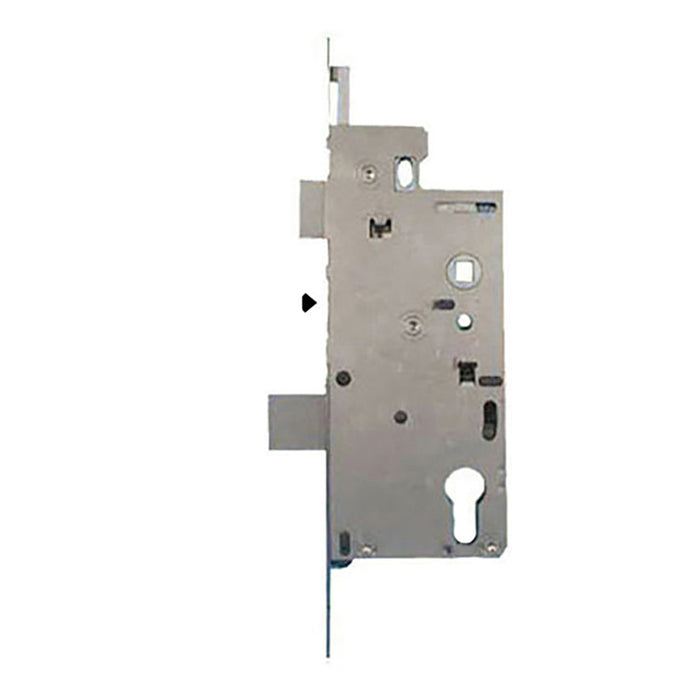

Hoppe Single Point Mortise Lock – 70mm Backset, 92mm PZ, 1" Deadbolt

SKU 11517517

$116.65 - $116.65

$116.65

$116.65 - $116.65

$116.65

PZ: 92mm
Backset: 2-3/4" (70mm)
Faceplate Width: 5/8" (16mm)
Faceplate Length: 10-13/16" (275mm)
Deadbolt Throw: 1" (25mm)
Faceplate Material: Stainless Steel
Faceplate Ends: Radius
New style with rotation limiter (lever is fixed and does not move after door is locked)
Compatible with Caradco, Norco, WeatherShield, Biltbest, and Shelter doors
Latch handing can be reversed with a small screwdriver
Sold individually

Estimated Delivery

Between December 11 and December 15

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Hoppe Single Point Mortise Lock – 70/92, 1" Deadbolt (11517517)

This Hoppe Single Point Mortise Lock features a 70mm backset and 92mm PZ spacing, making it a reliable choice for single point door applications. The lock includes a 1-inch deadbolt throw and a 16mm stainless steel faceplate with radius ends.

This is the new style lock with a rotation limiter, meaning the lever is fixed and does not move after the door is locked. This design provides added security and prevents unauthorized manipulation of the handle when the deadbolt is engaged.

This single point lock is commonly used on doors manufactured by Caradco, Norco, WeatherShield, Biltbest, and Shelter. It also serves as a replacement for FUHR single point locks.

Important: This Single Point Mortise Lock cannot be used to repair a multipoint lock. There are no interchangeable parts from this lock that can be used on other locks.

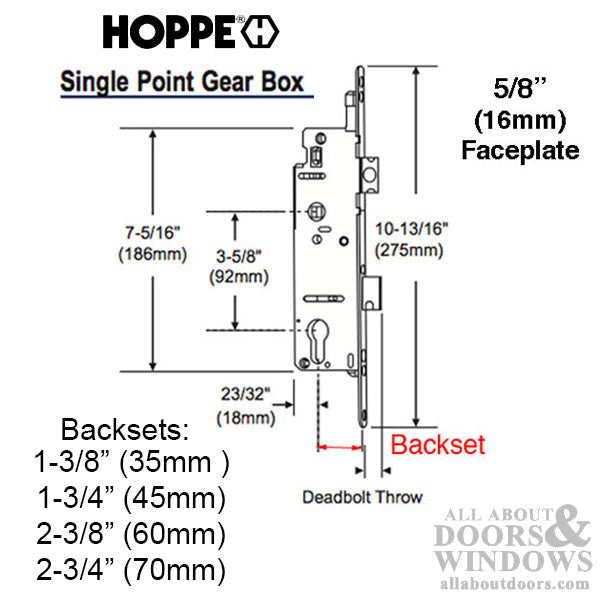

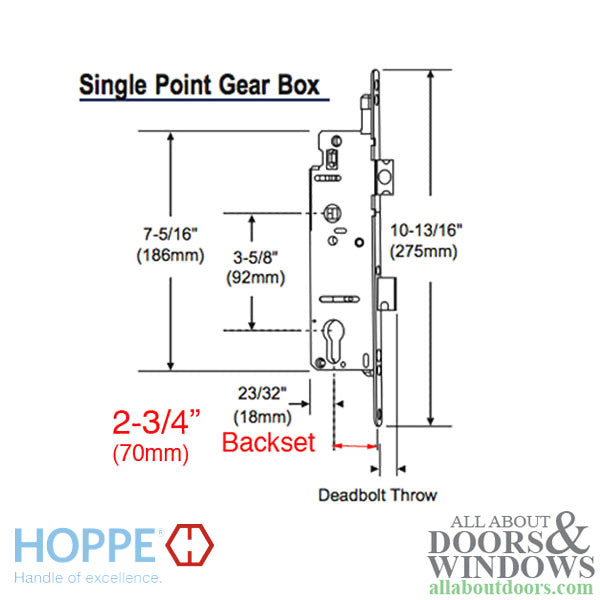

Technical Information

PZ: 92mm
Backset: 2-3/4 inches (70mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Length: 10-13/16 inches (275mm)
Faceplate Screw Holes: 10-1/8 inches (257mm)
Deadbolt Throw: 1 inch (25mm)
Faceplate Material: Stainless Steel
Faceplate Ends: Radius

Notes

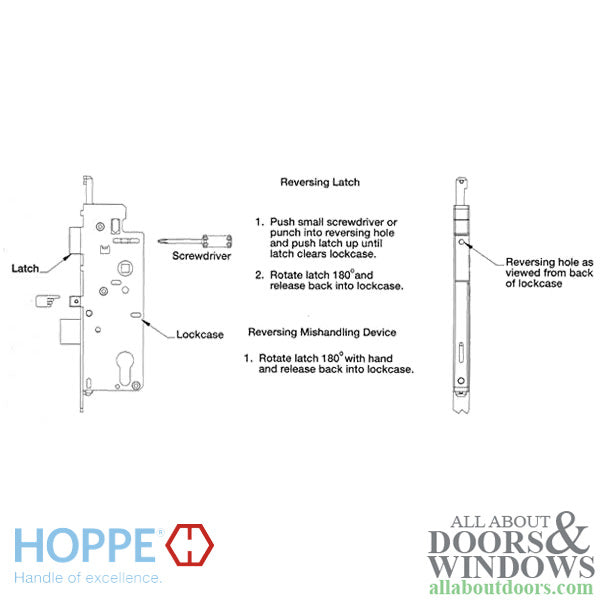

Latch handing may be changed by inserting a small screwdriver into the small hole in the back of the latch, pushing forward, twisting the latch, and releasing
New style with rotation limiter (lever is fixed after locking)

Replaces / Replaced by

FUHR Single Point Locks

Related Parts

11517463 - Hoppe Single Point Lock, 35mm backset, 14mm deadbolt, 16mm faceplate with radius ends
11517475 - Hoppe Single Point Lock, 35mm backset, 25.4mm deadbolt, 16mm faceplate with radius ends
11517487 - Hoppe Single Point Lock, 45mm backset, 14mm deadbolt, 16mm faceplate with radius ends
11517499 - Hoppe Single Point Lock, 45mm backset, 25.4mm deadbolt, 16mm faceplate with radius ends
11517505 - Hoppe Single Point Lock, 60mm backset, 25.4mm deadbolt, 16mm faceplate with radius ends
11517529 - Hoppe Single Point Lock, 35mm backset, 25.4mm deadbolt, 16mm faceplate with square ends
8785695 - Installation Screw, 1-3/8 inch (35mm), 8mm Head, Stainless Steel
8785687 - Installation Screw, 3/4 inch (20mm), 8mm Head, Stainless Steel

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I use this lock to repair my multipoint lock?

No, this Single Point Mortise Lock cannot be used to repair a multipoint lock. There are no interchangeable parts from this lock that can be used on other locks.

How do I reverse the latch handing on this lock?

Insert a small screwdriver into the small hole in the back of the latch, push forward, twist the latch, and release to change the handing direction.

What does the rotation limiter feature do?

The rotation limiter keeps the lever fixed and prevents it from moving after the door is locked, providing added security against handle manipulation.
