Hoppe Single Point Mortise Lock – 45mm Backset, 92mm PZ, 1" Deadbolt

Hoppe Single Point Mortise Lock – 45mm Backset, 92mm PZ, 1" Deadbolt

SKU 11517499

$89.66 - $89.66
$89.66
$89.66 - $89.66
$89.66

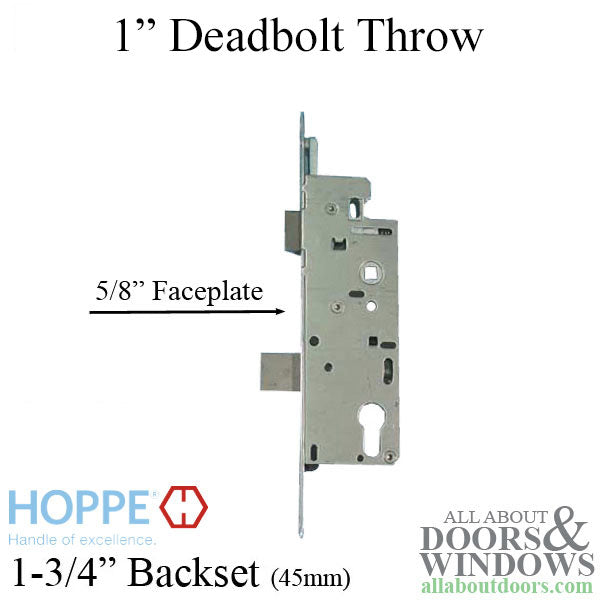

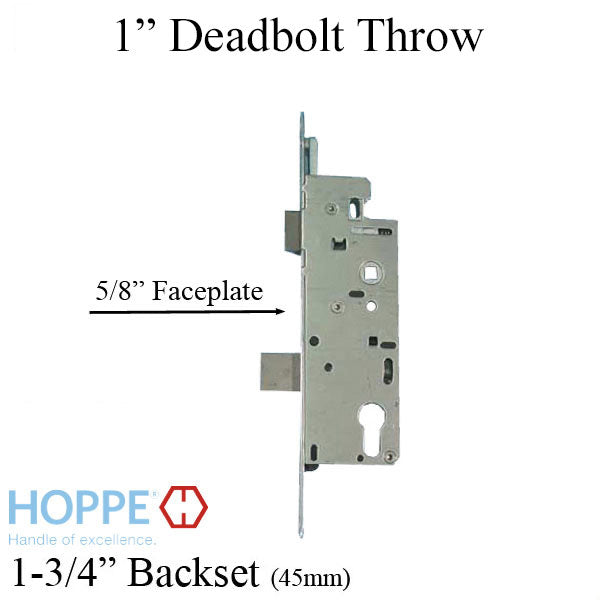

  • Backset: 1-3/4" (45mm)
  • PZ: 92mm (center of key cylinder to center of handle)
  • Deadbolt Throw: 1" (25mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Length: 10-13/16" (275mm)
  • Faceplate Material: Stainless Steel
  • Features rotation limiter (lever is fixed and does not move after door is locked)
  • Latch handing can be reversed using a small screwdriver
  • Compatible with Caradco, Norco, WeatherShield, Biltbest, Shelter doors
  • Replaces FUHR single point locks
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Single Point Mortise Lock – 45/92, 1" Deadbolt (11517499)

This Hoppe single point mortise lock features a 45mm backset and 92mm PZ configuration with a 1-inch deadbolt throw. The lock includes a rotation limiter that keeps the lever fixed in place once the door is locked, providing enhanced security and preventing unauthorized handle manipulation.

Designed with a 16mm stainless steel faceplate measuring 10-13/16 inches in length, this lock offers durable construction for long-lasting performance. The faceplate features radius ends and screw holes spaced at 10-1/8 inches.

This single point lock is compatible with doors from Caradco, Norco, WeatherShield, Biltbest, Shelter, and many other manufacturers. It also serves as a direct replacement for FUHR single point locks.

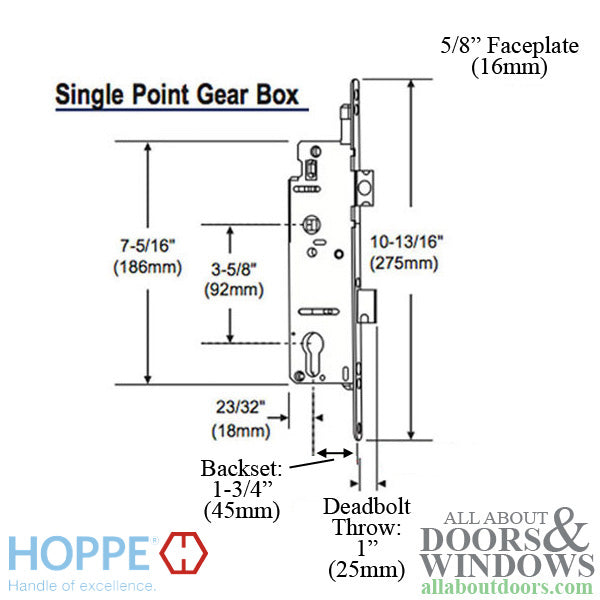

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • PZ: 92mm
  • Deadbolt Throw: 1 inch (25mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Faceplate Length: 10-13/16 inches (275mm)
  • Faceplate Screw Holes: 10-1/8 inches (257mm)
  • Faceplate Material: Stainless Steel
  • Alternative Part Name: IWP-45-92-25

Notes

  • This single point mortise lock CANNOT be used to repair a multipoint lock. There are no interchangeable parts from this lock that can be used on other locks.

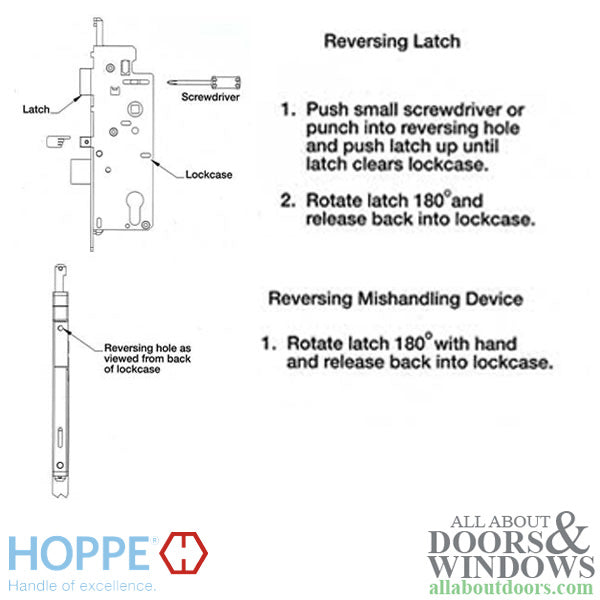

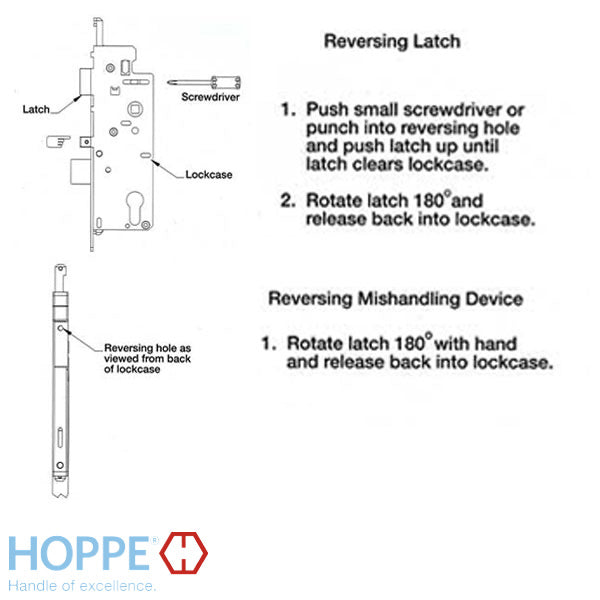

  • Latch handing may be changed by inserting a small screwdriver into the small hole in the back of the latch, pushing forward, twisting the latch, and releasing.

Replaces / Replaced by

  • FUHR Single Point Locks

Related Parts

  • 11517475 - Hoppe Single Point Lock, 35mm backset, 25.4mm deadbolt throw, 16mm faceplate
  • 11517505 - Hoppe Single Point Lock, 60mm backset, 25.4mm deadbolt throw, 16mm faceplate
  • 11517517 - Hoppe Single Point Lock, 70mm backset, 25.4mm deadbolt throw, 16mm faceplate
  • 8785695 - Installation Screw, 1-3/8 inches (35mm), 8mm Head, Stainless Steel
  • 8785687 - Installation Screw, 3/4 inches (20mm), 8mm Head, Stainless Steel

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I use this lock to repair my multipoint lock?

No, this single point mortise lock cannot be used to repair a multipoint lock. There are no interchangeable parts between this lock and multipoint locks.

How do I reverse the latch handing on this lock?

Insert a small screwdriver into the small hole on the back of the latch, push forward, twist the latch to the desired orientation, and release.

What does the rotation limiter feature do?

The rotation limiter keeps the lever handle fixed in place once the door is locked, preventing the handle from moving and providing enhanced security.
