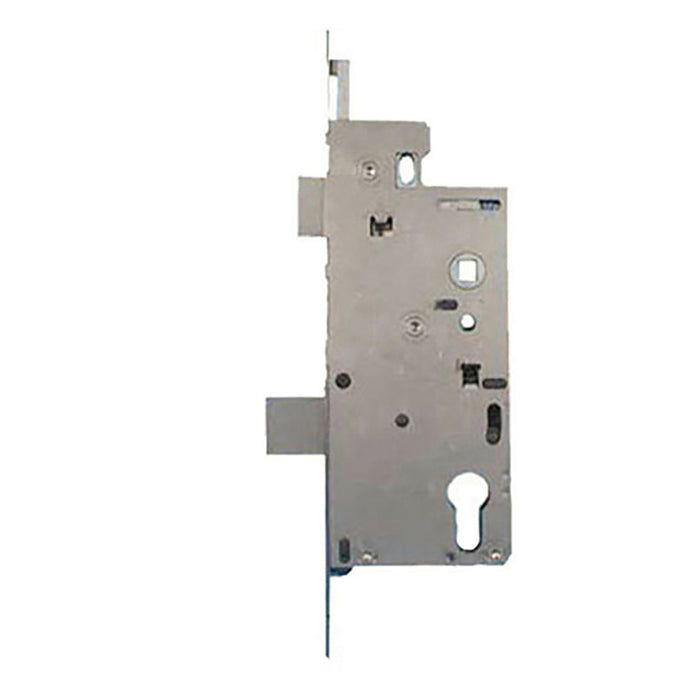

Hoppe Single Point Mortise Lock – 60mm Backset, 92mm PZ, 1" Deadbolt

Hoppe Single Point Mortise Lock – 60mm Backset, 92mm PZ, 1" Deadbolt

SKU 11517505

$110.45 - $110.45
$110.45
$110.45 - $110.45
$110.45

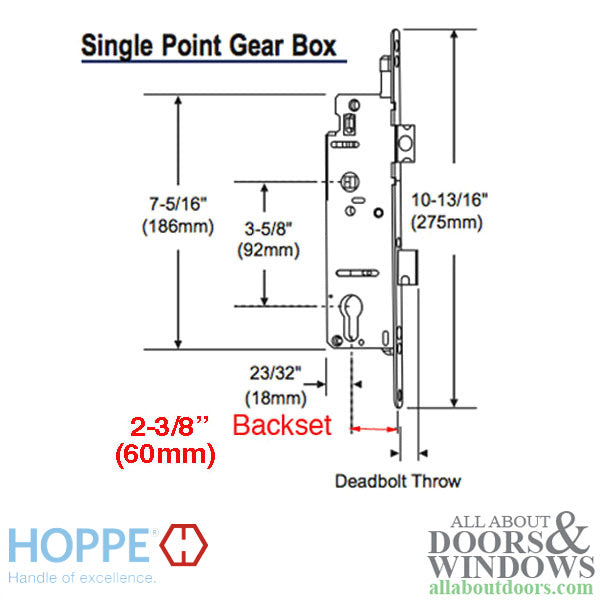

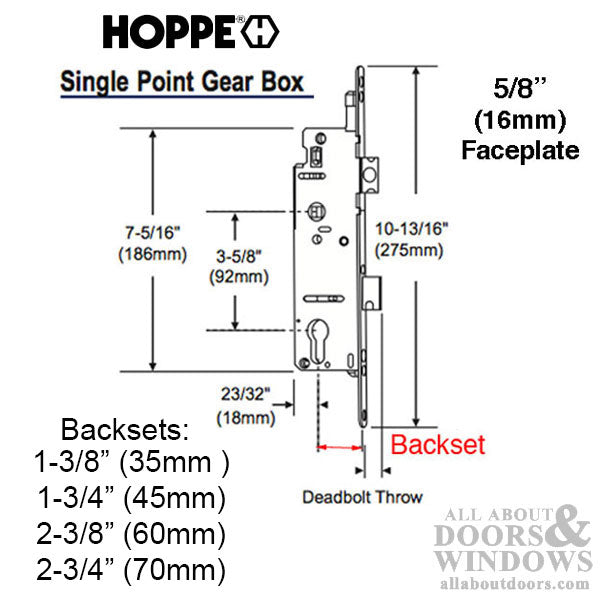

  • Backset: 2-3/8" (60mm)
  • PZ: 92mm (handle center to keyhole center)
  • Deadbolt Throw: 1" (25.4mm)
  • Faceplate: 5/8" (16mm) wide x 10-7/8" (276mm) long, stainless steel with radius ends
  • Faceplate Screw Spacing: 10-1/8" (257mm)
  • Rotation Limiter: Lever is fixed and does not move after door is locked
  • Single point lock only – will NOT work for multipoint lock units
  • Compatible with Caradco, Jeld-Wen, Norco, and others
  • Latch handing can be reversed with a small screwdriver
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Single Point Mortise Lock – 60/92 (11517505)

This Hoppe single point mortise lock features a 2-3/8 inch (60mm) backset and 92mm PZ spacing, making it a reliable replacement for doors manufactured by Caradco, Jeld-Wen, Norco, and other brands using this configuration. The lock includes a 1 inch (25.4mm) deadbolt throw for secure locking.

The stainless steel faceplate measures 5/8 inch (16mm) wide by 10-7/8 inches long with radius ends. Faceplate screw holes are spaced 10-1/8 inches apart.

This lock features a rotation limiter, which means the lever is fixed and does not move after the door is locked. This is a single point lock only and will NOT work as a replacement for multipoint lock body units.

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • PZ: 92mm
  • Deadbolt Throw: 1 inch (25.4mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Faceplate Length: 10-7/8 inches (276mm)
  • Faceplate Style: Radius ends
  • Faceplate Screw Spacing: 10-1/8 inches (257mm)
  • Faceplate Material: Stainless steel
  • Rotation Limiter: Yes

Notes

  • Latch handing can be reversed by inserting a small screwdriver into the hole on the back of the latch, pushing forward, twisting the latch, and releasing
  • Compatible with Caradco, Jeld-Wen, Norco, and similar door brands

Related Parts

  • 11517463 – Hoppe Single Point Lock, 35mm backset, 14mm deadbolt throw
  • 11517475 – Hoppe Single Point Lock, 35mm backset, 25.4mm deadbolt throw
  • 11517487 – Hoppe Single Point Lock, 45mm backset, 14mm deadbolt throw
  • 11517499 – Hoppe Single Point Lock, 45mm backset, 25.4mm deadbolt throw
  • 11517517 – Hoppe Single Point Lock, 70mm backset, 25.4mm deadbolt throw
  • 11517529 – Hoppe Single Point Lock, 35mm backset, 25.4mm deadbolt throw, square ends
  • 8785695 – Installation Screw, 1-3/8 inch (35mm), 8mm head, stainless steel
  • 8785687 – Installation Screw, 3/4 inch (20mm), 8mm head, stainless steel

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I reverse the latch handing on this lock?

Insert a small screwdriver into the hole on the back of the latch, push forward, twist the latch to the desired orientation, and release.

Will this lock work as a replacement for my multipoint lock?

No, this is a single point lock only and will NOT work for replacing the lock body on multipoint lock units.

What does the rotation limiter feature do?

The rotation limiter keeps the lever fixed so it does not move after the door is locked, providing additional security.
