Hoppe Single Point Mortise Lock – 35mm Backset, 1" Deadbolt Throw

SKU: 11517475

$103.58 - $103.58

$103.58

$103.58 - $103.58

$103.58

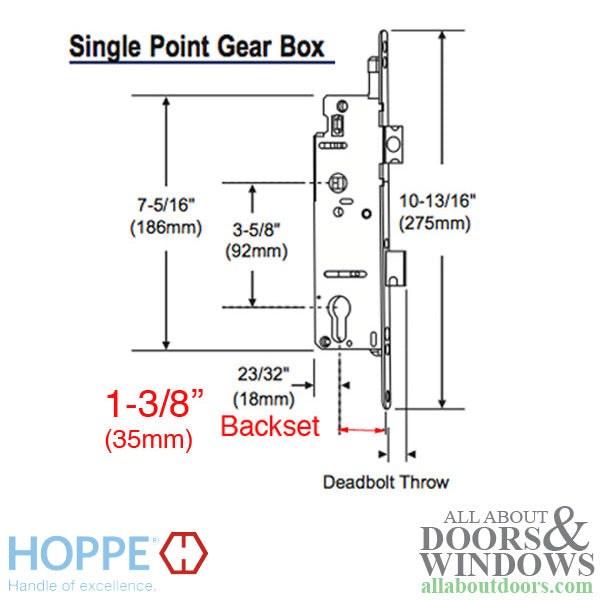

Backset: 1-3/8" (35mm)
Deadbolt Throw: 1" (25mm)
Faceplate: 5/8" (16mm) x 10-7/8" (276mm) with radius ends
Faceplate Screw Holes: 10-1/8" (257mm) apart
Function: Lever is fixed and does not move after door is locked (rotation limiter)
Finish: Stainless steel faceplate
Single point mortise lock – not interchangeable with multipoint lock bodies
Compatible with Caradco, Jeld-Wen, Norco, and other door brands
Latch handing can be reversed in the field
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

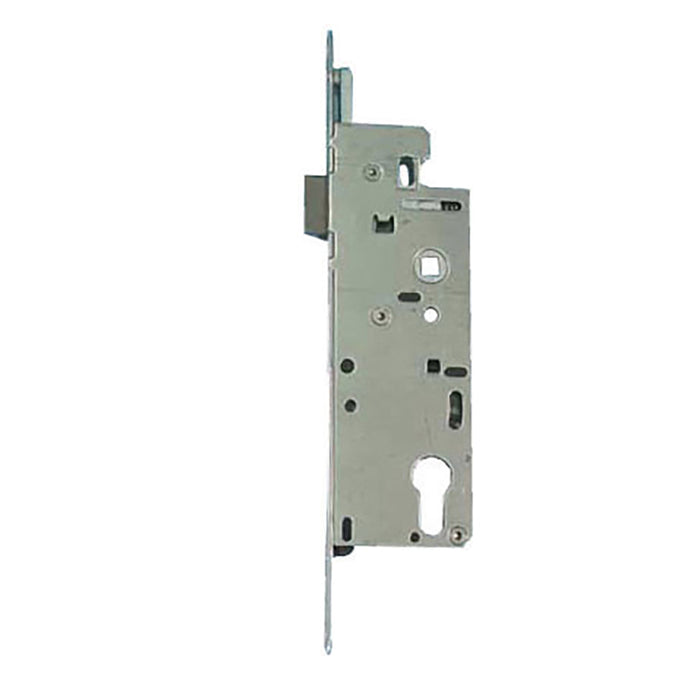

Hoppe Single Point Mortise Lock – 35mm, 1" Throw (11517475)

This Hoppe single point mortise lock features a 1-3/8 inch (35mm) backset and a 1 inch (25mm) deadbolt throw. It is designed for use with entry doors from manufacturers including Caradco, Jeld-Wen, and Norco. This lock also serves as a replacement for FUHR single point locks.

The lock includes a rotation limiter function, meaning the lever becomes fixed and does not move once the door is locked. This provides added security and prevents lever manipulation when the deadbolt is engaged.

The stainless steel faceplate measures 5/8 inch (16mm) wide by 10-7/8 inches (276mm) long with radius ends. Faceplate screw holes are spaced 10-1/8 inches (257mm) apart.

Technical Information

Backset: 1-3/8 inches (35mm)
Deadbolt Throw: 1 inch (25mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Length: 10-7/8 inches (276mm)
Faceplate Style: Radius ends
Faceplate Screw Hole Spacing: 10-1/8 inches (257mm)

Notes

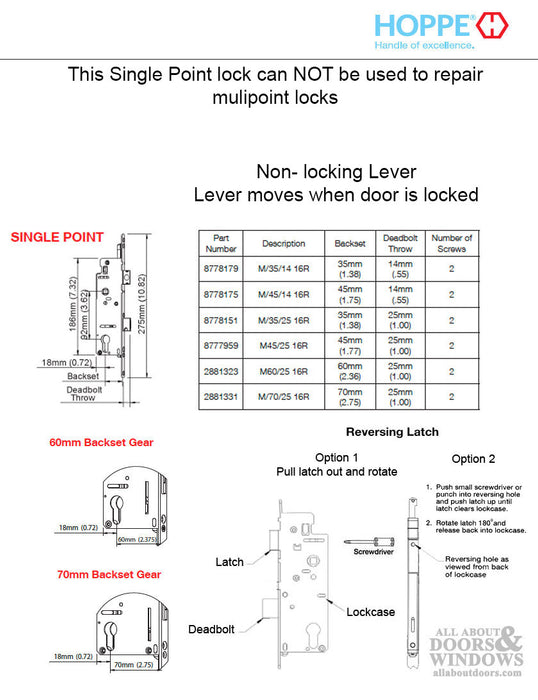

This is a single point lock and is not interchangeable with Hoppe multipoint lock bodies
Cannot be used to repair or provide parts for a multipoint lock

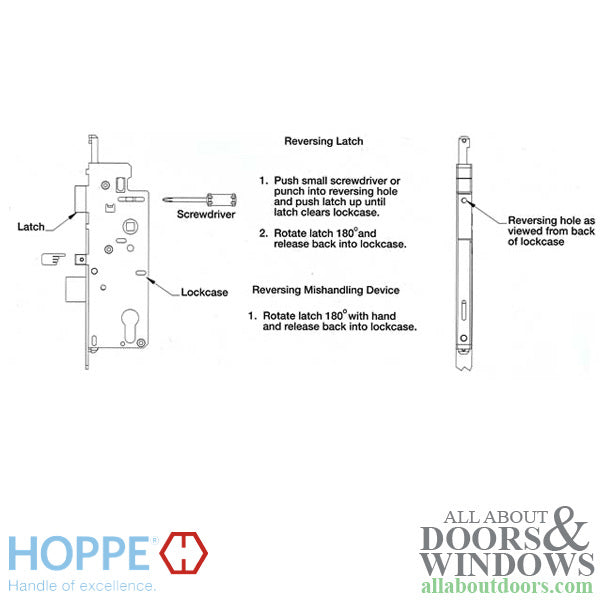

Latch handing can be changed by inserting a small screwdriver into the hole on the back of the latch, pushing forward, twisting the latch, and releasing

Replaces / Replaced by

FUHR single point locks

Related Parts

11517463 – 35mm backset, 14mm deadbolt throw, 16mm faceplate with radius ends
11517487 – 45mm backset, 14mm deadbolt throw, 16mm faceplate with radius ends
11517499 – 45mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517505 – 60mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517517 – 70mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517529 – 35mm backset, 25.4mm deadbolt throw, 16mm faceplate with square ends
8785695 – Installation screw, 1-3/8 inches (35mm), 8mm head, stainless steel
8785687 – Installation screw, 3/4 inch (20mm), 8mm head, stainless steel

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I reverse the latch handing on this lock?

Insert a small screwdriver into the hole on the back of the latch, push forward, twist the latch to the desired orientation, and release.

Can I use this lock to replace a multipoint lock body?

No, this is a single point mortise lock and is not interchangeable with Hoppe multipoint lock bodies or any multipoint lock system.

What is the rotation limiter function?

The rotation limiter keeps the lever fixed and prevents it from moving once the door is locked, providing added security against lever manipulation.
