Hoppe Single Point Mortise Lock – 45mm Backset, 92mm PZ, 16mm Faceplate

Hoppe Single Point Mortise Lock – 45mm Backset, 92mm PZ, 16mm Faceplate

SKU 11517487

$90.79 - $90.79
$90.79
$90.79 - $90.79
$90.79
  • Backset: 1-3/4" (45mm)
  • PZ: 92mm
  • Faceplate Width: 16mm
  • Deadbolt Throw: 0.55" (14mm)
  • Number of Screws: 2
  • Manual single point mortise lock (SPL)
  • Used by Caradco, Norco, WeatherShield, Biltbest, Shelter, and many others
  • Cannot be used to repair a multipoint lock – no interchangeable parts
  • Priced and sold each
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Single Point Mortise Lock – 45/92 (11517487)

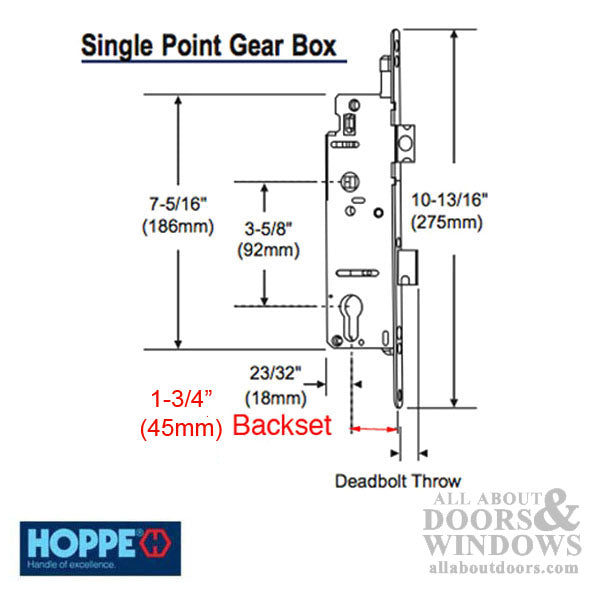

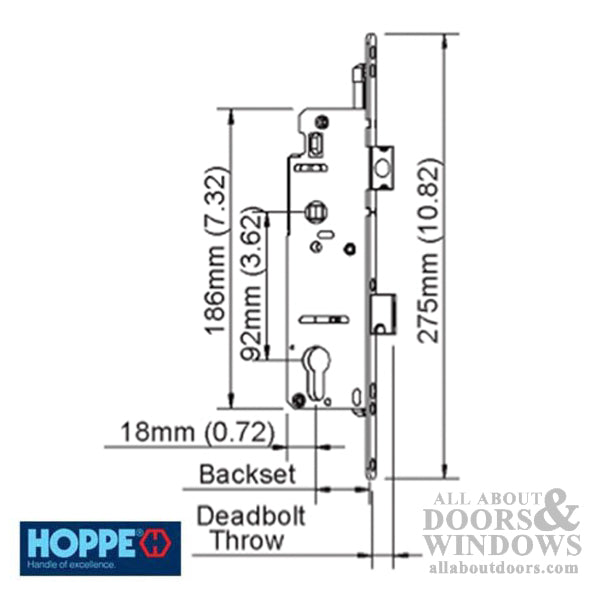

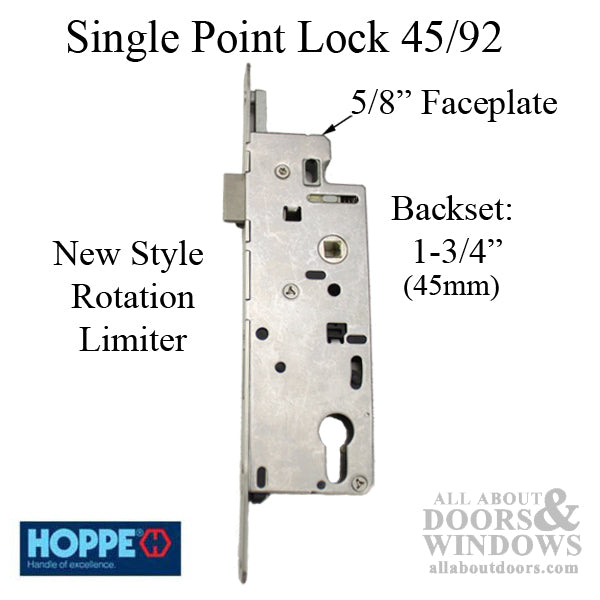

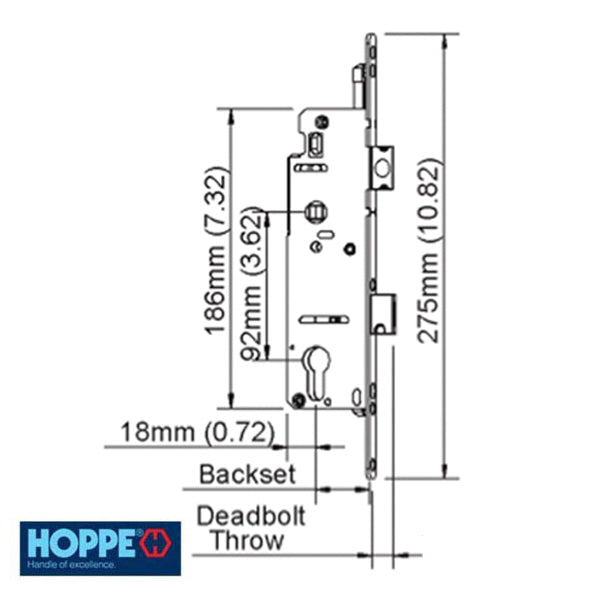

This Hoppe manual single point mortise lock (SPL) features a 45mm backset and 92mm PZ spacing. It includes a 16mm faceplate and a 0.55-inch (14mm) deadbolt throw, secured with 2 screws.

This lock is commonly used by door manufacturers including Caradco, Norco, WeatherShield, Biltbest, and Shelter. It also serves as a replacement for FUHR single point locks.

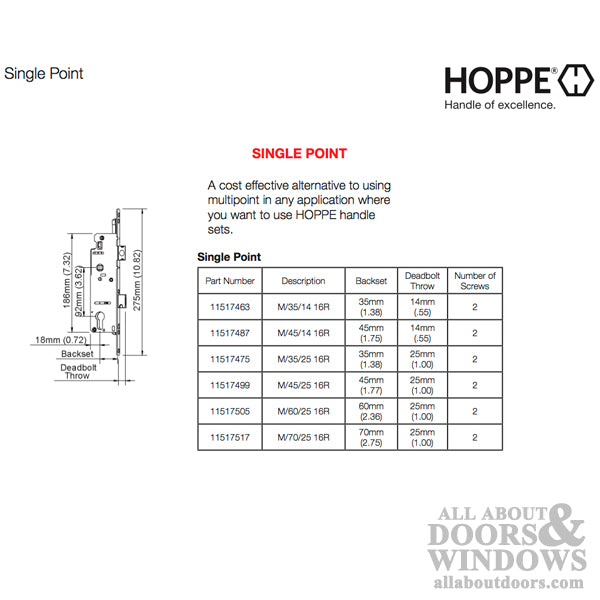

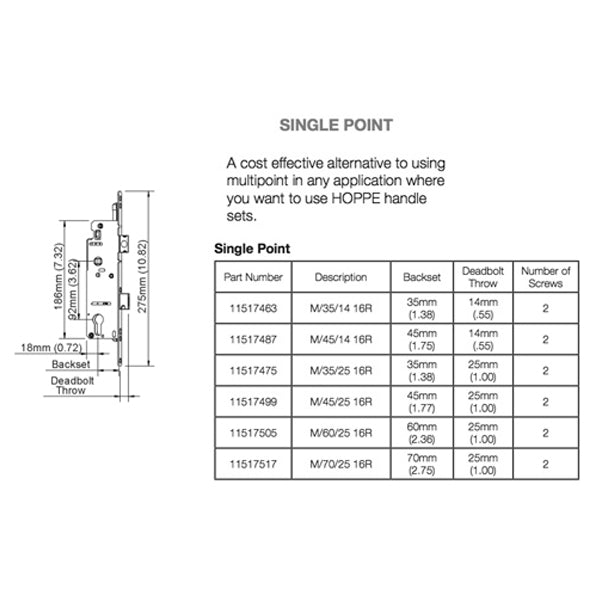

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • PZ: 92mm
  • Faceplate Width: 16mm
  • Deadbolt Throw: 0.55 inches (14mm)
  • Number of Screws: 2

Notes

  • This single point mortise lock cannot be used to repair a multipoint lock
  • No interchangeable parts from this lock can be used on other locks
  • Click here if the deadbolt will not retract

Replaces / Replaced by

  • FUHR Single Point Locks

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I use this lock to repair my multipoint lock?

No, this Hoppe single point mortise lock cannot be used to repair a multipoint lock. There are no interchangeable parts between this lock and multipoint locks.

What does PZ mean on a mortise lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This lock has a 92mm PZ measurement.

How do I measure the backset on my door?

Measure from the edge of the door to the center of the handle bore hole. This lock requires a 1-3/4 inch (45mm) backset.
