Trilennium Active Keyed Handleset Trim – 3000 Series, 6" PZ, Traditional Style

Trilennium Active Keyed Handleset Trim – 3000 Series, 6" PZ, Traditional Style

SKU

$227.42 - $399.67
$227.42
$227.42 - $399.67
$227.42
  • PZ Distance: 6" (152.4mm)
  • Door Thickness: 1-3/4" (45mm)
  • Escutcheon Plate: 1-7/8" x 10" (47.6mm x 254mm)
  • Handle Projection: 2" (50.8mm)
  • Lock Cross Bore: Fits 1-11/16" (42.9mm) bore only
  • Style: Traditional
  • Keyway Options: Schlage C or Weiser
  • Available Colors: Bright Brass, Victorian Bronze, Satin Nickel
  • For active doors with IPD multipoint locks (requires top, bottom, and middle bolts)
  • Keyed handleset trim only – lock and strikes sold separately
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium Active Keyed Lock Trim – 3000 Series (40064)

This Trilennium 3000 Series active keyed handleset trim is designed for use on Peachtree Citadel IPD doors, Pella entry doors with triple latch locks, and W&F and Trilennium multipoint lock systems. The traditional style escutcheon provides a classic look while delivering reliable keyed entry functionality.

This handleset is specifically designed for active doors equipped with IPD multipoint locks that feature bolts at the top, bottom, and middle positions. If your door does not have all three bolt locations, this handleset will not be compatible.

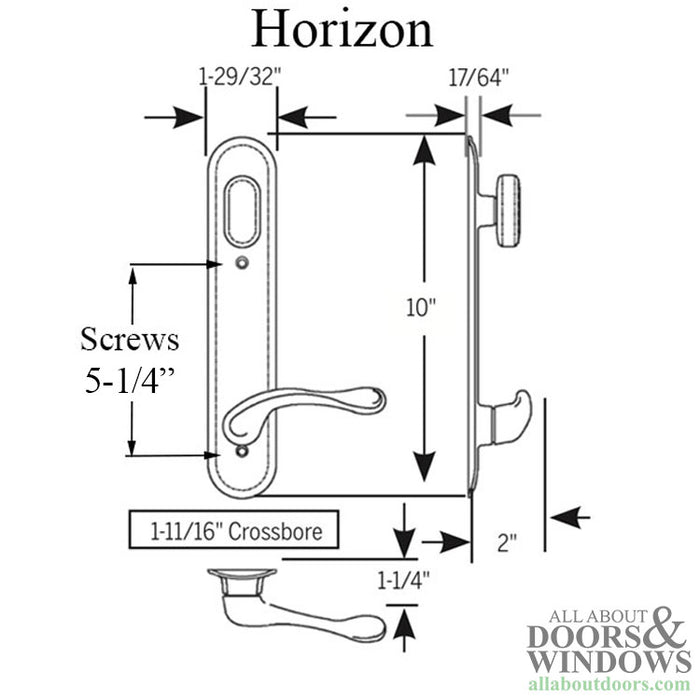

Technical Information

  • PZ Distance (Handle to Cylinder): 6 inches (152.4mm)
  • Door Thickness: 1-3/4 inches (45mm)
  • Escutcheon Plate Width: 1-7/8 inches (47.6mm)
  • Escutcheon Plate Height: 10 inches (254mm)
  • Handle Projection: 2 inches (50.8mm)
  • Lock Cross Bore: Fits 1-11/16 inches (42.9mm)
  • Keyway Options: Schlage C, Weiser
  • Available Colors: Bright Brass, Victorian Bronze, Satin Nickel

Notes

  • This trim fits 1-11/16 inch bore only. Some doors have a 2-1/8 inch bore which is too large for this plate. For 2-1/8 inch bore doors, consider models 40067, 40070, or 40073 which have wider plates.
  • For 2-1/4 inch (57mm) thick doors, order conversion kit 40039-WR (or 40039-SC1 for Schlage keyway).
  • These handlesets work best with newer-style multipoint locks. For older IPD multipoint locks manufactured from the 1980s through 2002, this handleset may not function properly due to bushing design changes. If replacing a handleset on an older IPD lock, we recommend replacing both the lock and handles.

Related Parts

  • 37400109 - Set of 3 Strike Plates (choose color)
  • 40039-WR - Conversion kit for 2-1/4 inch thick doors (Weiser keyway)
  • 40039-SC1 - Conversion kit for 2-1/4 inch thick doors (Schlage keyway)
  • 40067, 40070, 40073 - Handlesets with wider plates for 2-1/8 inch bore

This includes the keyed trim only. No mortise lock or strike plates are included. Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if this handleset will work with my door?

This handleset is designed for active doors with IPD multipoint locks that have bolts at the top, bottom, and middle positions. If your door only has a middle bolt, this handleset will not work.

What bore size does this handleset fit?

This handleset fits doors with a 1-11/16 inch cross bore. If your door has a 2-1/8 inch bore, you will need models 40067, 40070, or 40073 which have wider escutcheon plates.

Will this work with my older IPD multipoint lock?

These handlesets work best with newer-style multipoint locks. For older IPD locks made from the 1980s through 2002, the handleset may not function properly due to bushing design changes. We recommend replacing both the lock and handles in these cases.
