Trilennium Active Keyed Lock – 3000 Series Rectangular Base, 152mm PZ, 1-3/4" Door

Trilennium Active Keyed Lock – 3000 Series Rectangular Base, 152mm PZ, 1-3/4" Door

SKU

$194.84 - $308.14
$194.84
$194.84 - $308.14
$194.84
  • Application: Active door
  • PZ Distance: 6" (152.4mm)
  • Escutcheon Plate: 2-7/16" (61.9mm) wide x 11" (279.4mm) tall
  • Lock Cross Bore: Fits 1-11/16" to 2-1/8" (42.9mm to 54mm)
  • Handle Projection: 2-9/32" (58mm)
  • Door Thickness: 1-3/4" (44.5mm)
  • Style: Traditional
  • Series: 3000 Series Rectangular Base
  • Keyway Options: Schlage C, Weiser
  • Available Colors: Victorian Bronze, Black Powder Coat, Satin Nickel
  • Special order item – cannot be returned or exchanged
  • Delivery may take 4 to 8 weeks
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium Active Keyed Lock – 3000 Series (40070)

The Trilennium Active Keyed Lock from the 3000 Series features a traditional style with a rectangular base escutcheon. Designed for active doors with a 1-3/4 inch thickness, this handleset provides secure keyed entry with a 6 inch PZ distance (handle center to cylinder center).

The escutcheon plate measures 2-7/16 inches wide by 11 inches tall, offering a substantial and elegant appearance. The lock accommodates cross bore sizes from 1-11/16 inches to 2-1/8 inches, with a handle projection of 2-9/32 inches from the door surface.

Technical Information

  • Application: Active Door
  • Style: Traditional
  • Series: 3000 Series Rectangular Base
  • PZ Distance: 6 inches (152.4mm)
  • Escutcheon Plate Width: 2-7/16 inches (61.9mm)
  • Escutcheon Plate Height: 11 inches (279.4mm)
  • Lock Cross Bore: Fits 1-11/16 to 2-1/8 inches (42.9mm to 54mm)
  • Handle Projection: 2-9/32 inches (58mm)
  • Door Thickness: 1-3/4 inches (44.5mm)
  • Keyway Options: Schlage C, Weiser

Notes

  • Available colors: Victorian Bronze, Black Powder Coat, Satin Nickel
  • TriLast finish available in Satin Nickel and Victorian Bronze
  • For 2-1/4 inch doors, order Part 40039-WR instead
  • W&F Trilennium Part Numbers for 1-3/4 inch Door: PINL-ACT-PB-175 (Bright Brass), PINL-ACT-SN-175 (Satin Nickel), PINL-ACT-VB-175 (Victorian Bronze), PINL-ACT-BK-175 (Black Powder Coat), PINL-ACT-SNTL-175 (Satin Nickel TriLast), PINL-ACT-VBTL-175 (Victorian Bronze TriLast)

Related Parts

  • 40039-WR - Trilennium Active Keyed Lock for 2-1/4 inch doors

This is a special order item and cannot be returned or exchanged. Delivery may take 4 to 8 weeks.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What keyway options are available for this lock?

This Trilennium lock is available with Schlage C or Weiser keyway options.

What door thickness does this handleset fit?

This handleset is designed for 1-3/4 inch thick doors. For 2-1/4 inch doors, order Part 40039-WR instead.

What is the PZ distance on this lock?

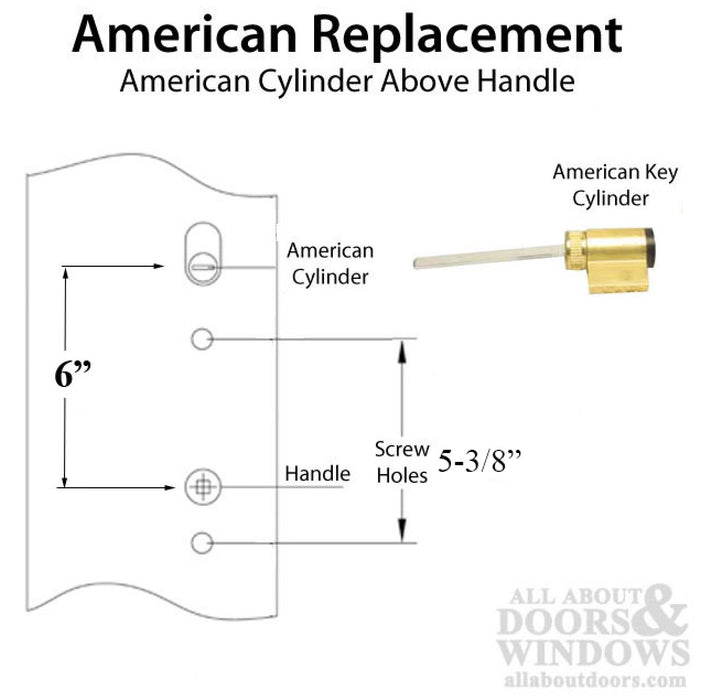

The PZ distance (handle center to cylinder center) is 6 inches (152.4mm).
