Trilennium Active Keyed Lock – 3000 Series Rectangular Base, 1-3/4" Door

Trilennium Active Keyed Lock – 3000 Series Rectangular Base, 1-3/4" Door

SKU

$196.92 - $356.36
$196.92
$196.92 - $356.36
$196.92
  • Application: Active door with keyed entry

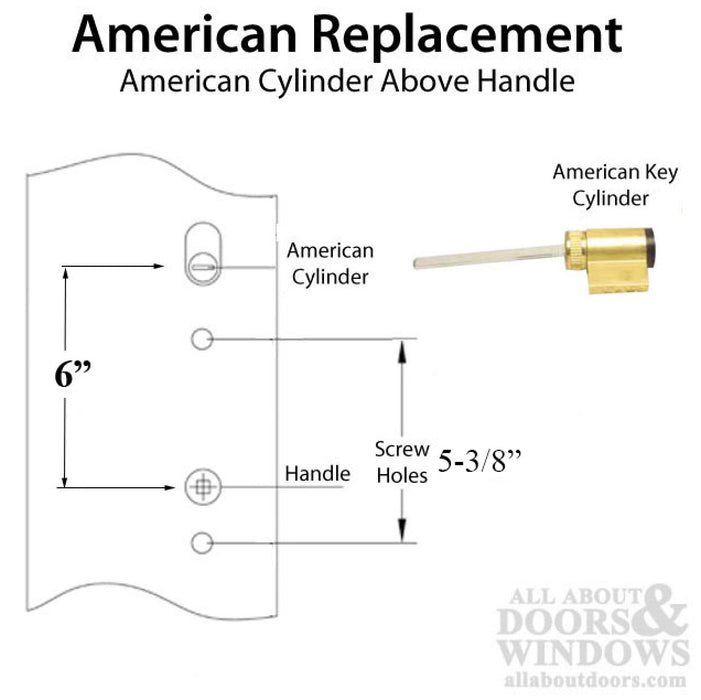

  • PZ (Handle to Cylinder): 6" (152.4mm)
  • Door Thickness: 1-3/4" (44.5mm)

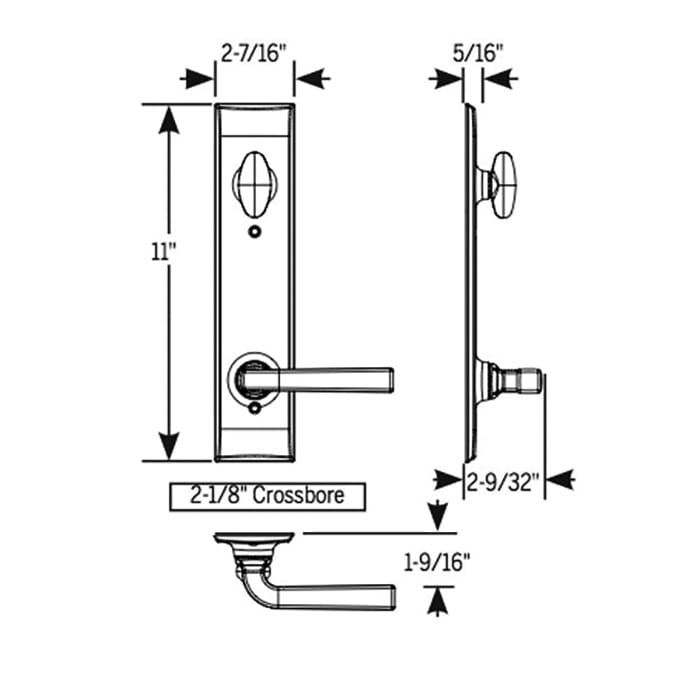

  • Escutcheon Plate: 2-7/16" x 11" (61.9mm x 279.4mm)
  • Handle Projection: 2-9/32" (58mm)
  • Cross Bore: Fits 1-11/16" to 2-1/8" (42.9mm to 54mm)
  • Screw Hole Spacing: 5-3/8" (136.5mm)
  • Keyway Options: Weiser or Schlage C

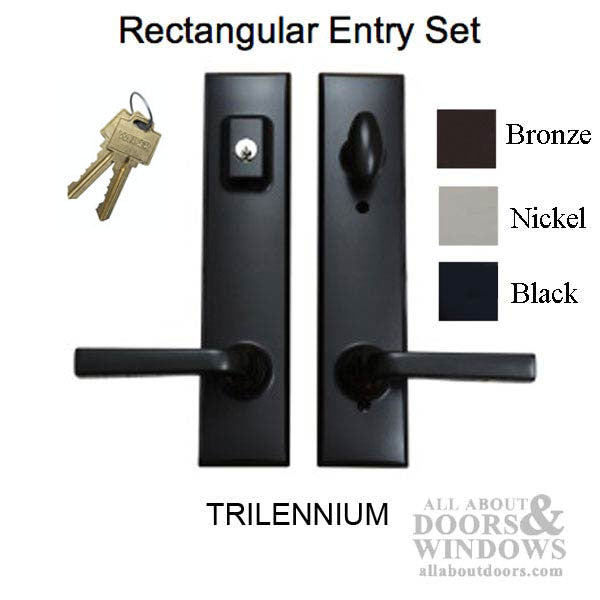

  • Available Colors: Victorian Bronze, Black Powder Coat, Satin Nickel
  • Style: Modern rectangular base (3000 Series)
  • Special order item – non-returnable; delivery may take 4-8 weeks
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium Active Keyed Lock – 3000 Series, 1-3/4" Door (40073)

The Trilennium Active Keyed Lock from the 3000 Series features a modern rectangular base design for active entry doors. This handleset provides keyed entry functionality with a clean, contemporary aesthetic that complements modern door styles.

Designed for 1-3/4 inch thick doors, this lock features a 6-inch PZ measurement (handle to cylinder center distance) and accommodates cross bore holes ranging from 1-11/16 inches to 2-1/8 inches. The escutcheon plate measures 2-7/16 inches wide by 11 inches tall, with a handle projection of 2-9/32 inches from the door surface.

Available in three finish options: Victorian Bronze, Black Powder Coat, and Satin Nickel. TriLast finish versions are also available for enhanced durability in Satin Nickel and Victorian Bronze. The lock accepts either Weiser or Schlage C keyways for cylinder compatibility.

Technical Information

  • PZ (Handle to Cylinder): 6 inches (152.4mm)
  • Door Thickness: 1-3/4 inches (44.5mm)
  • Escutcheon Plate Width: 2-7/16 inches (61.9mm)
  • Escutcheon Plate Height: 11 inches (279.4mm)
  • Handle Projection: 2-9/32 inches (58mm)
  • Cross Bore Range: 1-11/16 inches to 2-1/8 inches (42.9mm to 54mm)
  • Screw Hole Spacing: 5-3/8 inches (136.5mm)
  • Keyway Options: Weiser, Schlage C

Notes

  • For 2-1/4 inch doors, order part 40039-WR instead
  • W&F part numbers by finish: RECL-ACT-PB-175 (Bright Brass), RECL-ACT-SN-175 (Satin Nickel), RECL-ACT-VB-175 (Victorian Bronze), RECL-ACT-BK-175 (Black Powder Coat)
  • TriLast finish options: RECL-ACT-SNTL-175 (Satin Nickel), RECL-ACT-VBTL-175 (Victorian Bronze)

Related Parts

  • 40039-WR - Trilennium Active Keyed Lock for 2-1/4" doors

This is a special order item and cannot be returned or exchanged. Delivery may take 4 to 8 weeks.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What keyway options are available for this lock?

This Trilennium lock accepts either Weiser or Schlage C keyways for cylinder compatibility.

Can I use this lock on a 2-1/4 inch thick door?

No, this model is designed for 1-3/4 inch doors. For 2-1/4 inch doors, order part 40039-WR instead.

What is the PZ measurement and why does it matter?

The PZ measurement is the distance from the center of the handle to the center of the key cylinder, which is 6 inches on this lock. This measurement must match your door prep for proper installation.
