Trilennium Eclipse 3-Point Lock Handle Set – 6" Handle to Key, Active Door

Trilennium Eclipse 3-Point Lock Handle Set – 6" Handle to Key, Active Door

SKU

$187.45 - $351.34
$187.45
$187.45 - $351.34
$187.45

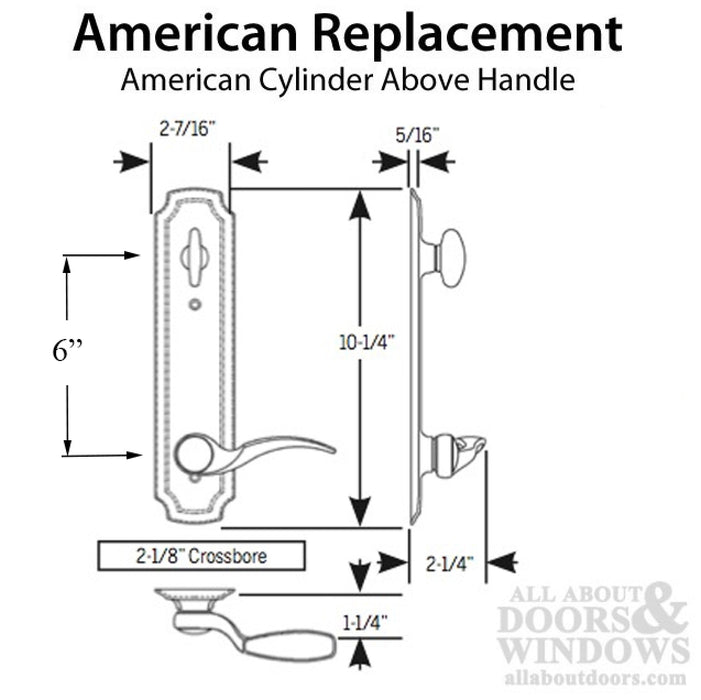

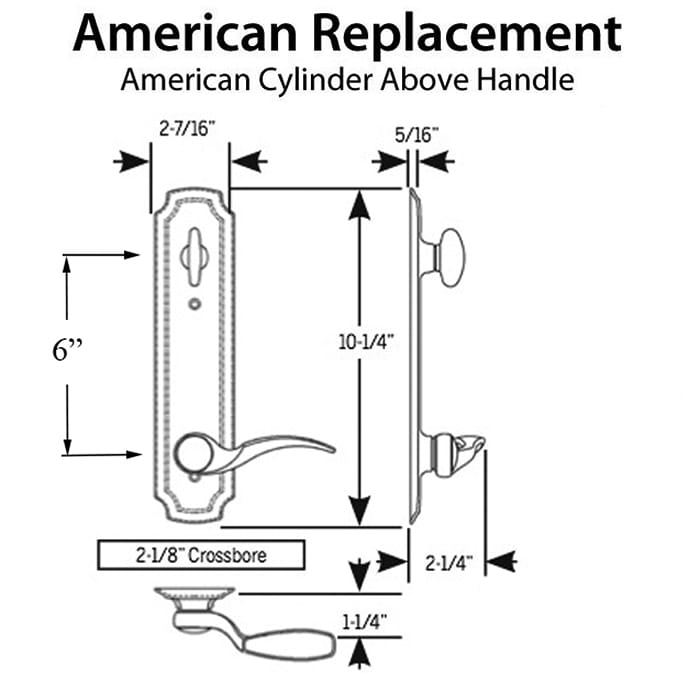

  • Handle to Cylinder Centers: 6" (152.4mm)
  • Function: Active door with key lock
  • Door Thickness: Standard 1-3/4" (45mm)
  • Escutcheon Plate Width: 2-7/16" (61.91mm)
  • Escutcheon Plate Length: 10-1/4" (260.35mm)

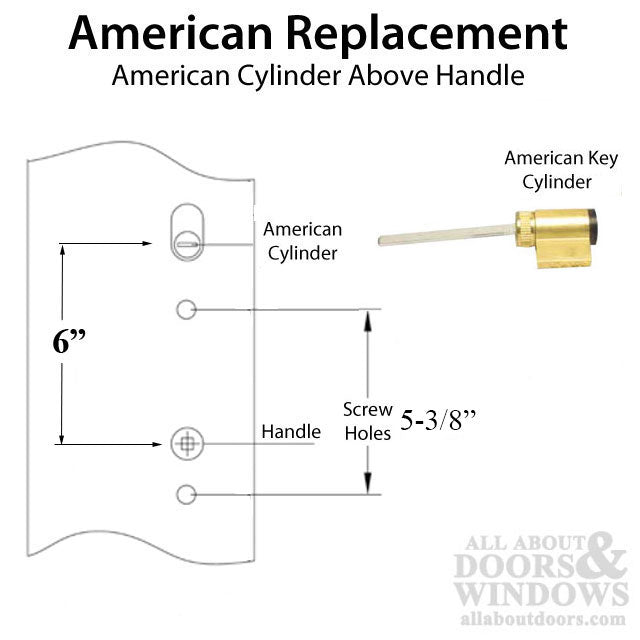

  • Installation Screw Hole Spacing: 5-3/8" (136mm)
  • Keyway Options: Schlage C or Weiser
  • Finishes Available: Polished Brass, Satin Nickel, Black Powder Coat, Victorian Bronze (special order), Lifetime Brushed Satin Nickel (special order)
  • Triple latch system extends into rigid deadbolts for enhanced security
  • Compatible with Peachtree, Pella, and other W & F Hardware doors
  • Does NOT include strike plates or mortise lock body
  • Priced and sold as handle set trim only
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

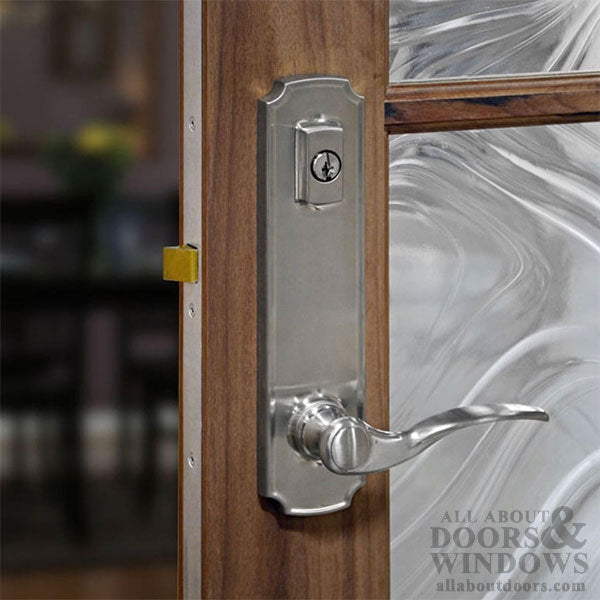

Trilennium Eclipse 3-Point Lock Handle Set (40067)

The Trilennium Eclipse 3-Point Door Lock Handle Set provides enhanced security for multipoint door systems. This handle set features a 6-inch handle-to-key spacing and is designed to work with triple latch systems that extend and lock into rigid deadbolts.

This Eclipse handle set is manufactured exclusively for W & F Hardware and is commonly found on doors from brands like Peachtree and Pella. It is not compatible with other multipoint lock systems outside the W & F family.

Technical Information

  • Function: Active door with key lock
  • Door Thickness: Standard 1-3/4 inches (45mm)
  • Escutcheon Plate Width: 2-7/16 inches (61.91mm)
  • Escutcheon Plate Length: 10-1/4 inches (260.35mm)
  • Handle to Cylinder Centers: 6 inches (152.4mm)
  • Installation Screw Hole Spacing: 5-3/8 inches (136mm)
  • Key Cylinder Options: Standard Weiser (special order), Kwikset Smart Key, or Schlage SC1 5-pin
  • Standard Cross Bore: 1-11/16 inches

Notes

  • For 2-1/4 inch thick doors, order the 2-1/4 inch conversion pack (40039-WR) separately.

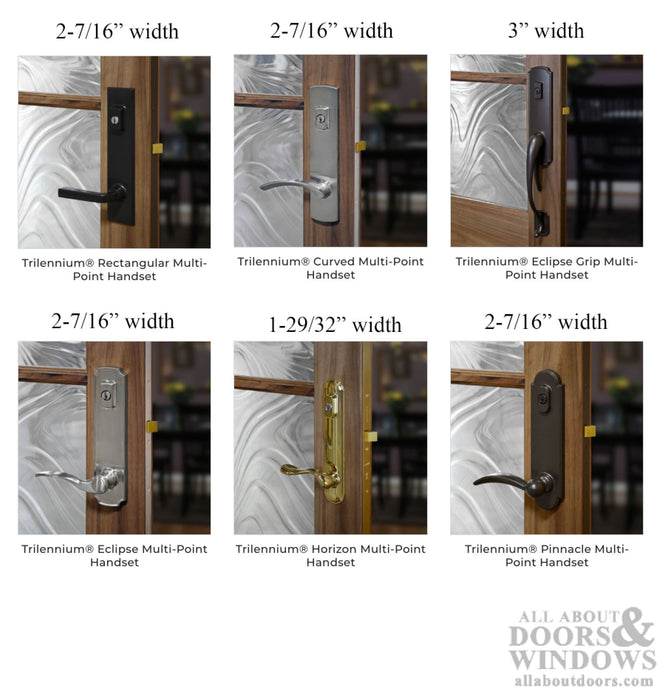

  • This handle set covers the standard 1-11/16 inch cross bore. For doors with a 2-1/8 inch cross bore, consider the Pinnacle, Eclipse Rectangular, or Grip Hardware options.

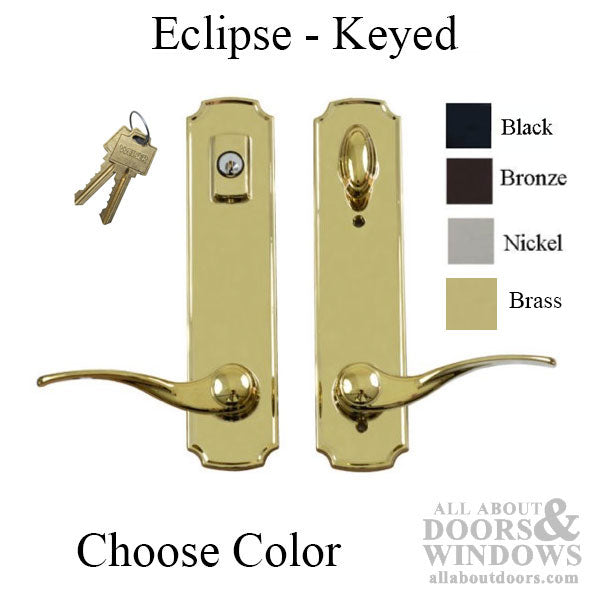

  • Standard finishes: Polished Brass (US3), Satin Nickel (US15), Black Powder Coat (US5P).
  • Special order TriLast PVD finishes available: Lifetime Brushed Satin Nickel, Victorian Bronze.

Related Parts

  • 40039-WR - 2-1/4 inch door conversion pack

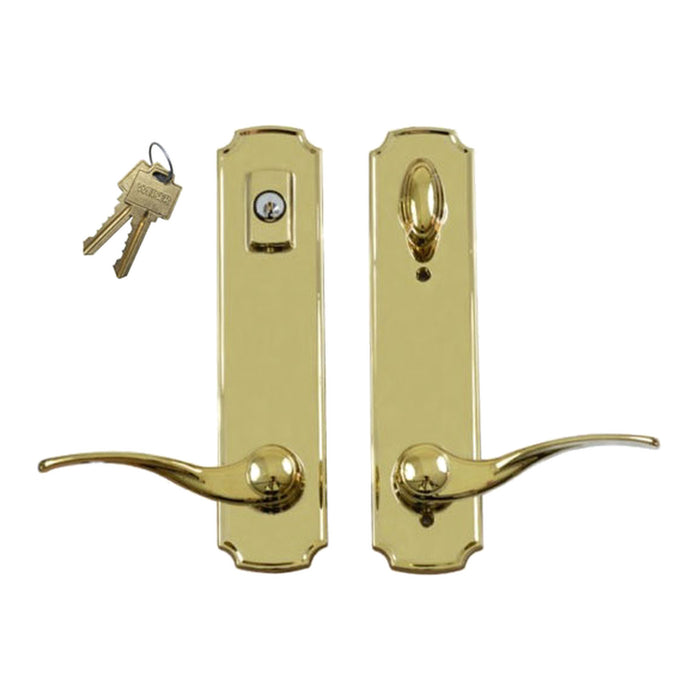

This listing includes the interior and exterior handles and escutcheon plates as shown. Strike plates and mortise lock body are sold separately. Priced and sold as handle set trim only.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this handle set include the mortise lock body?

No, this listing includes only the interior and exterior handles and escutcheon plates. The mortise lock body and strike plates are sold separately.

What key cylinder options are available?

This handle set accepts Schlage SC1 5-pin, Kwikset Smart Key, or Weiser cylinders (Weiser is special order).

Will this fit my 2-1/4 inch thick door?

This handle set is designed for standard 1-3/4 inch doors. For 2-1/4 inch doors, you will need to order the 2-1/4 inch conversion pack (40039-WR) separately.
