Hoppe FUHR Replacement Kit for 77" Eagle Doors – 35mm Backset, 92mm PZ

Hoppe FUHR Replacement Kit for 77" Eagle Doors – 35mm Backset, 92mm PZ

SKU: 4990275-KIT

$314.42 - $314.42
$314.42
$314.42 - $314.42
$314.42
  • Backset: 35mm
  • PZ: 92mm
  • Faceplate Width: 16mm (5/8")
  • Handle Height: 36" (914.4mm)
  • Overall Length: 76.61" to 80.55" (1945.9mm to 2046mm) – croppable
  • Bottom Roller Position: 29.53" (750mm) down from handle
  • Configuration: Bottom roller with top shootbolt (no top roller, no auto-release)
  • Finish: Stainless steel
  • Manual lock – handle must be depressed to activate
  • Replacement kit for discontinued 77" FUHR multipoint locks used on Eagle doors
  • Sold as a complete kit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe FUHR Replacement Kit – 35/92, 77" Eagle Doors (4990275-KIT)

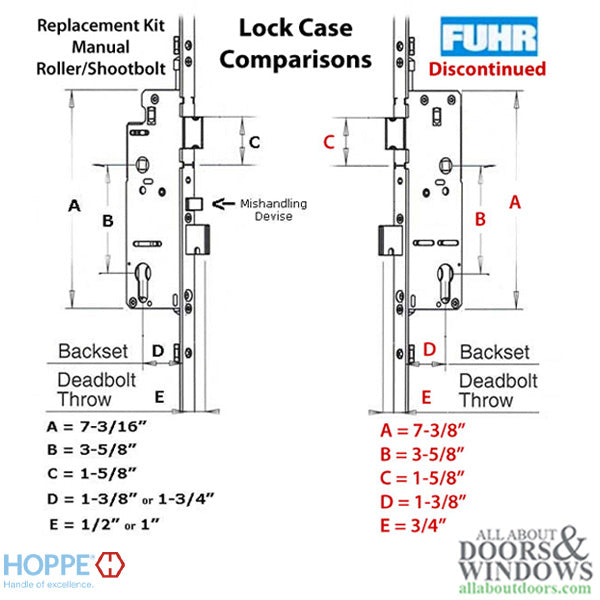

This Hoppe replacement kit is designed specifically for discontinued 77-inch FUHR multipoint locks (parts 499010099, 499010199, and 499010299) used on Eagle doors. The original FUHR locks featured rollers at the top and bottom, with some models including an automatic roller that triggered when the door closed. This kit provides the best replacement solution with minimal installation work required.

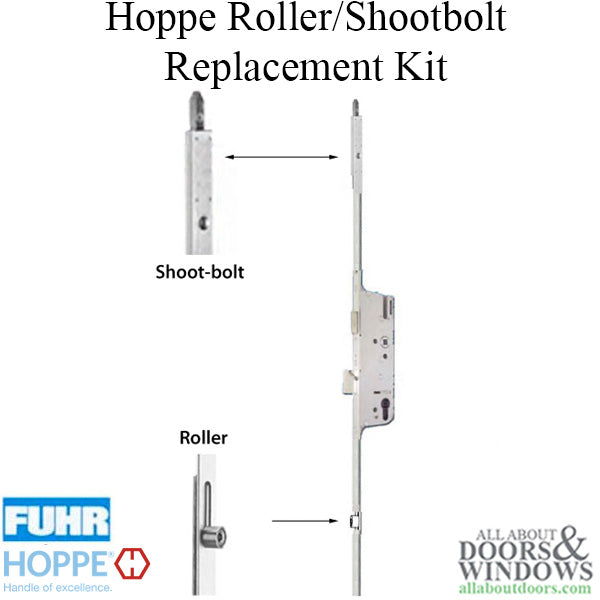

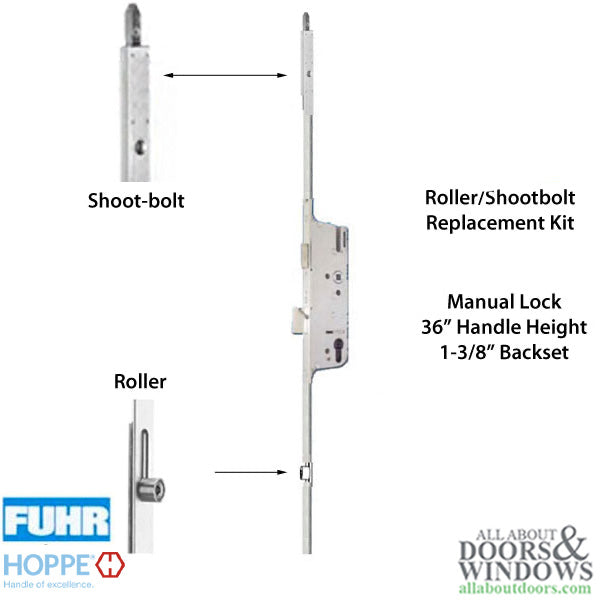

The replacement lock is a 3-piece multipoint system featuring a roller at the bottom and a shootbolt at the top. Unlike the original FUHR, this is a manual lock that requires the handle to be depressed to activate the locking points.

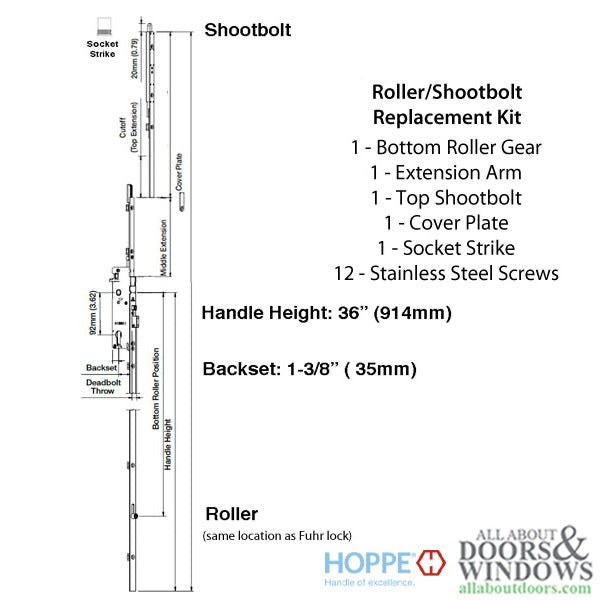

Kit Includes

  • Gear with bottom roller (positioned in same location as original FUHR)
  • Middle extension (can be cut to length)
  • Top shootbolt (attaches to extension arm)
  • Socket strike (easy installation)
  • Cover plate
  • Stainless steel screws

Technical Information

  • Backset: 35mm
  • PZ: 92mm
  • Faceplate Width: 16mm (5/8 inch)
  • Handle Height: 36 inches (914.4mm)
  • Overall Length: 76.61 inches to 80.55 inches (croppable)
  • Bottom Roller Position: 29.53 inches down from handle

Notes

  • No top roller included
  • No auto-release roller – this is a manual lock
  • Handle must be depressed to activate the lock

Replaces / Replaced by

Additional Resources

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this replacement lock work exactly like my original FUHR lock?

This replacement uses a bottom roller and top shootbolt instead of the original dual roller design. It is a manual lock, so you must depress the handle to activate the locking points – there is no automatic feature.

Do I need to modify my door to install this kit?

This kit is designed for minimal modification. The bottom roller is positioned in the same location as the original FUHR, and the middle extension can be cut to length. A socket strike is included for easy installation.

Can the handing be changed on this lock?

Yes, Hoppe multipoint locks can be rehanded. Video instructions are available showing how to change the handing on Hoppe multipoint locks.
