Fuhr Automatic 3 Roller Multipoint Lock – 35mm Backset, 36" Handle Height

Fuhr Automatic 3 Roller Multipoint Lock – 35mm Backset, 36" Handle Height

SKU: 499010099

  • Backset: 1-3/8" (35mm)
  • Handle Height: 36" (914mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Color: Yellow dichromate (gold)
  • Overall Faceplate Length: Approximately 77" (1956mm)
  • Configuration: 3 rollers – 1 auto release, 2 locking
  • Auto Release Roller Position: 7-1/4" (184mm)
  • Bottom Roller Locked Position: 29-1/2" (750mm)
  • Top Roller Locked Position: 36" (914mm)
  • Status: Discontinued – replacement options available
This product has been discontinued and is no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Fuhr Automatic 3 Roller Multipoint Lock (499010099)

This Fuhr Automatic 3 Roller Multipoint Lock features a three-roller configuration with one auto-release roller and two locking rollers. The lock has a 1-3/8 inch (35mm) backset and a 36 inch (914mm) handle height, with a yellow dichromate (gold) faceplate measuring 5/8 inch (16mm) wide and approximately 77 inches in overall length.

The auto-release roller is positioned at 7-1/4 inches (184mm), the bottom locking roller at 29-1/2 inches (750mm), and the top locking roller at 36 inches (914mm) from the bottom of the faceplate.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • Handle Height: 36 inches (914mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Faceplate Color: Yellow dichromate (gold)
  • Overall Faceplate Length: Approximately 77 inches (1956mm)
  • Auto Release Roller Position: 7-1/4 inches (184mm)
  • Bottom Roller Locked Position: 29-1/2 inches (750mm)
  • Top Roller Locked Position: 36 inches (914mm)

Notes

This item has been discontinued. Two replacement options are available:

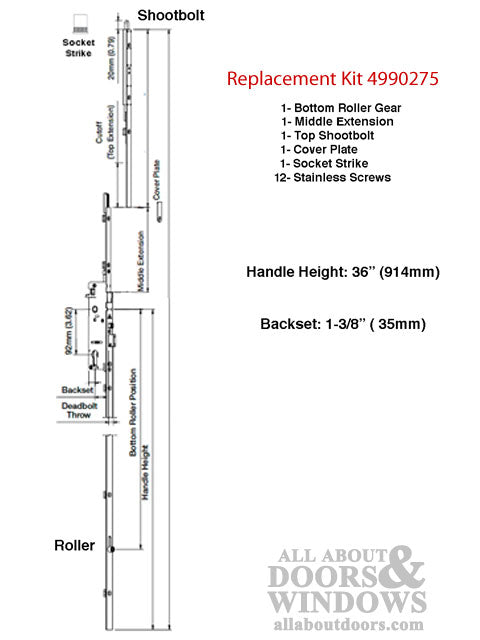

  • Option 1 – 4990275: Hoppe system with roller on bottom and shootbolt on top. This is the easiest replacement option. The top extension fits doors from 76.61 to 80.55 inches tall and will need to be cut to length. Kit includes bottom gear, middle extension, top shootbolt, socket strike, and stainless steel installation screws.
  • Option 2 – 4990204: Hoppe system with 2 rollers. This replacement is more complex and involves moving strikes on the door jamb. Fits doors from 75.79 to 85.63 inches tall and will need to be cut to length. Kit includes bottom gear, top extension, and stainless steel installation screws.

Replaces / Replaced by

  • 4990275 – Hoppe Roller/Shootbolt Replacement Kit (easiest option)
  • 4990204 – Hoppe 2 Roller Replacement Kit (requires moving strikes)

Discontinued item.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What are my replacement options for this discontinued Fuhr lock?

Two Hoppe replacement kits are available: 4990275 (roller/shootbolt system, easiest installation) or 4990204 (2 roller system, requires moving door jamb strikes).

How do I measure my backset?

Measure from the edge of the door to the center of the handle bore hole. This lock has a 1-3/8 inch (35mm) backset.

Will I need to modify the replacement lock to fit my door?

Yes, both replacement options will need to be cut to length to fit your specific door height.
