Fuhr 2 Roller Automatic Multipoint Lock – 35mm Backset, 37" Handle Height (Discontinued)

SKU: 499010299

Backset: 1-3/8" (35mm)
Faceplate Width: 5/8" (16mm)
Handle Height: 37" (939.8mm)
Deadbolt Throw: 25/32" (20mm)
Bottom Roller Position: 29.53" (750mm) down from handle
Top Roller Position: 28.74" (730mm) up from handle
Overall Length: Approximately 77" (1955.8mm)
2 roller automatic locking version
Used on SNE, Vetter, and Crestline doors
Status: Discontinued - Replacement options available

This product has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Fuhr 2 Roller Multipoint Lock – 37" Handle Height (499010299)

This Fuhr 2 roller automatic multipoint lock was designed for use on SNE, Vetter, and Crestline doors. Featuring a 1-3/8 inch (35mm) backset and 5/8 inch (16mm) faceplate width, this lock provides automatic locking when the door is closed. The handle height measures 37 inches from the bottom of the lock.

The bottom roller is positioned 29.53 inches down from the handle, while the top roller sits 28.74 inches up from the handle. The deadbolt throw measures 25/32 inch (20mm), and the overall lock length is approximately 77 inches, though this may vary depending on the specific door and manufacturer.

Technical Information

Backset: 1-3/8 inches (35mm)
Faceplate Width: 5/8 inch (16mm)
Handle Height: 37 inches (939.8mm)
Deadbolt Throw: 25/32 inch (20mm)
Bottom Roller Position: 29.53 inches down from handle
Top Roller Position: 28.74 inches up from handle
Overall Length: Approximately 77 inches
Locking Type: Automatic (locks when door closes)

Notes

This item is discontinued. Two replacement options are available below.
Compatible with SNE, Vetter, and Crestline doors
Latch handing can be changed. See article: How to Change the Handing on a Fuhr Lock

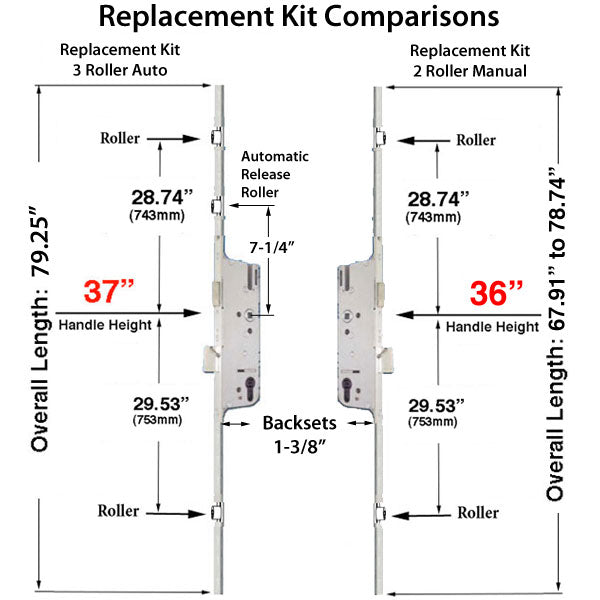

Replacement Options

4990200 - Hoppe roller-style multipoint lock: Easiest replacement option. Same roller positions as original Fuhr lock, so roller strikes will not need to be moved. Deadbolt strike will need to be moved or modified. Fits locks from 67.91 inches to 78.75 inches and may need trimming with a hacksaw.
4990275 - Hoppe roller/shootbolt multipoint lock: Same bottom roller position as original. Top roller strike will be left unused. Deadbolt strike will need to be moved or modified. Fits locks from 76.61 inches to 80.55 inches and may need trimming. Requires drilling a hole for socket strike in top of door jamb.

Both replacement kits are designed for 36 inch handle height. When used as a replacement for this 37 inch Fuhr lock, the metal faceplate will be 1 inch shorter, leaving a gap at the bottom of the door panel. This gap can usually be filled with the cutoff from the top extension. Both replacements operate manually and will not automatically lock when the door is closed like the original Fuhr lock.

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What are the replacement options for this discontinued Fuhr lock?

Two Hoppe replacement kits are available: the 4990200 roller-style lock (easiest replacement with matching roller positions) or the 4990275 roller/shootbolt lock. Both require some modifications to the door jamb strikes.

Will the replacement locks automatically lock like the original Fuhr?

No, both Hoppe replacement options operate manually. The automatic locking feature of the original Fuhr lock is not available with these replacements.

How do I change the latch handing direction on a Fuhr lock?

The latch handing can be changed to reverse the slope direction. Refer to the article 'How to Change the Handing on a Fuhr Lock' for detailed instructions.
