Hoppe 2-Hook Sliding Door Multipoint Lock – 30mm Backset, 20mm Faceplate

Hoppe 2-Hook Sliding Door Multipoint Lock – 30mm Backset, 20mm Faceplate

SKU 2184018

$174.38 - $174.38
$174.38
$174.38 - $174.38
$174.38

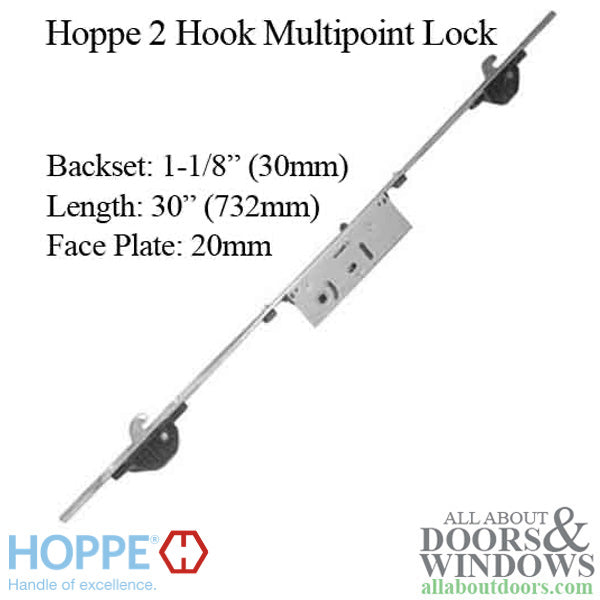

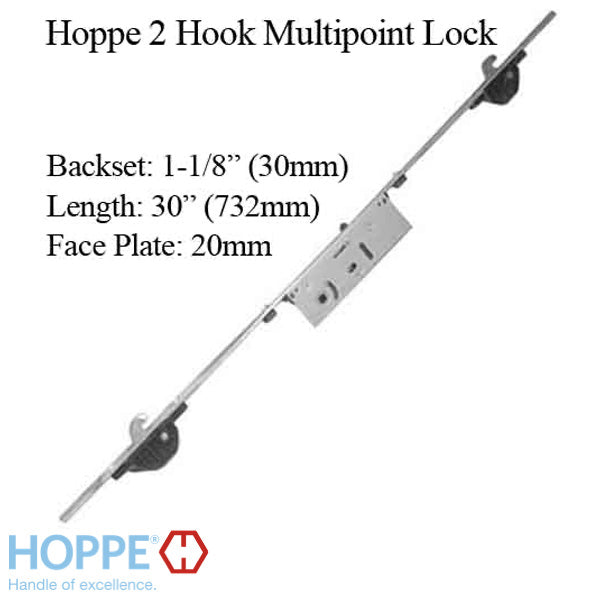

  • Backset: 1-1/8" (30mm)
  • Faceplate: 3/4" (20mm) wide x 30" (762mm) long
  • Locking Points: Two hooks (one above handle, one below)
  • Hook Centers: 21-1/4" (539.8mm)
  • Cylinder: American cylinder above handle
  • Spindle: 7mm
  • Lock Function: Manual locking with key or thumbturn
  • Compatible with most sliding patio doors and wood doors
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe 2-Hook Sliding Door Lock – 30mm Backset, 20mm Face (2184018)

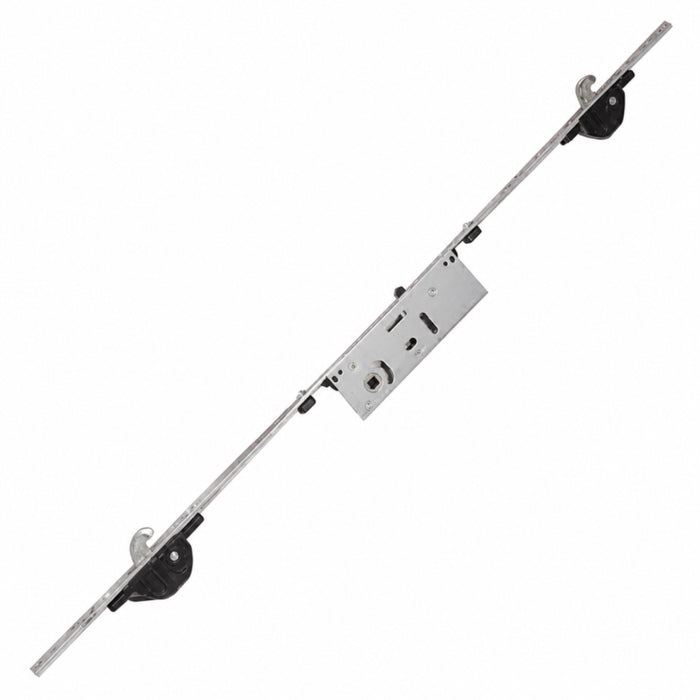

This Hoppe Multipoint Lock is designed for sliding patio doors and features a 2-point locking system with hooks above and below the handle. The lock can be retrofitted to most wood doors, making it a versatile replacement option for upgrading your sliding door security.

The lock operates manually—when the door is closed, a black tab on the faceplate is depressed, allowing the handle to turn and extend both hooks. The outside key or inside thumbturn secures the door in the locked position.

Technical Information

  • Backset: 1-1/8 inches (30mm)
  • Faceplate Width: 3/4 inches (20mm)
  • Faceplate Length: 30 inches (762mm)
  • Hook Centers: 21-1/4 inches (539.8mm)
  • Spindle Size: 7mm
  • Cylinder Type: American cylinder (above handle)
  • Locking Points: 2 hooks

Related Parts

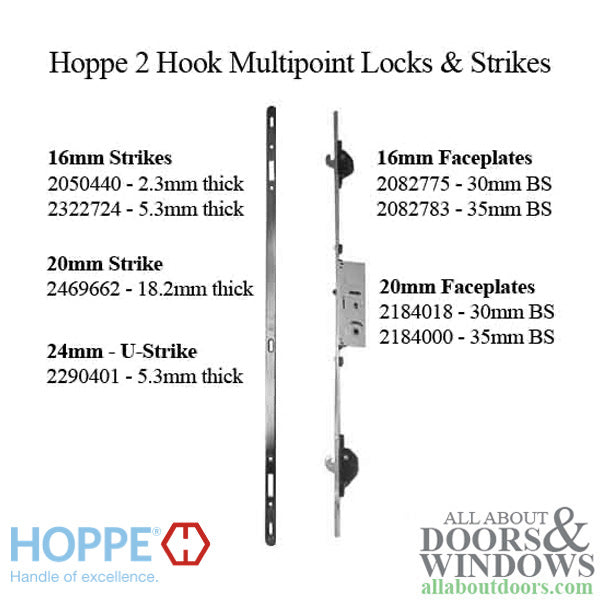

  • 5/8 inch (16mm) Faceplate Options:
    • 2082775 - 2-point sliding door lock, 1-1/8 inch (30mm) backset
    • 2082783 - 2-point sliding door lock, 1-3/8 inch (35mm) backset
  • 25/32 inch (20mm) Faceplate Options:
    • 2184018 - 2-point sliding door lock, 1-1/8 inch (30mm) backset
    • 2184000 - 2-point sliding door lock, 1-3/8 inch (35mm) backset

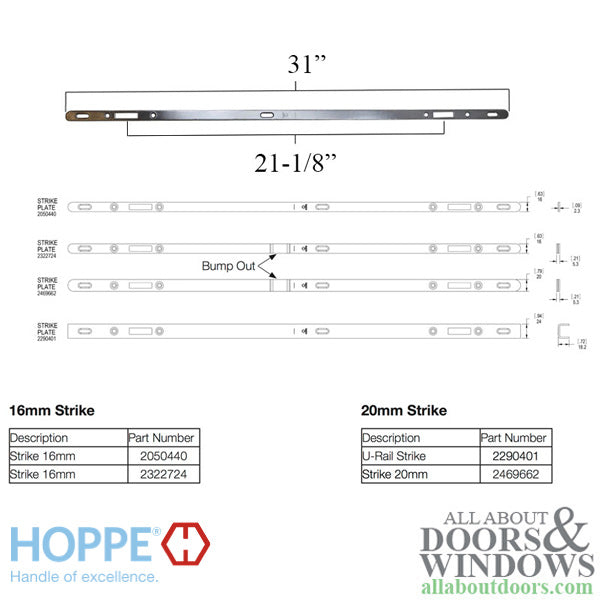

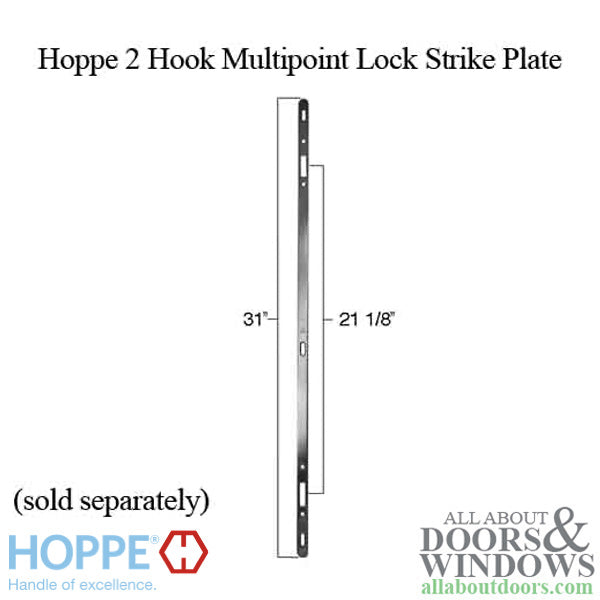

  • Strike Plates:
    • 2050440 - Flat strike, 16mm wide, 2.3mm thick
    • 2322724 - Flat strike, 16mm wide, 5.3mm thick
    • 2469662 - Flat strike, 20mm wide, 18.2mm thick
    • 2290401 - U-strike, 24mm wide, 5.3mm thick
  • Hardware:
    • 8785699 - 45mm wood chipboard screw (#8 x 1-3/4 inch recommended)
  • Handleset Trim Options:

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

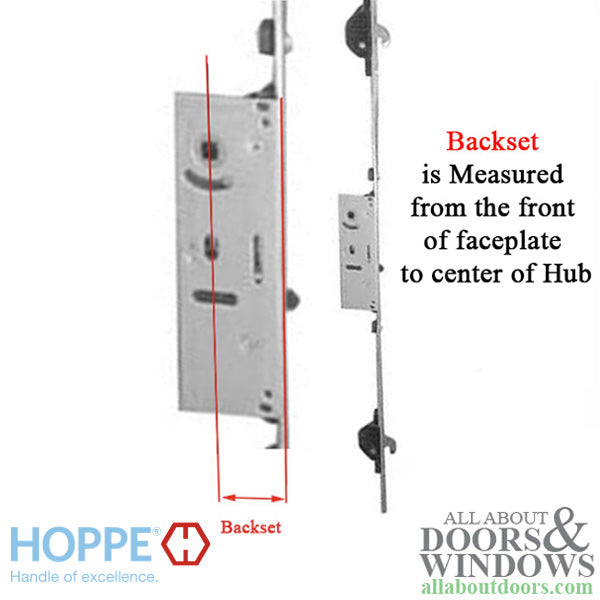

How do I measure the backset on my sliding door lock?

Measure from the edge of the door (or lock faceplate) to the center of the handle bore hole. This lock has a 1-1/8 inch (30mm) backset.

How does the locking mechanism work on this lock?

When the door is closed, a black tab on the faceplate is depressed. Turn the handle to extend both hooks, then use the outside key or inside thumbturn to secure the lock.

Can this lock be installed on my existing sliding patio door?

This lock works on most sliding patio doors and can be retrofitted to most wood doors. Verify your faceplate width (20mm) and backset (30mm) measurements match before ordering.
