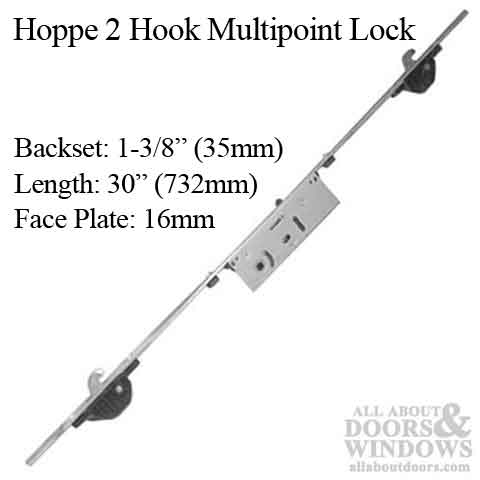

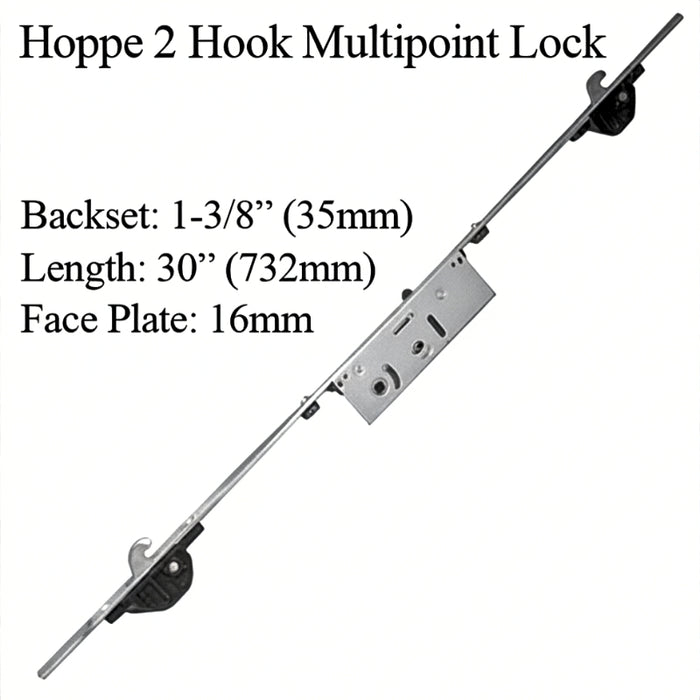

Hoppe Sliding Door Multipoint Lock – 35mm Backset, 16mm Faceplate

Hoppe Sliding Door Multipoint Lock – 35mm Backset, 16mm Faceplate

SKU 2082783

$161.62 - $161.62
$161.62
$161.62 - $161.62
$161.62
  • Backset: 1-3/8" (35mm)
  • Faceplate: 5/8" (16mm) wide x 30" (762mm) long
  • Hook Centers: 21-1/8" (536.6mm)
  • Spindle: 7mm
  • Locking Points: Two hooks (one above handle, one below)
  • Lock Function: Manual locking with key or thumbturn
  • Retrofits most wood sliding patio doors
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Sliding Door Multipoint Lock – 35mm Backset (2082783)

This Hoppe sliding door multipoint lock features a 2-point locking system designed for sliding patio doors. The lock can be retrofitted to most wood doors, making it a versatile replacement option for upgrading your sliding door security.

The lock operates with a manual locking function. When the door is closed, a black tab on the face of the lock is depressed, allowing the handle to be turned to extend two hooks. The outside key or inside thumbturn secures the door in the locked position.

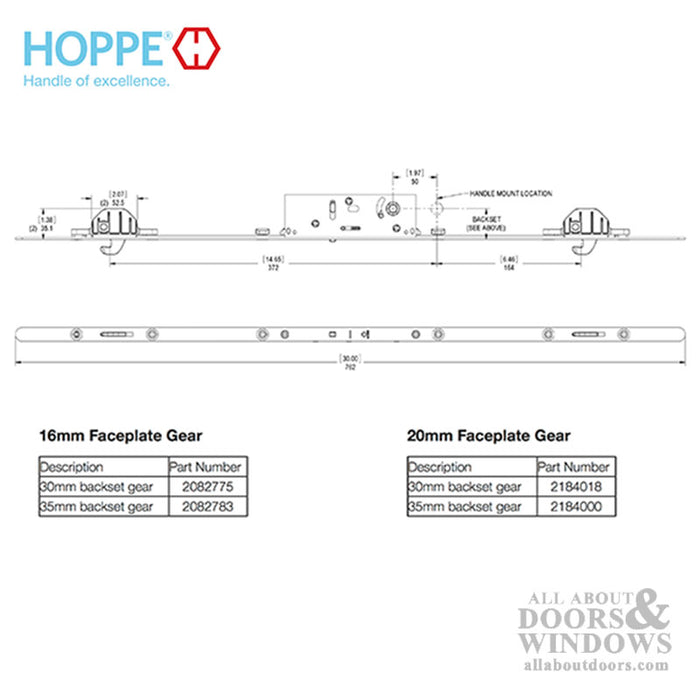

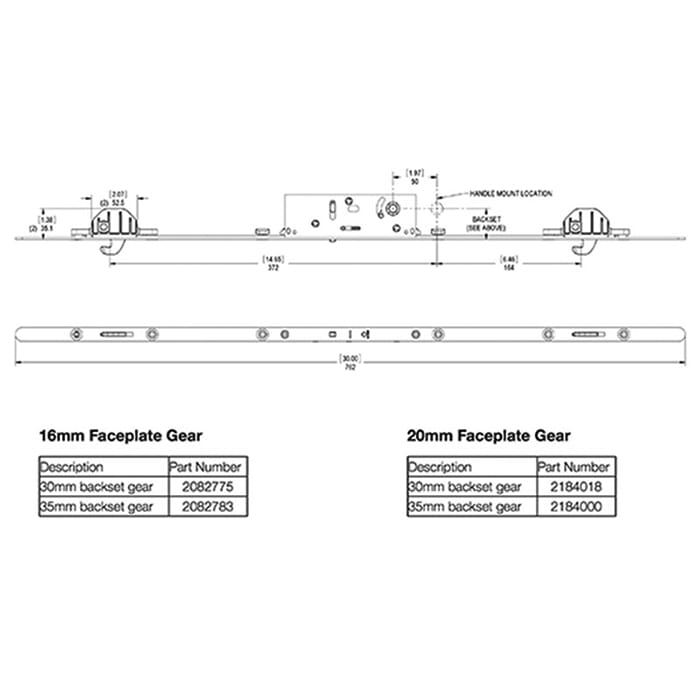

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Faceplate Length: 30 inches (762mm)
  • Hook Centers: 21-1/8 inches (536.6mm)
  • Spindle Size: 7mm
  • Locking Points: 2 hooks

Related Parts

  • 5/8 inch (16mm) Faceplate Locks:
    • 2082775 - 2 point Sliding door Lock, 1-1/8 inch (30mm) Backset
    • 2087783 - 2 point Sliding door Lock, 1-3/8 inch (35mm) Backset
  • 25/32 inch (20mm) Faceplate Locks:
    • 2184018 - 2 point Sliding door Lock, 1-1/8 inch (30mm) Backset
    • 2184000 - 2 point Sliding door Lock, 1-3/8 inch (35mm) Backset

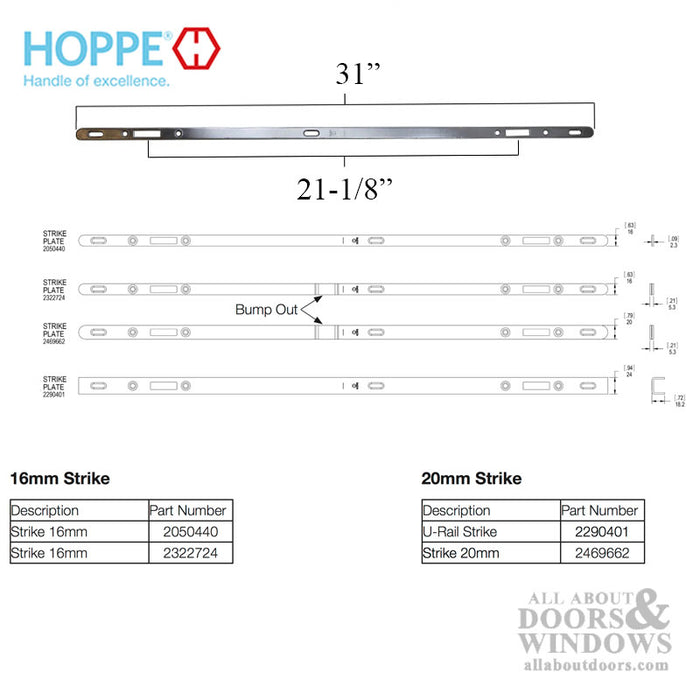

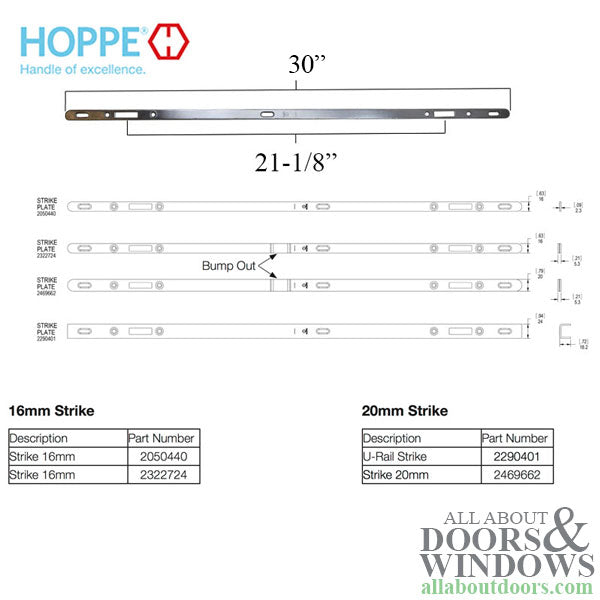

  • Strike Plates:
    • 2050440 - Flat Strike, 16mm wide, 2.3mm thick
    • 2322724 - Flat Strike, 16mm wide, 5.3mm thick
    • 2469662 - Flat Strike, 20mm wide, 18.2mm thick
    • 2290401 - U-Strike, 24mm wide, 5.3mm thick
  • Hardware:
    • 8785699 - 45mm Wood Chipboard Screw (#8 x 1-3/4 inch recommended)
  • Handleset Trim Options:

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

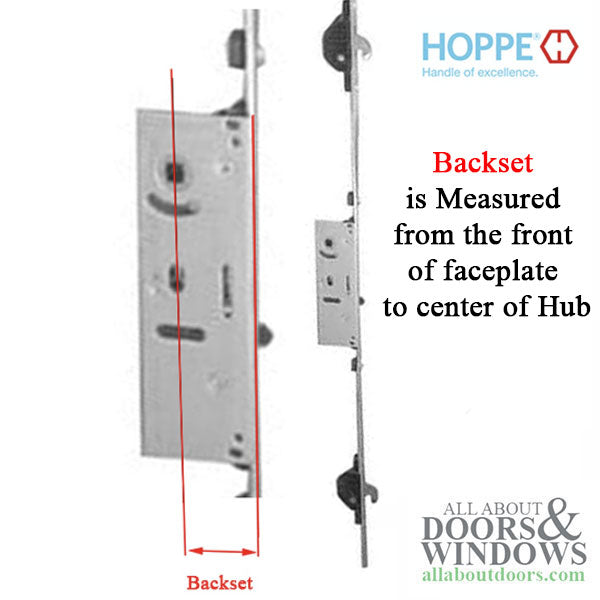

How do I measure the backset on my sliding door lock?

Measure from the edge of the door to the center of the handle bore hole. This lock has a 1-3/8 inch (35mm) backset.

How does the locking mechanism work on this sliding door lock?

When the door is closed, press the black tab on the face of the lock, then turn the handle to extend the two hooks. Use the outside key or inside thumbturn to secure the lock in position.

Can this lock be retrofitted to my existing sliding door?

Yes, this multipoint lock can be retrofitted to most wood sliding patio doors. Verify your faceplate dimensions and backset measurement before ordering.
