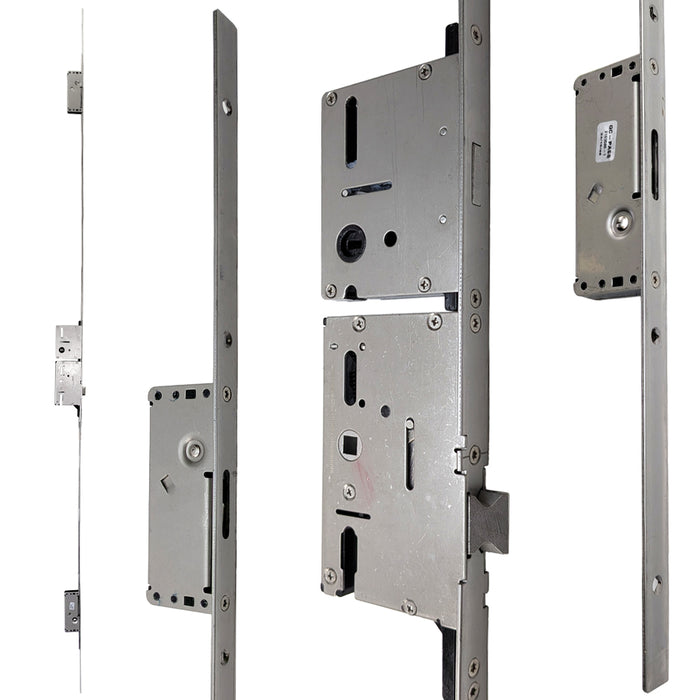

Amesbury P3000 Series Multipoint Lock – 60mm Backset, 92mm PZ

Amesbury P3000 Series Multipoint Lock – 60mm Backset, 92mm PZ

SKU: 20-6660-32701

$181.75 - $181.75
$181.75
$181.75 - $181.75
$181.75
  • PZ: 92mm
  • Backset: 2-3/8" (60mm)
  • Faceplate Width: 3/4" (20mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Door Panel Height: 77-1/4" (1962.2mm)
  • Handle Height: 36" (914.4mm)
  • Upper Hook Position: 32-9/16" (827.3mm)
  • Lower Hook Position: 25-15/16" (657.9mm)
  • Markings: Upper Faceplate stamped UF32701, Lower Faceplate stamped LF32701
  • Babysitter style multipoint lock design
  • Latch handing can be reversed
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Amesbury P3000 Multipoint Lock – 60/92 (20-6660-32701)

The Amesbury P3000 Series Multipoint Lock features a unique "Babysitter" style design that operates differently than most multipoint locks. This lock system is designed for doors with a 77-1/4 inch panel height and a standard 36-inch handle height.

To lock the door, throw the deadbolt first, then lift the handle to engage the auxiliary hooks. To unlock, retract the deadbolt and push the lever down to open. This two-step operation provides enhanced security through the hook engagement system.

Stamped With

  • Upper Faceplate: UF32701
  • Lower Faceplate: LF32701

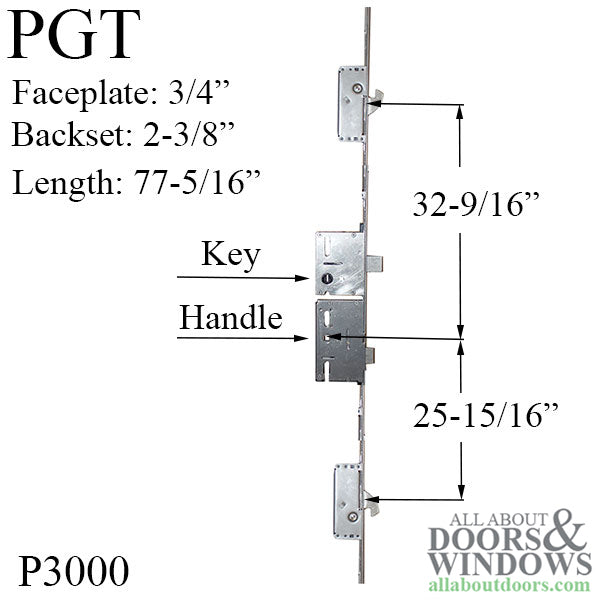

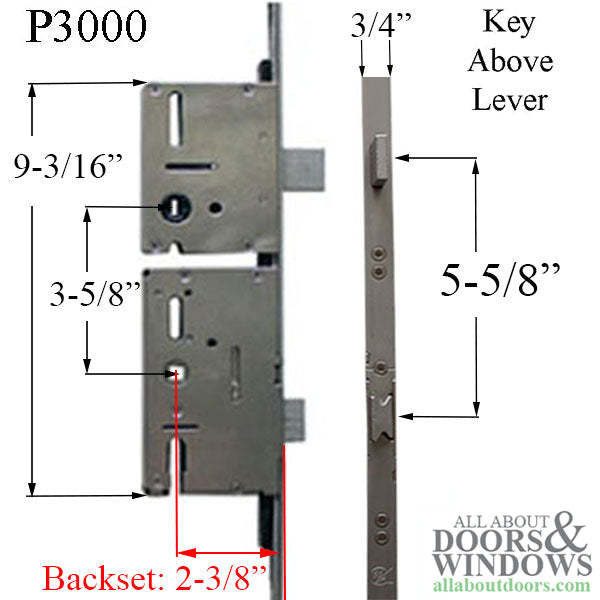

Technical Information

  • PZ: 92mm
  • Backset: 2-3/8 inches (60mm)
  • Faceplate Width: 3/4 inch (20mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Door Panel Height: 77-1/4 inches (1962.2mm)
  • Normal Handle Height: 36 inches (914.4mm)
  • Upper Hook Position: 32-9/16 inches (827.3mm)
  • Lower Hook Position: 25-15/16 inches (657.9mm)

Notes

  • Latch handing can be reversed: extend deadbolt, pull spring latch out, rotate to correct position, and check function before closing door
  • If top and bottom hooks are not damaged, you can replace just the gear box or lock case

Related Parts

  • P3000-60DB - Deadbolt Gear Box / Lock Case 60/92
  • P3000-60LT - Spring Latch Gear Box / Lock Case 60/92

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I operate the Amesbury P3000 multipoint lock?

To lock: throw the deadbolt first, then lift the handle to engage the auxiliary hooks. To unlock: retract the deadbolt and push the lever down to open.

Can I reverse the latch handing on this lock?

Yes. Extend the deadbolt, pull the spring latch out, rotate it to the correct position, and check the function before closing the door.

Can I replace just the gear box instead of the entire lock?

Yes, if the top and bottom hooks are not damaged, you can replace just the deadbolt gear box (P3000-60DB) or spring latch gear box (P3000-60LT).
