Digital Keypad Deadbolt for 72 Series Triple Latch Multipoint Locks – Satin Nickel

Digital Keypad Deadbolt for 72 Series Triple Latch Multipoint Locks – Satin Nickel

SKU: 14530-SN

Sold out
$169.95 - $169.95
$169.95
$169.95 - $169.95
$169.95
  • Compatibility: For use with 72 series Triple Latch Multipoint locks only
  • Backset: Works with 2-3/8" (60mm) or 2-3/4" (70mm) backset locks
  • Door Thickness: 1-3/4" (44mm)
  • Finish: Satin Nickel
  • Keyway: Schlage 5-pin, SC1
  • Power: 4 AA Alkaline batteries (not included)
  • Six programmable user codes with illuminated keypad
  • Manual key override with 2 keys included
  • Non-handed – works on both right and left hand doors
  • Low battery indicator and lockout feature
  • Warranty: 1 year manufacturer warranty
  • Status: Discontinued
Discontinued and no longer available
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

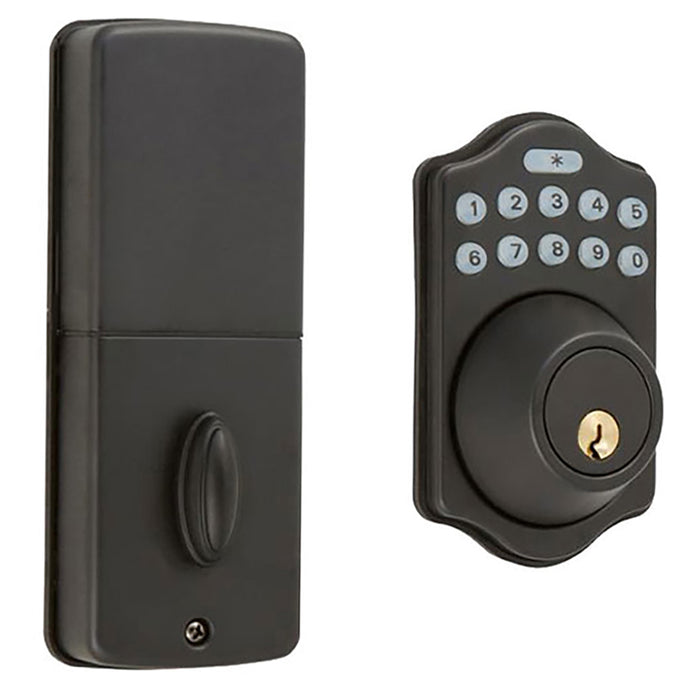

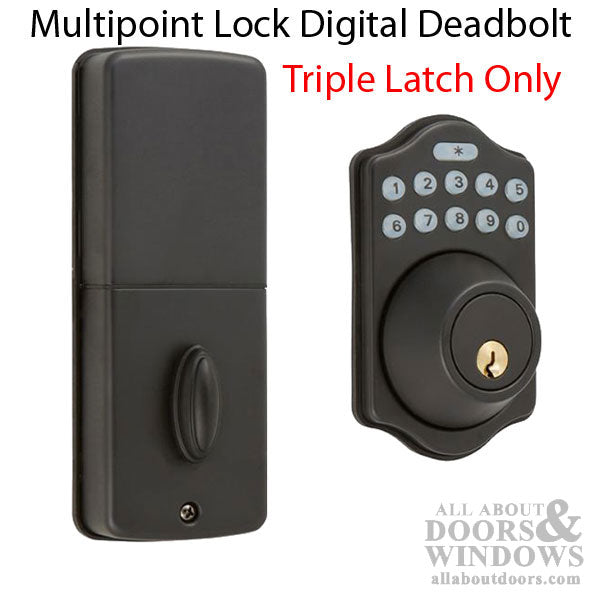

Digital Keypad Deadbolt for 72 Series Multipoint Locks (14530)

This digital keypad deadbolt provides keyless entry convenience for doors equipped with 72 series Triple Latch Multipoint locks. Featuring one-touch locking with an automatic relocking feature, this deadbolt offers enhanced security without the need for traditional keys.

The keypad is illuminated with LED visual and audio indicators, making it easy to use in low-light conditions. Six programmable user codes allow multiple family members or trusted individuals to have their own access codes. A manual key override is included with two keys for backup entry.

Installation is straightforward with no hard wiring required. The unit operates on 4 AA alkaline batteries (not included) and features a low battery indicator to alert you when power is running low. The lockout feature adds an extra layer of security against unauthorized access attempts.

Technical Information

  • Backset Compatibility: 2-3/8 inches (60mm) or 2-3/4 inches (70mm)
  • Door Thickness: 1-3/4 inches (44mm)
  • Keyway: Schlage 5-pin, SC1
  • Power Source: 4 AA Alkaline batteries (not included)
  • Handing: Non-handed (works on right or left hand doors)
  • Finish: Satin Nickel
  • Warranty: 1 year manufacturer warranty

Notes

  • For use with 72 series Triple Latch Multipoint locks only
  • Currently only available in satin nickel finish
  • This product is discontinued

Related Parts

  • 14531-SN - Keyless Multipoint Lock Deadbolt with Digital Keypad & Remote (Satin Nickel, includes 1 remote)
  • 72220068 - 6-8 (80 inch) Triple Latch Multipoint Lock
  • 72220080 - 8-0 (96 inch) Triple Latch Multipoint Lock

Discontinued item – limited availability.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What multipoint locks is this keypad deadbolt compatible with?

This digital keypad deadbolt is designed exclusively for use with 72 series Triple Latch Multipoint locks. It will not work with other multipoint lock systems.

Does this keypad deadbolt require hardwiring?

No, this unit requires no hard wiring. It operates on 4 AA alkaline batteries (not included) and features a low battery indicator.

Can I use this on a left-hand door?

Yes, this keypad deadbolt is non-handed and works on both right-hand and left-hand doors without modification.
