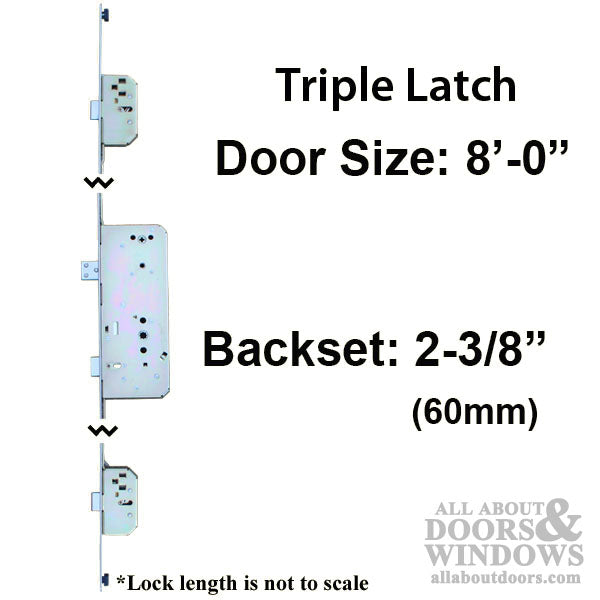

Sentry XL Triple Latch Multipoint Lock with Deadbolt for 8' Doors – 60mm Backset

SKU: 72220080

$292.50 - $292.50

$292.50

$292.50 - $292.50

$292.50

Backset: 2-3/8" (60mm)
Hole Bore Centers: 5-1/2" (139.7mm) – center of deadbolt to center of handle
Deadbolt Throw: 1" (25.4mm)
Spring Latch Throw: 1/2" (12.7mm)
Faceplate: 25/32" (20mm) Eurogroove application with radius ends
Spindle Hub: .236" (6mm)
Door Size: Standard 8-0 / 96" (2438mm) tall doors

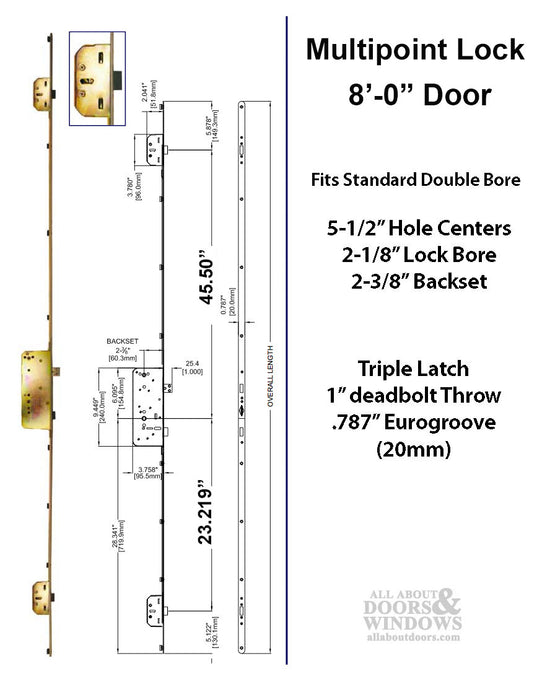

Overall Lock Length: 79.724" (2030mm)
Top Latch Position: 45.50" (1155.7mm) from center of handle
Bottom Latch Position: 23.219" (589.8mm) from center of handle
Triple latch multipoint lock with center deadbolt

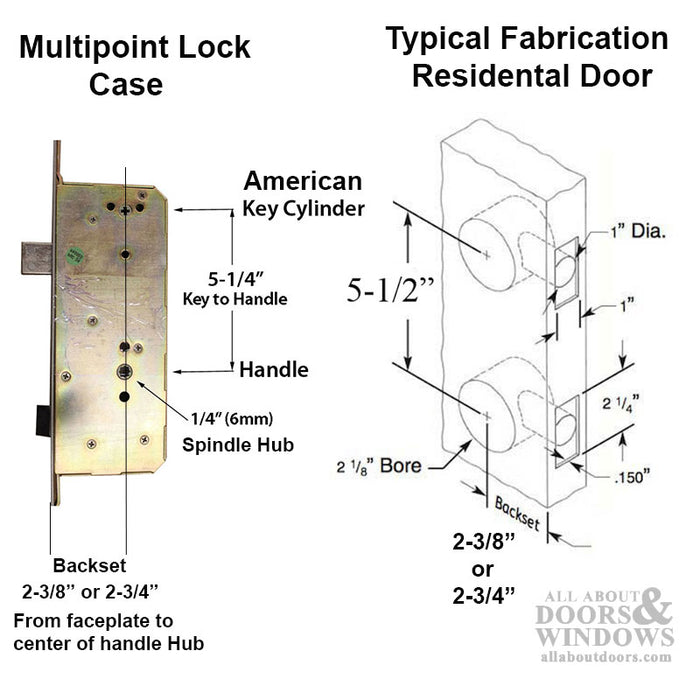

Fits standard double bore with 5-1/2" hole centers and 2-1/8" bore
One-piece construction – latch can be rehanded with screwdriver
Ideal for new construction or converting standard lock and deadbolt to multipoint
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Sentry XL Triple Latch Multipoint Lock – 8' Door (72220080)

This Sentry XL triple latch multipoint lock with deadbolt is designed for standard 8-foot (96 inch) tall doors. It provides an excellent solution for new construction projects or for upgrading an existing standard lock and deadbolt setup to a more secure multipoint locking system.

The lock features automatic independent triple latching points along with an anti-saw and kick-proof center deadbolt for maximum security. The 90-degree locking operation is consumer-friendly, and a visual lock indicator makes it easy to confirm the door is secured.

One-piece construction simplifies installation, and the lock latch can be rehanded using a screwdriver for flexibility during setup. This lock fits standard double bore preparations with 5-1/2 inch hole centers and a 2-1/8 inch bore.

Technical Information

Backset: 2-3/8 inches (60mm)
Hole Bore Centers: 5-1/2 inches (139.7mm)
Deadbolt Throw: 1 inch (25.4mm)
Spring Latch Throw: 1/2 inch (12.7mm)
Faceplate Width: 25/32 inches (20mm) – Eurogroove application
Spindle Hub: .236 inches (6mm)
Door Panel Size: Standard 8-0 / 96 inches (2438mm)
Overall Lock Length: 79.724 inches (2030mm)
Top Latch Position: 45.50 inches (1155.7mm) from center of handle
Bottom Latch Position: 23.219 inches (589.8mm) from center of handle

Notes

The lock faceplate has radius ends and is not intended to run the full length of the door panel
Special handleset trim is available for triple latch versions – contact us for more information

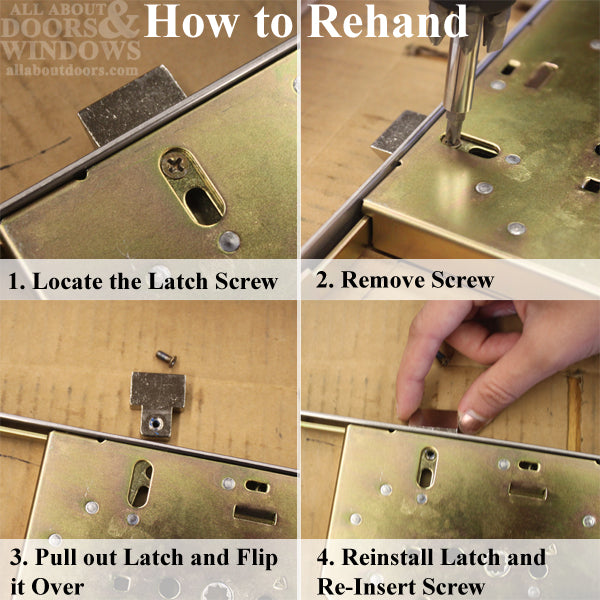

Latch can be rehanded with a screwdriver (see product images)

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I rehand the latch on this lock?

Yes, the lock latch can be rehanded using a screwdriver. Refer to the product images for guidance.

What door preparation does this lock require?

This lock fits standard double bore preparations with 5-1/2 inch hole centers and a 2-1/8 inch bore.

Is this lock suitable for replacing my existing deadbolt and handle?

Yes, this multipoint lock is designed for new construction or for converting an existing standard lock and deadbolt setup to a multipoint system on 8-foot doors.
