Sentry XL Triple Latch Multipoint Lock for 6' 8" Doors – 60mm Backset

SKU: 72220068

$292.50 - $292.50

$292.50

$292.50 - $292.50

$292.50

Backset: 2-3/8" (60mm)
Bore Centers: 5-1/2" (139.7mm) center of deadbolt to center of handle
Deadbolt Throw: 1" (25.4mm)
Spring Latch Throw: 1/2" (12.7mm)
Faceplate Width: 25/32" (20mm) Eurogroove application
Spindle Hub: .236" (6mm)
Cylinder Type: American

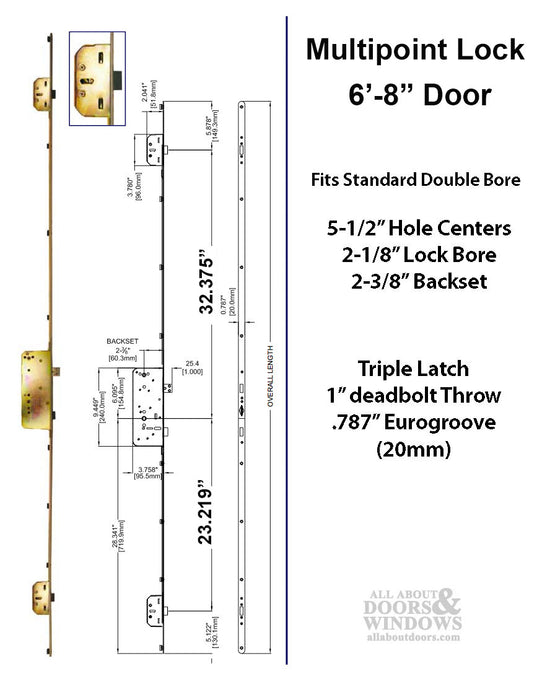

Top Latch Position: 32-3/8" (822.3mm) from center of handle
Bottom Latch Position: 23-1/8" (587.4mm) from center of handle
Overall Lock Length: 66-5/8" (1692.3mm)
Door Size: Standard 6' 8" / 80" (2032mm) tall doors

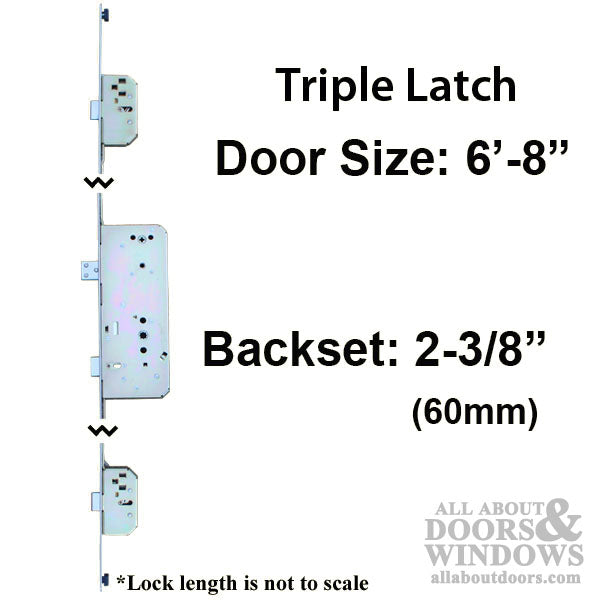

Triple latch design with anti-saw and kick-proof center deadbolt
One-piece construction for easy installation
Latch can be rehanded with a screwdriver
Strike plates NOT included (requires 4 strikes)
Compatible with keyless locks or lever handles only – not compatible with grip style handlesets

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Sentry XL Triple Latch Multipoint Lock – 6' 8" Door (72220068)

This Sentry XL triple latch multipoint lock with deadbolt is designed for standard 6 feet 8 inch (2032mm) tall doors. It is suitable for new construction or for upgrading an existing standard lock and deadbolt setup to a multipoint locking system.

The lock features automatic independent triple latching points that engage simultaneously for enhanced security. The center deadbolt is anti-saw and kick-proof, providing maximum protection against forced entry. The one-piece construction simplifies installation compared to multi-component systems.

Technical Information

Backset: 2-3/8 inches (60mm)
Bore Centers: 5-1/2 inches (139.7mm) – center of deadbolt to center of handle
Deadbolt Throw: 1 inch (25.4mm)
Spring Latch Throw: 1/2 inch (12.7mm)
Faceplate Width: 25/32 inch (20mm) – Eurogroove application
Spindle Hub: .236 inch (6mm)
Cylinder Type: American
Top Latch Position: 32-3/8 inches (822.3mm) from center of door handle
Bottom Latch Position: 23-1/8 inches (587.4mm) from center of door handle
Overall Lock Length: 66-5/8 inches (1692.3mm)
Door Panel Size: Standard 6 feet 8 inches / 80 inches (2032mm)

Notes

The faceplate has radius ends and is not intended to run the full length of the door panel.

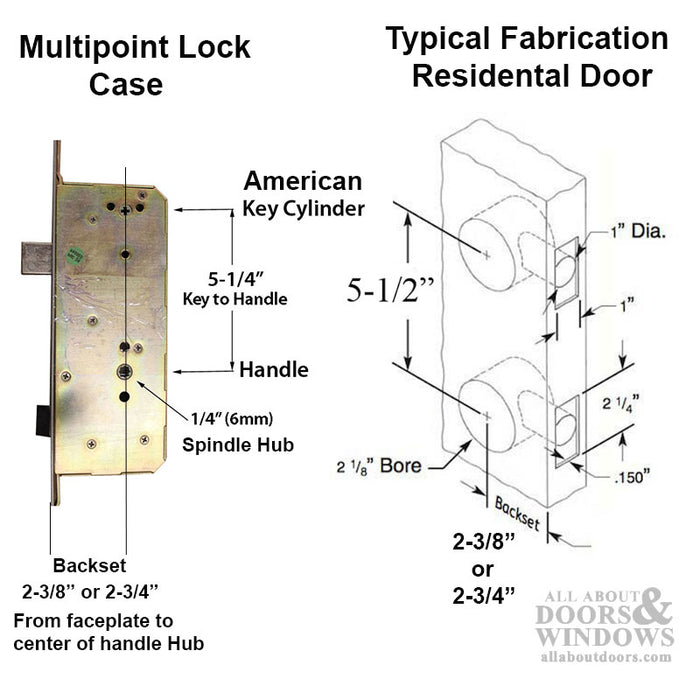

The key cylinder hole on the deadbolt is offset from the center of the rosette. While it measures 5-1/4 inches, it is designed to fit a 5-1/2 inch center-to-center double bore on the door.
This triple latch version is only compatible with keyless locks or lever handles. It will not work with grip style handlesets.
Strike plates are not included. This lock requires 4 strike plates.
The latch can be rehanded using a screwdriver.
Contact us for special trim options available for this lock.

Related Parts

23320004 – Multipoint lock strike plate, Adjustable tab – Oil Rubbed Bronze
23320003 – Multipoint lock strike plate, Adjustable tab – Satin Nickel

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this lock work with a grip style handleset?

No, this triple latch version is only compatible with keyless locks or lever handles. It will not work with grip style handlesets.

Are strike plates included with this lock?

No, strike plates are not included. This lock requires 4 strike plates, which are sold separately.

Can I change the handing of the latch?

Yes, the lock latch can be rehanded using a screwdriver. Insert a small screwdriver into the hole on the back of the latch, push forward, twist, and release.
