Giesse Multipoint Lock – 45mm Backset, 85mm PZ

Giesse Multipoint Lock – 45mm Backset, 85mm PZ

SKU 04650000

$71.48 - $71.48
$71.48
$71.48 - $71.48
$71.48

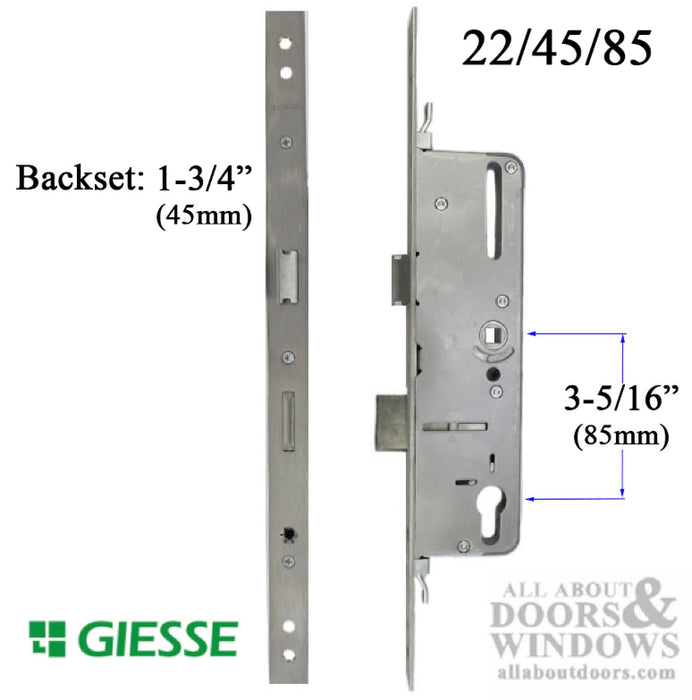

  • PZ (Handle to Cylinder): 3-5/16" (85mm)
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 7/8" (22mm)
  • Faceplate Length: 14-7/8" (378mm)
  • Deadbolt Projection: 3/4" (20mm)
  • Spindle Hub Diameter: 5/16" (8mm)
  • INOX (stainless steel) construction
  • For terrace or balcony multipoint doors
  • Lift handle to extend deadbolt and locking devices
  • Handing can be reversed in the field
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Giesse Multipoint Lock – 45/85 (04650000)

This Giesse INOX mortise lock case is designed for multipoint lock systems on terrace and balcony doors. Built with stainless steel construction, it provides reliable security and smooth operation for perimeter locking applications.

The lock operates by lifting the handle to extend the deadbolt and additional locking devices. Use a key or thumb turn to secure the door in the locked position. This design ensures all locking points engage simultaneously for enhanced security.

Technical Information

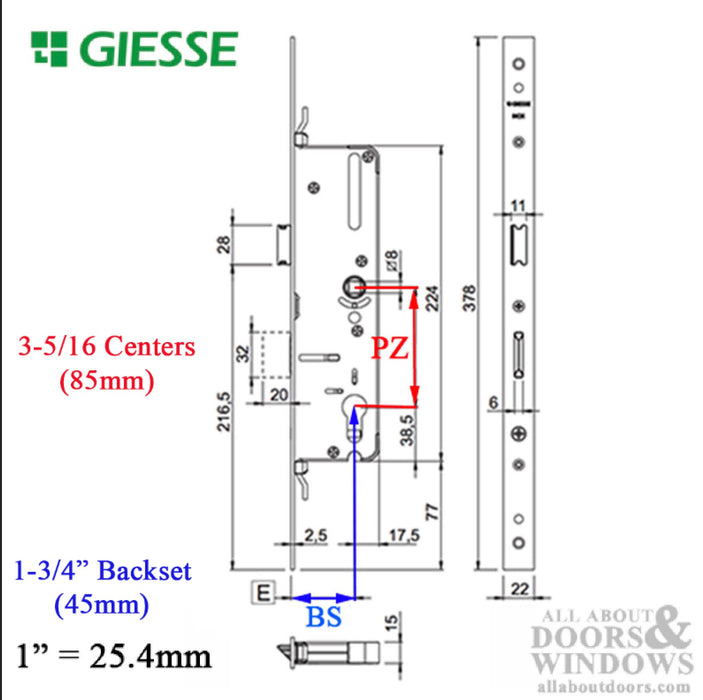

  • PZ (Handle to Cylinder Centers): 3-5/16 inches (85mm)
  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 7/8 inch (22mm)
  • Faceplate Length: 14-7/8 inches (378mm)
  • Deadbolt Projection: 3/4 inch (20mm)
  • Spindle Hub Diameter: 5/16 inch (8mm)

Notes

  • Handing can be changed in the field: push in the spring latch to the unlocked position, insert a screwdriver into the round hole on the back of the lock case, push the latch out, rotate it, and reinstall

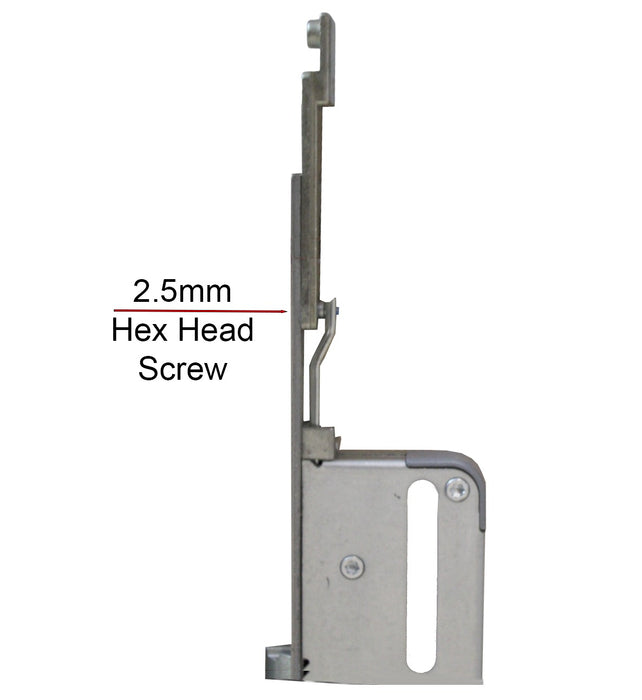

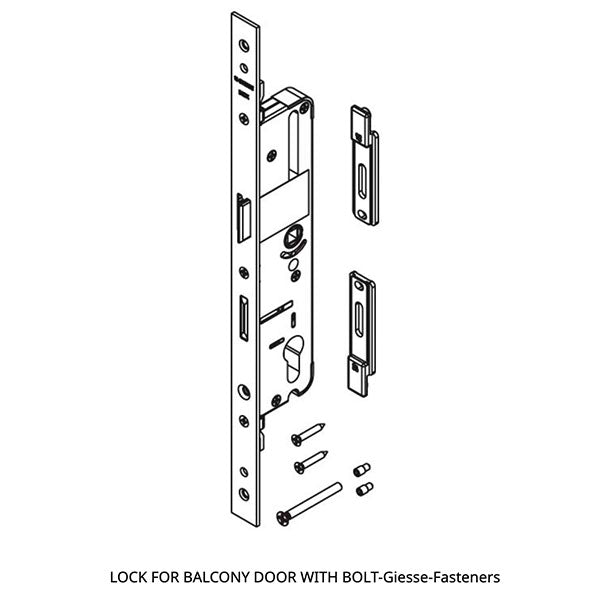

  • Connector plates attach to the top and bottom of the gearbox with small machine screws
  • Connectors have stud posts that link to upper and lower extensions

Related Parts

  • 04646000 – Giesse Lock with 35mm backset, 85mm PZ
  • 04699000 – Giesse Lock with 45mm backset, 92mm PZ

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this lock?

Yes, the handing can be reversed in the field. Push in the spring latch, insert a screwdriver into the round hole on the back of the lock case, push the latch out, rotate it, and reinstall.

How does this lock connect to the upper and lower extensions?

Connector plates attach to the top and bottom of the gearbox with small machine screws. These connectors have stud posts that link to the upper and lower extensions.

What is the difference between this lock and the 04699000?

This lock (04650000) has an 85mm PZ spacing, while the 04699000 has a 92mm PZ spacing. Both have a 45mm backset. Measure your handle to cylinder center distance to determine which you need.
