Giesse INOX Multipoint Lock Case – 35mm Backset, 85mm PZ

Giesse INOX Multipoint Lock Case – 35mm Backset, 85mm PZ

SKU 04646000

$62.15 - $62.15
$62.15
$62.15 - $62.15
$62.15

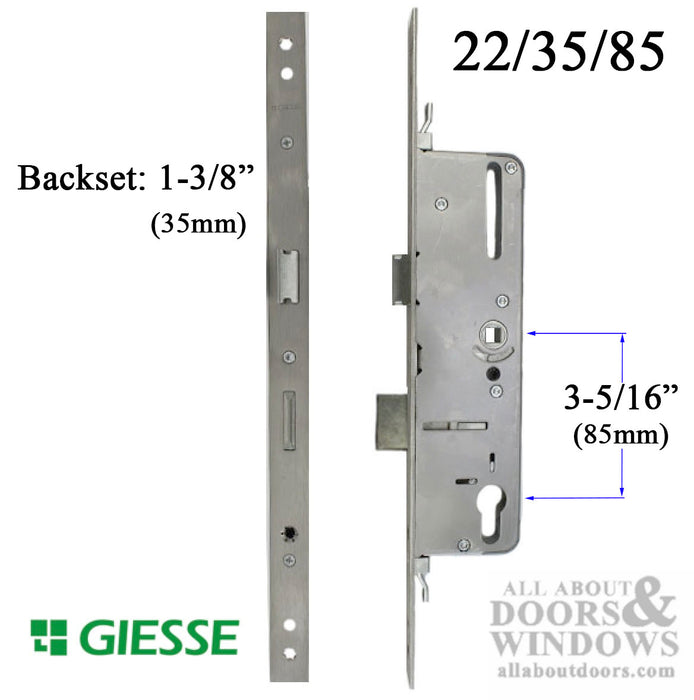

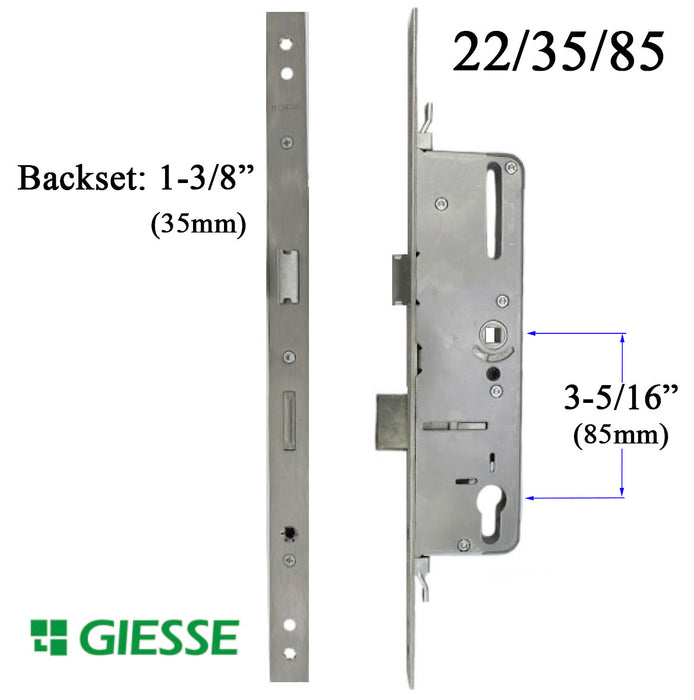

  • PZ (Handle to Cylinder): 3-5/16" (85mm)
  • Backset: 1-3/8" (35mm)
  • Faceplate Width: 7/8" (22mm)
  • Faceplate Length: 14-7/8" (378mm)
  • Deadbolt Projection: 3/4" (20mm)
  • Spindle Hub Diameter: 5/16" (8mm)
  • Material: INOX (Stainless Steel)
  • Application: Terrace and balcony multipoint doors
  • Handing can be reversed in the field
  • Lift handle to extend deadbolt; use key or thumb turn to secure
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Giesse INOX Multipoint Lock – 35/85 (04646000)

This Giesse INOX mortise lock case is designed for multipoint lock systems on terrace and balcony doors. Constructed from stainless steel (INOX), this lock case provides durable, corrosion-resistant performance for exterior applications.

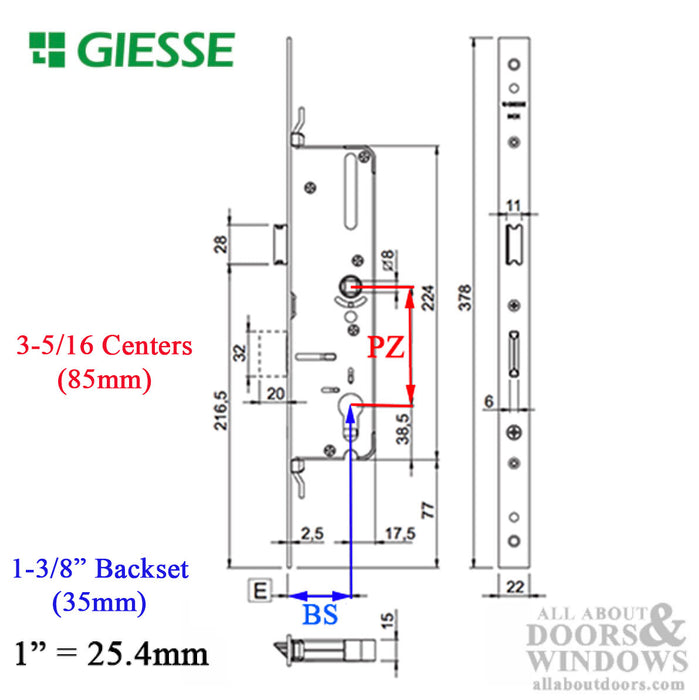

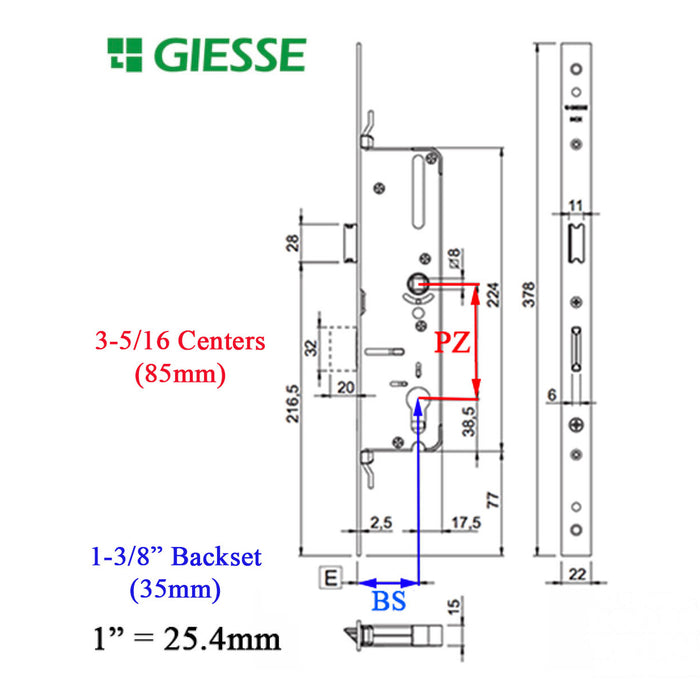

The lock features a 1-3/8 inch (35mm) backset and 3-5/16 inch (85mm) PZ spacing (handle center to cylinder center). The faceplate measures 7/8 inch (22mm) wide by 14-7/8 inches (378mm) long, with a 3/4 inch (20mm) deadbolt projection.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • PZ Spacing: 3-5/16 inches (85mm)
  • Faceplate Width: 7/8 inch (22mm)
  • Faceplate Length: 14-7/8 inches (378mm)
  • Deadbolt Projection: 3/4 inch (20mm)
  • Spindle Hub Diameter: 5/16 inch (8mm)
  • Material: INOX (Stainless Steel)

Notes

  • Lift handle to extend deadbolt and additional locking devices
  • Use key or thumb turn to secure in locked position
  • Handing can be changed in the field by removing and rotating the spring latch

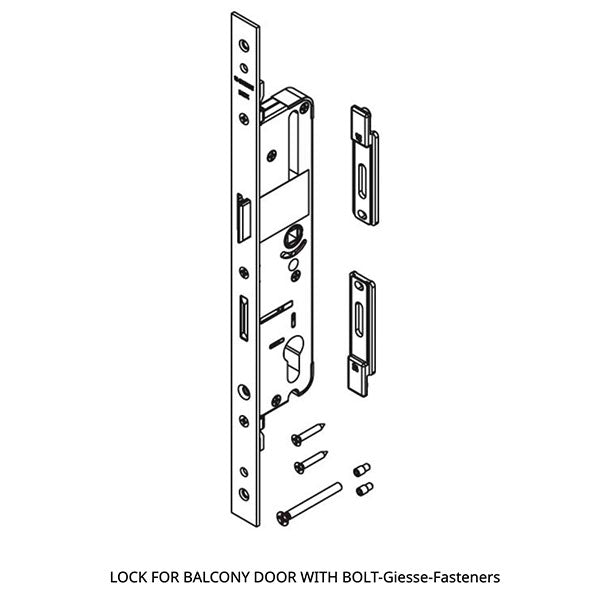

  • Connector plates attach to top and bottom of gearbox with small machine screws
  • Connectors have stud posts that link to upper and lower extensions

Related Parts

  • 04650000 – Giesse Lock Case (45mm backset, 85mm PZ)
  • 04699000 – Giesse Lock Case (45mm backset, 92mm PZ)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this lock?

Push in the spring latch to the unlocked position, insert a screwdriver into the round hole on the back of the lock case to push the latch out, rotate the latch, then push it back in and test the operation before installing.

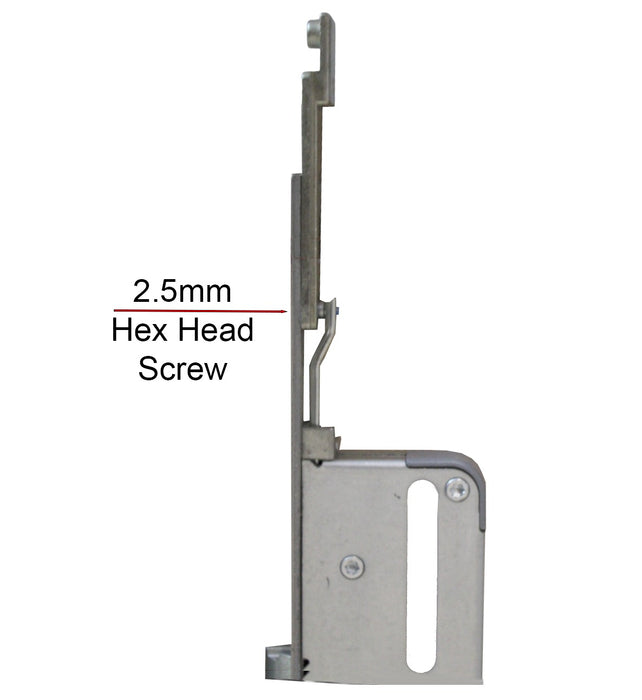

How does this lock connect to the upper and lower extensions?

Connector plates attach to the top and bottom of the gearbox with small machine screws. These connectors have stud posts that link to the upper and lower extensions.

What is the PZ measurement?

PZ refers to the distance from the center of the handle spindle to the center of the cylinder (keyhole). This lock has an 85mm PZ spacing.
