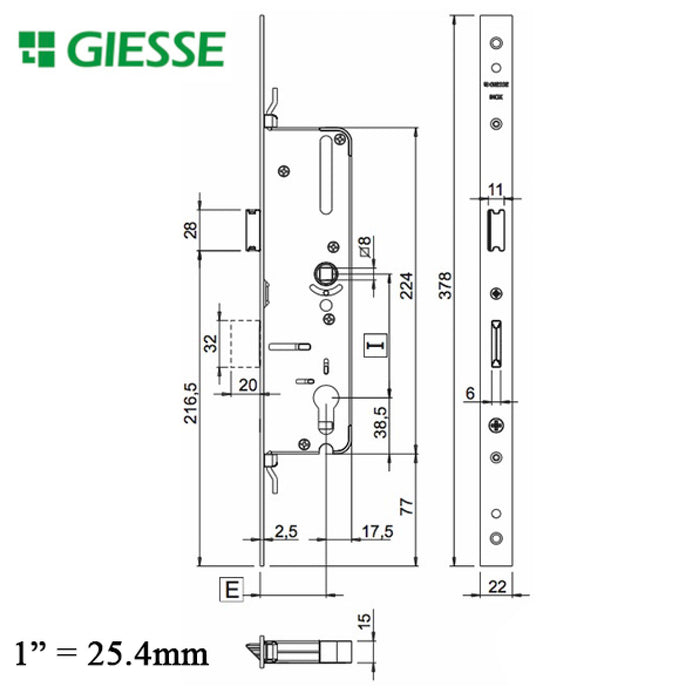

Giesse Multipoint Lock – 45mm Backset, 92mm PZ, 22mm Faceplate

Giesse Multipoint Lock – 45mm Backset, 92mm PZ, 22mm Faceplate

SKU 04699000

$103.14 - $103.14
$103.14
$103.14 - $103.14
$103.14

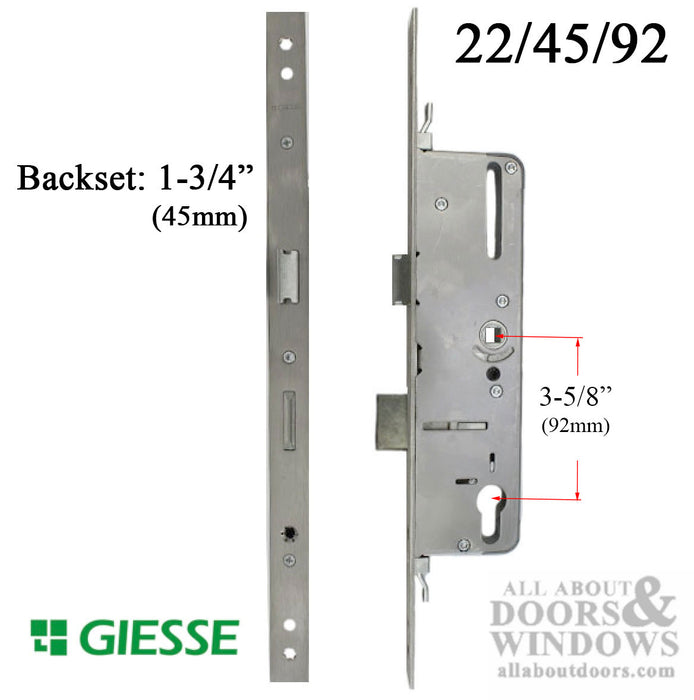

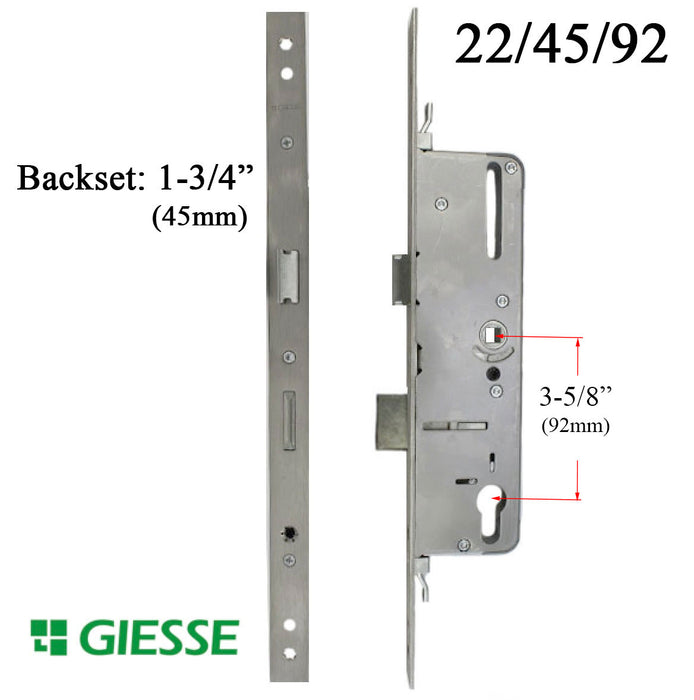

  • Backset: 1-3/4" (45mm)
  • PZ (Handle to Cylinder): 3-5/8" (92mm)

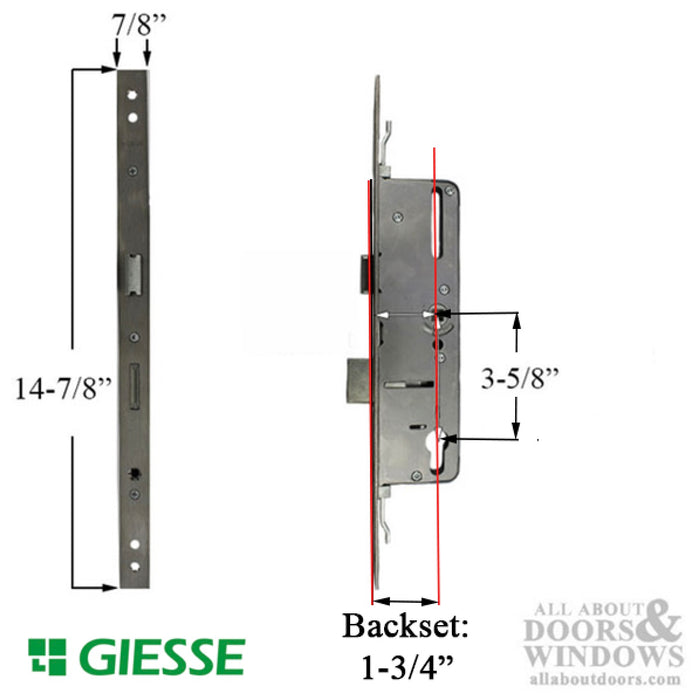

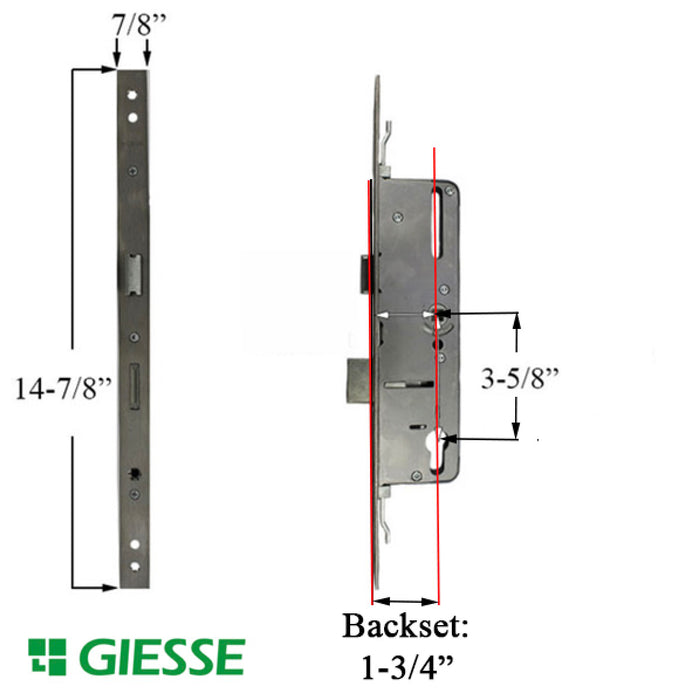

  • Faceplate Width: 7/8" (22mm)
  • Faceplate Length: 14-7/8" (378mm)
  • Deadbolt Projection: 3/4" (20mm)
  • Spindle Hub Diameter: 5/16" (8mm)
  • Lift handle to extend deadbolt and additional locking devices
  • Use key or thumb turn to secure in locked position
  • Latch handing can be reversed in the field
  • Connector plates attach to top and bottom for upper and lower extensions
  • Compatible with Hoppe trim on aluminum terrace doors
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Giesse Multipoint Lock – 45/92, 22mm Faceplate (04699000)

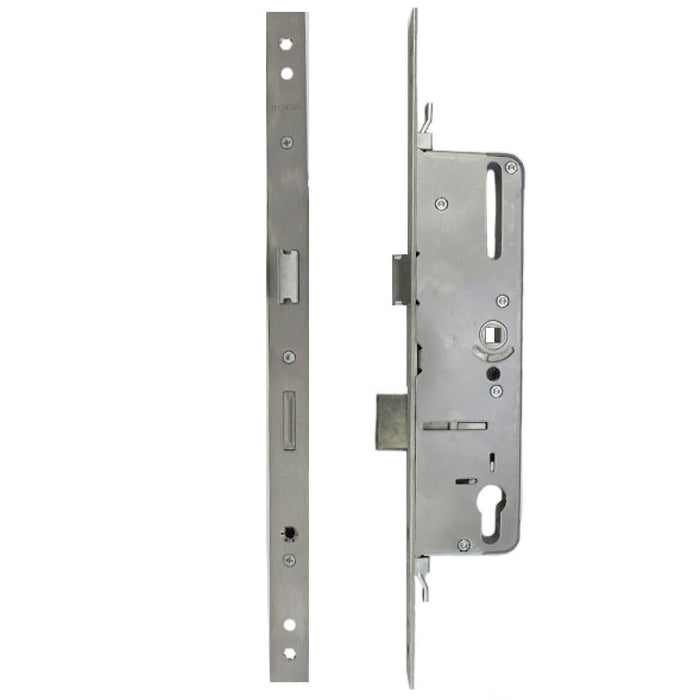

The Giesse INOX Mortise Lock Case is designed for multipoint lock systems commonly used on terrace and balcony doors. This lock mechanism features a 45mm backset and 92mm PZ (handle to cylinder center), making it suitable for European-style multipoint door hardware configurations.

The lock case includes a deadbolt with 3/4 inch (20mm) projection for enhanced security. The faceplate measures 7/8 inch (22mm) wide and 14-7/8 inches (378mm) long, with an 8mm spindle hub diameter for handle compatibility.

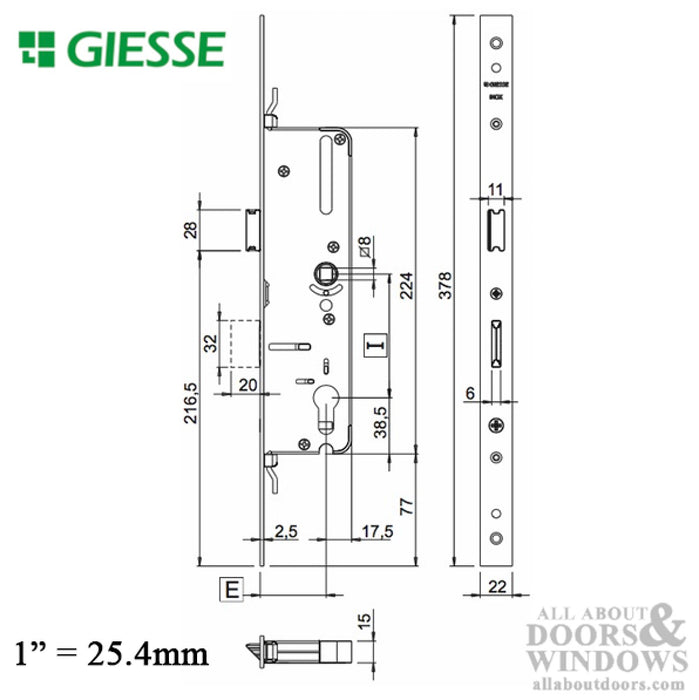

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • PZ (Handle to Cylinder): 3-5/8 inches (92mm)
  • Faceplate Width: 7/8 inch (22mm)
  • Faceplate Length: 14-7/8 inches (378mm)
  • Deadbolt Projection: 3/4 inch (20mm)
  • Spindle Hub Diameter: 5/16 inch (8mm)

Notes

  • Lift handle to extend deadbolt and additional locking devices, then use key or thumb turn to secure
  • Latch handing can be reversed: push in spring latch, insert screwdriver in round hole on back, push latch out, rotate, and reinstall

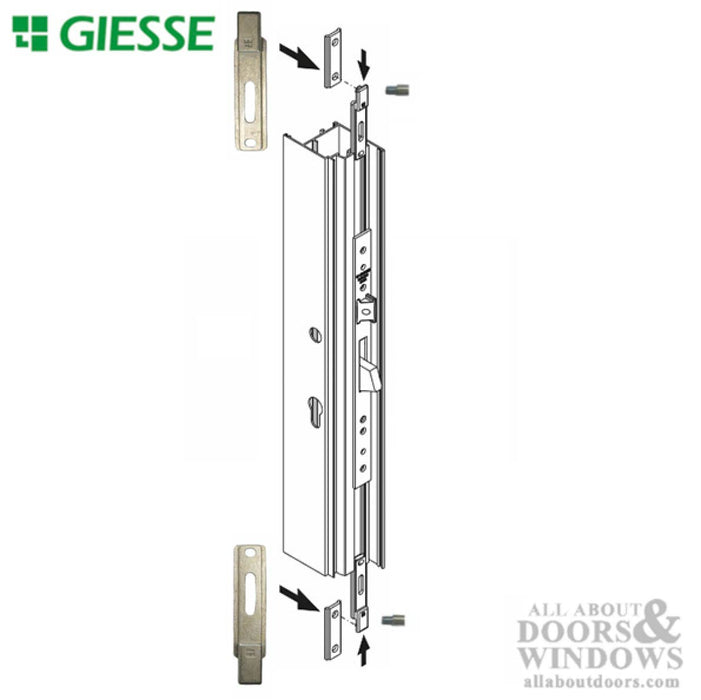

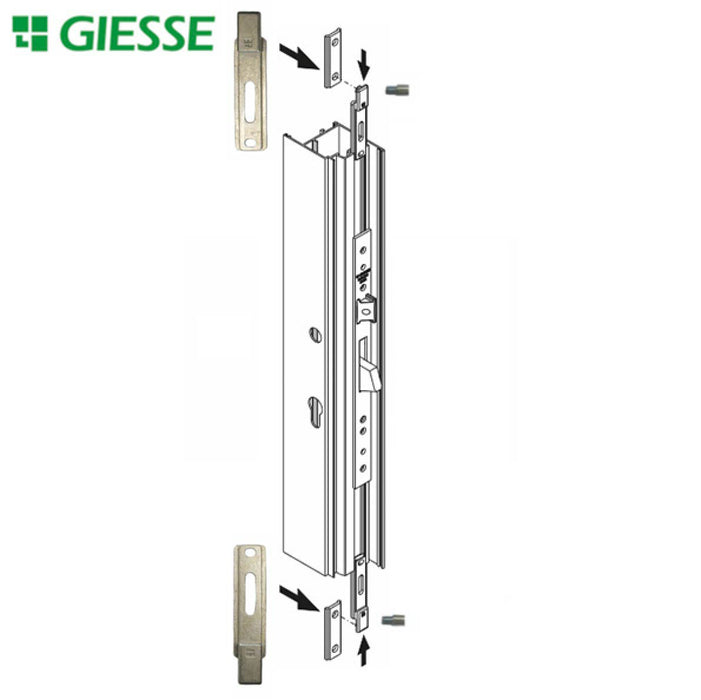

  • Connector plates attach to top and bottom of gearbox with machine screws to connect upper and lower extensions
  • Sometimes used with Hoppe trim on aluminum terrace doors

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this lock?

Push in the spring latch to the unlocked position, insert a screwdriver into the round hole on the back of the lock case, push the latch out, rotate it, then push it back in and test operation before installing.

How does this lock operate?

Lift the handle to extend the deadbolt and additional locking devices, then use the key or thumb turn to secure the lock in the locked position.

What trim is compatible with this Giesse lock?

This Giesse 22/45/92 lock is sometimes used with Hoppe trim on aluminum terrace doors.
