Hoppe Manual Gear Multipoint Lock – 35mm Backset, 92mm PZ, 29.65" Tongue

Hoppe Manual Gear Multipoint Lock – 35mm Backset, 92mm PZ, 29.65" Tongue

SKU: 8778159

$151.52 - $151.52
$151.52
$151.52 - $151.52
$151.52
  • PZ: 92mm
  • Backset: 1-3/8" (35mm)
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1/2" (14mm)

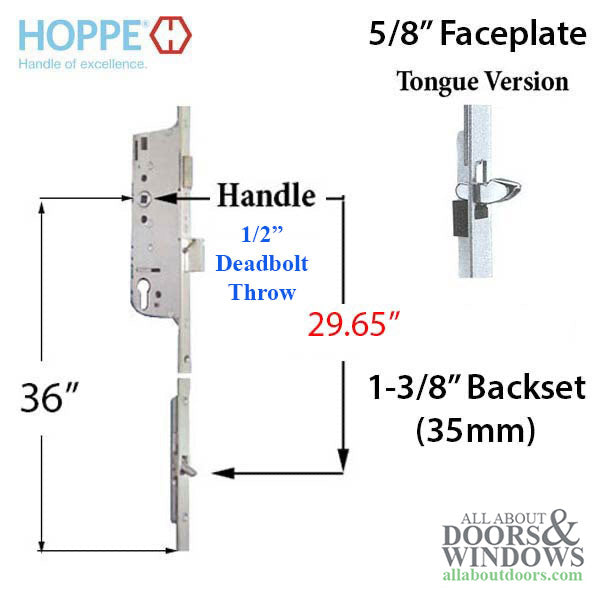

  • Handle Height: 36" (914mm)
  • Tongue Position: 29.65" from center of handle
  • Maximum Cutoff: 1.18" (30mm)
  • Manual gear for active door
  • 5 screw installation
  • Latch handing can be reversed
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Manual Gear – 35/92, 29.65" Tongue (8778159)

This Hoppe 16mm manual gear multipoint lock is designed for active doors and features a 35mm backset with 92mm PZ spacing. The tongue is positioned at 29.65 inches from the center of the handle, making it suitable for specific door configurations including Kolbe and Kolbe doors.

The lock body features a 5/8-inch (16mm) faceplate width and includes a 1/2-inch deadbolt throw. With a handle height of 36 inches and a maximum cutoff of 1.18 inches, this manual gear provides reliable multipoint locking functionality.

Installation requires 5 screws. The latch handing can be reversed by pulling the spring latch out, turning it in the opposite direction, and releasing. Pliers may be needed for this adjustment.

Technical Information

  • PZ: 92mm
  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Deadbolt Throw: 1/2 inches (14mm)
  • Handle Height: 36 inches (914mm)
  • Tongue Position: 29.65 inches from center of handle
  • Maximum Cutoff: 1.18 inches (30mm)
  • Installation: 5 screw

Notes

  • Manual gear (tongue version) for active door
  • Latch handing may be reversed by pulling spring latch out, turning in opposite direction, and releasing (pliers may be needed)
  • Compatible with Kolbe and Kolbe doors

Related Parts

  • 8778143 - Bottom Gear, 1-3/8 inches backset, Tongue at 29.25 inches, 1 inch Deadbolt

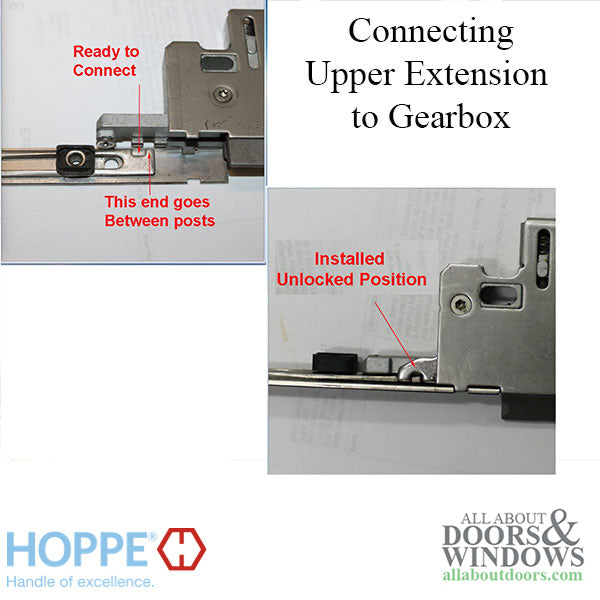

  • 8778563 - Top Extension for 93 inch door, tongue at 46.97 inches

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I reverse the latch handing on this lock?

Pull the spring latch out, turn it in the opposite direction, and release. You may need pliers to assist with this adjustment.

What does the tongue position measurement mean?

The tongue position of 29.65 inches indicates the distance from the center of the handle to where the tongue engages, which is critical for proper alignment with your door frame.

What related parts do I need for a complete multipoint system?

For Kolbe and Kolbe doors, you may need the 8778143 bottom gear and 8778563 top extension for 93-inch doors. Contact us to confirm the correct configuration for your door.
