Hoppe Multipoint Gear with Tongue – 35mm Backset, 92mm PZ, 36" Handle Height

Hoppe Multipoint Gear with Tongue – 35mm Backset, 92mm PZ, 36" Handle Height

SKU 8778143

$165.30 - $165.30
$165.30
$165.30 - $165.30
$165.30
  • PZ: 92mm
  • Backset: 1-3/8" (35mm)
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25.4mm)

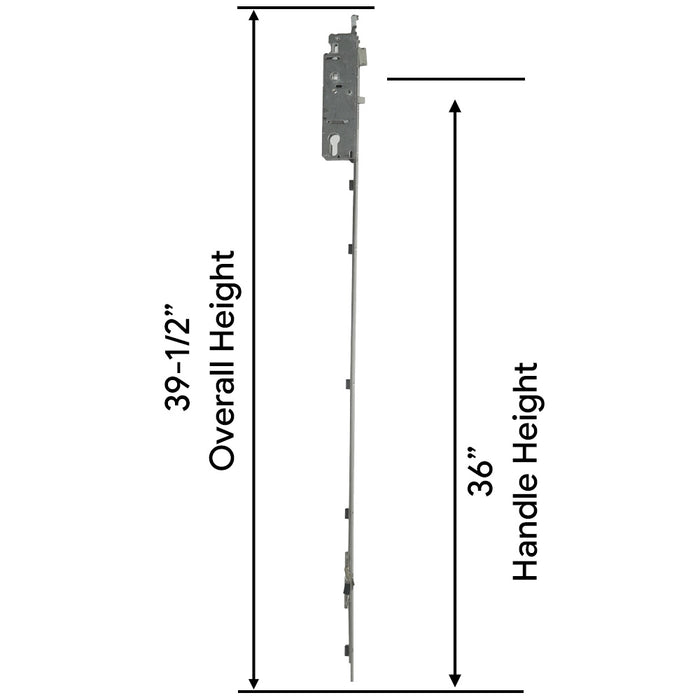

  • Handle Height: 36" (914mm)
  • Tongue Position: 29.65" from center of handle
  • Maximum Cutoff: 1.18" (30mm)
  • Manual gear with tongue
  • 5 screw installation
  • Latch handing can be reversed
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

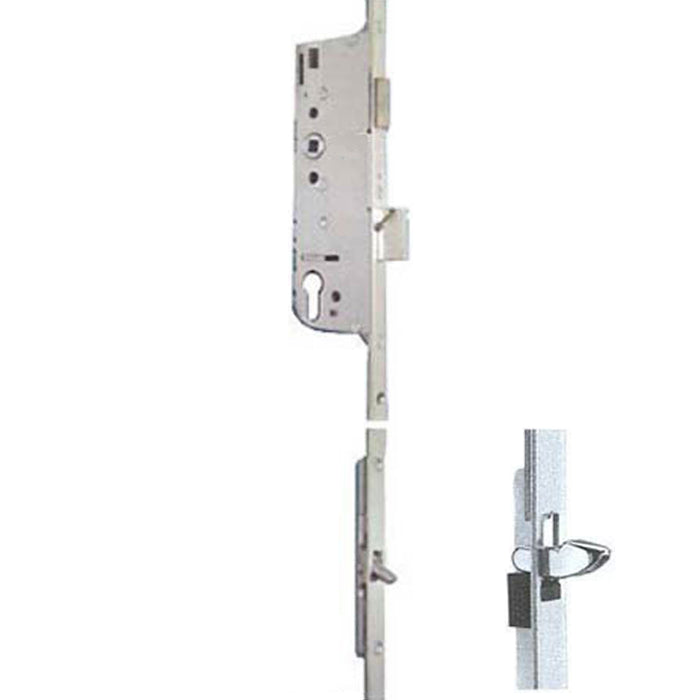

Hoppe 16mm Manual Multipoint Gear – 35/92, Tongue (8778143)

This Hoppe 16mm manual multipoint gear features a tongue design and is built for multipoint door systems. With a 35mm backset and 92mm PZ measurement, this gear provides reliable locking performance for residential and commercial applications.

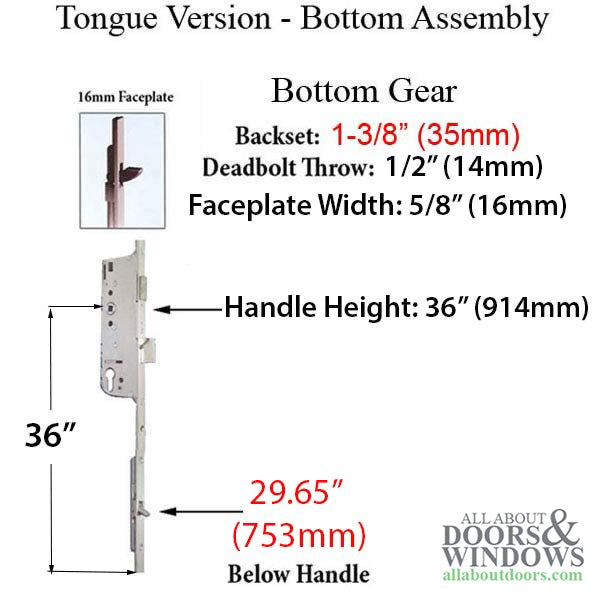

The gear includes a 1-inch deadbolt throw for enhanced security and is designed with a 36-inch handle height. The tongue is positioned 29.65 inches from the center of the handle, with a maximum cutoff of 1.18 inches.

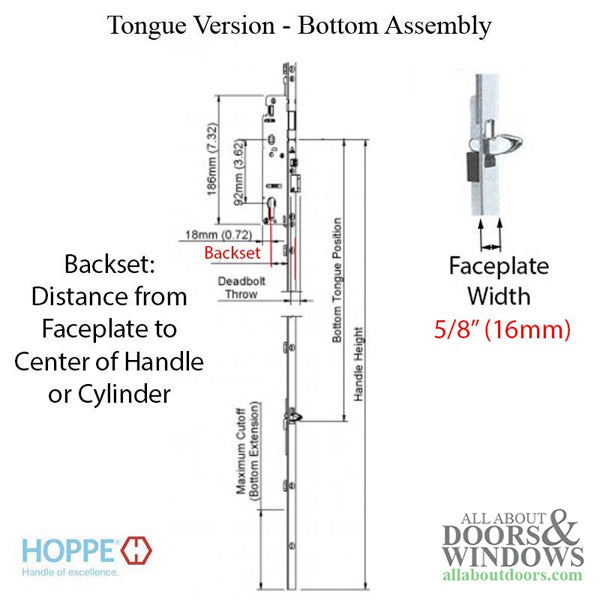

Technical Information

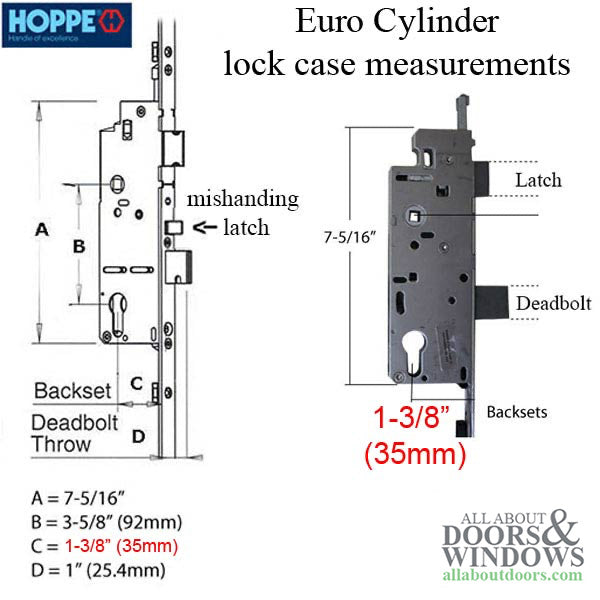

  • PZ: 92mm
  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Handle Height: 36 inches (914mm)
  • Tongue Position: 29.65 inches from center of handle
  • Maximum Cutoff: 1.18 inches (30mm)
  • Installation: 5 screw
  • Gear Type: Manual with tongue

Notes

  • To reverse latch handing: Pull spring latch out, turn in the opposite direction, and release. Pliers may be needed.
  • Compatible with Kolbe and Kolbe doors

Related Parts

  • 8778143 - Bottom Gear, 16mm 35/92, Tongue @ 29.65"
  • 8778563 - Top Extension for 93" door, tongue at 46.97"

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I reverse the latch handing on this gear?

Pull the spring latch out, turn it in the opposite direction, and release. You may need to use pliers to grip the latch.

What doors is this multipoint gear compatible with?

This gear is designed for use with Kolbe and Kolbe doors and other multipoint door systems with matching 35mm backset and 92mm PZ specifications.

What is the tongue position measurement?

The tongue is positioned 29.65 inches from the center of the handle, which is important for proper alignment with your door system.
