Hoppe Manual Top Extension – 16mm Faceplate, 68.70" Length, 46.97" Tongue

SKU 8778563

$119.25 - $119.25

$119.25

$119.25 - $119.25

$119.25

Faceplate Width: 5/8" (16mm)
Extension Length: 68.70" (1745mm)
Top Tongue Position: 46.97" (1193mm)
Maximum Cutoff: 17.52" (445mm)
Material: Stainless Steel
Number of Screws: 10
Top extension only – does not include bottom assembly with gearbox (1 of 2 pieces)
When paired with lower assembly, fits doors 88.78" to 106.30" tall with 36" handle height
Sold individually

Estimated Delivery

Between December 11 and December 15

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Hoppe 16mm Manual Top Extension – 68.70" (8778563)

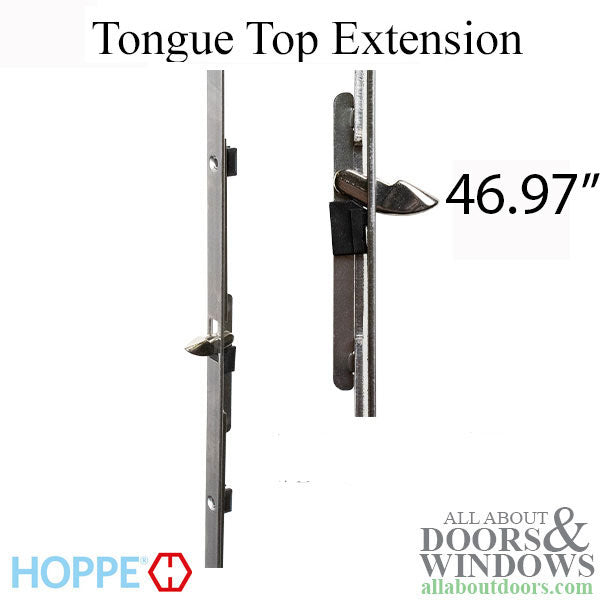

This Hoppe 16mm Manual Top Extension features a tongue positioned at 46.97 inches (1193mm) from the handle center, with an overall extension length of 68.70 inches (1745mm). Designed for multipoint lock systems, this top extension provides secure locking at the top of your door.

This is the top extension only and does not include the bottom assembly with gearbox. You will need both the upper and lower assemblies for a complete multipoint lock system. When both assemblies are connected, this extension fits doors ranging from 88.78 inches to 106.30 inches tall with a 36-inch handle height.

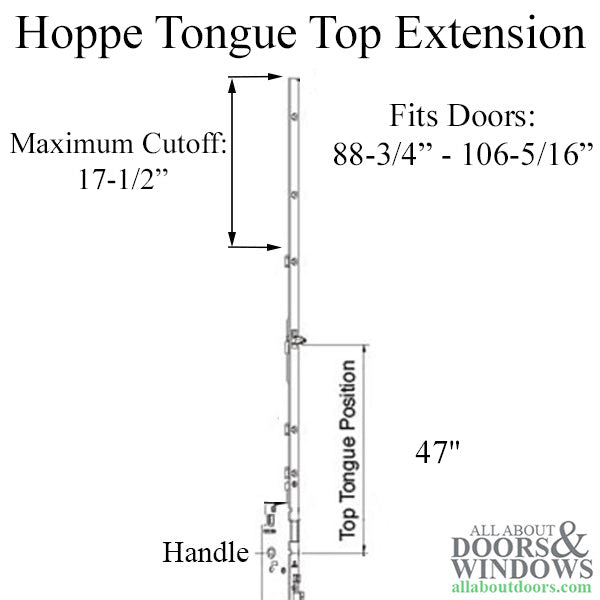

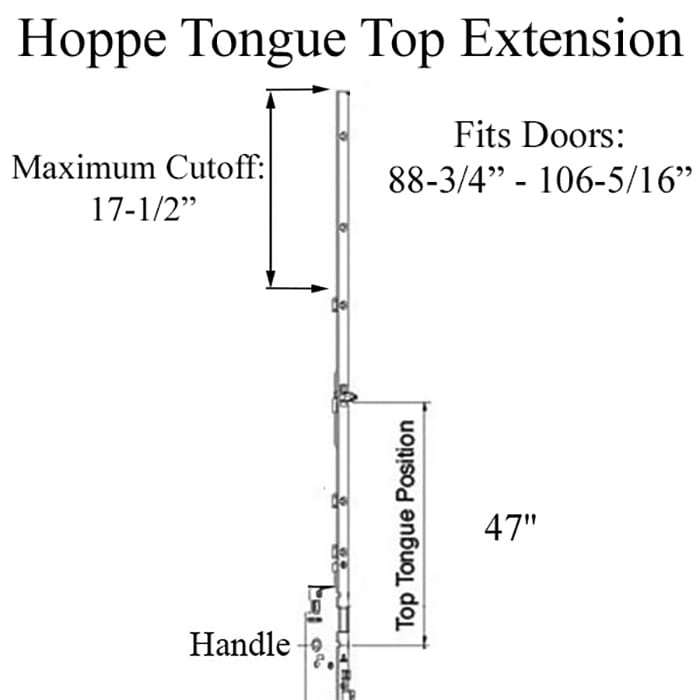

The extension can be cut down by a maximum of 17.52 inches (445mm) to accommodate different door heights, giving you flexibility during installation.

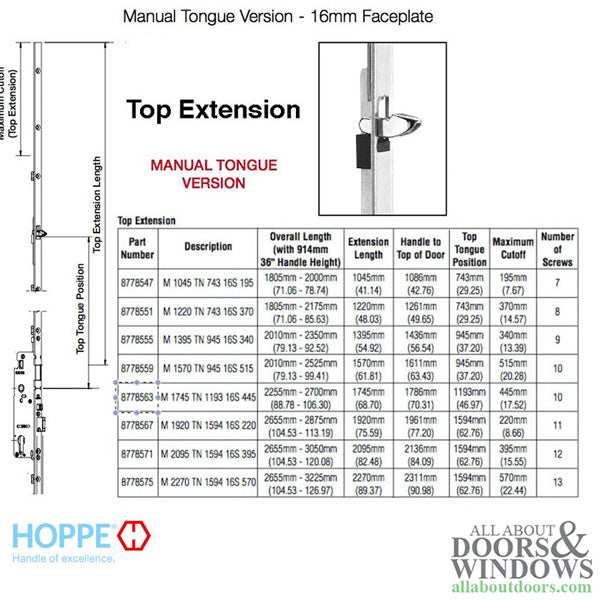

Technical Information

Faceplate Width: 5/8 inch (16mm)
Extension Length: 68.70 inches (1745mm)
Top Tongue Position: 46.97 inches (1193mm)
Maximum Cutoff: 17.52 inches (445mm)
Number of Screws: 10
Material: Stainless Steel
Handle to Top of Door: 68.70 inches with 36-inch handle height

Notes

Manual tongue operation
This is 1 of 2 pieces required for a complete system
Door height range (with lower assembly): 88.78 to 106.30 inches

Related Parts

2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778567 - Hoppe Top Extension with Tongue 75.59"

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Is this a complete multipoint lock system?

No, this is the top extension only (1 of 2 pieces). You will need to purchase the bottom assembly with gearbox separately for a complete multipoint lock system.

What door heights does this extension fit?

When paired with the lower assembly, this extension fits doors from 88.78 inches to 106.30 inches tall with a 36-inch handle height. The extension can be cut down by up to 17.52 inches to accommodate different door heights.

What is the faceplate width on this extension?

The faceplate width is 5/8 inch (16mm), which is standard for Hoppe 16mm tongue extension systems.
