G-U Top Shootbolt Reversing Gear for Active Doors – 6-5/16" Length

G-U Top Shootbolt Reversing Gear for Active Doors – 6-5/16" Length

SKU

$23.83 - $59.31
$23.83
$23.83 - $59.31
$23.83
  • Length: 6-5/16" (160mm)
  • Bolt Extension: 3/4" (19mm)
  • Application: Top shootbolt reversing gear for active doors
  • Compatibility: Works on all G-U locks requiring a reversing gear
  • Available Finishes: Stainless Steel, Black, Silver Ferguard
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

G-U Top Shootbolt Reversing Gear (G-16798-00-0)

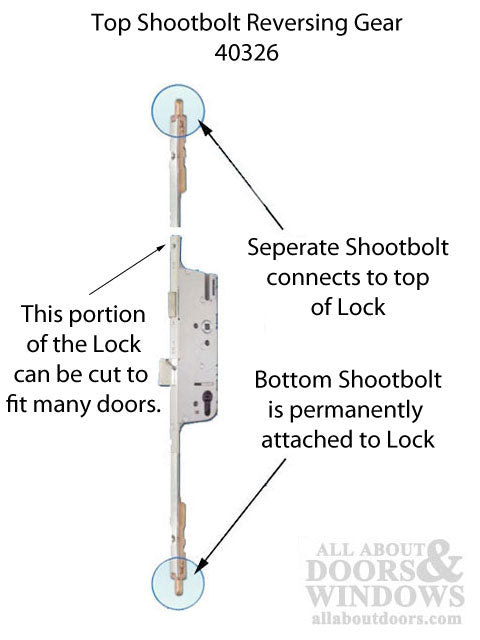

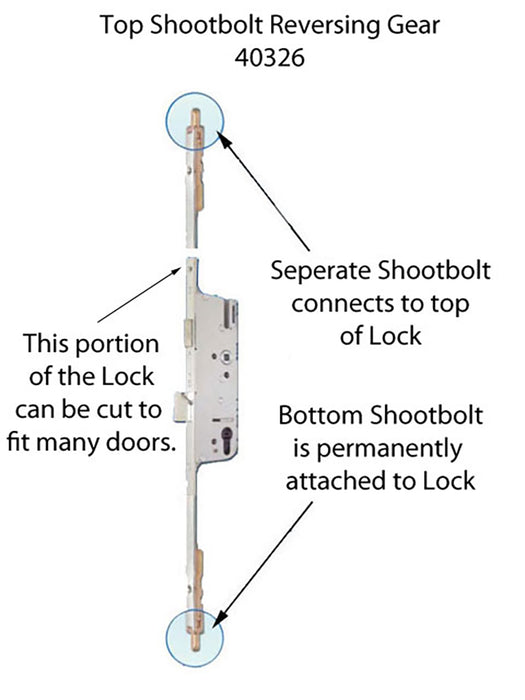

This G-U top shootbolt reversing gear is designed for active doors equipped with G-U multipoint locking systems. The reversing gear mechanism allows the shootbolt to operate in coordination with your door's locking hardware, providing secure top-of-door engagement.

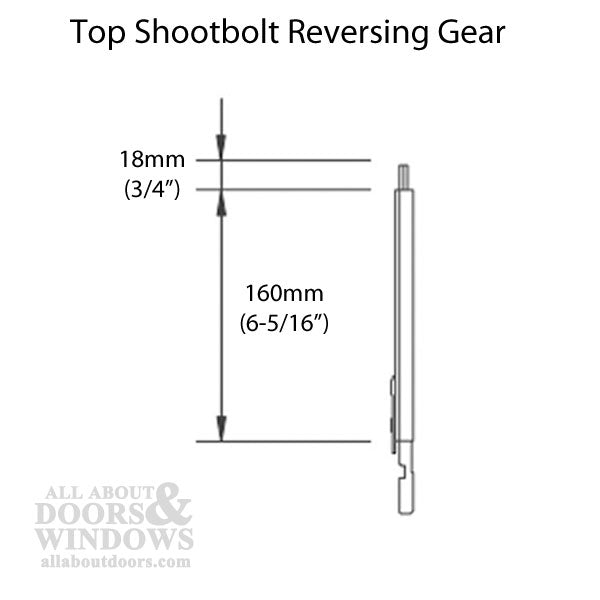

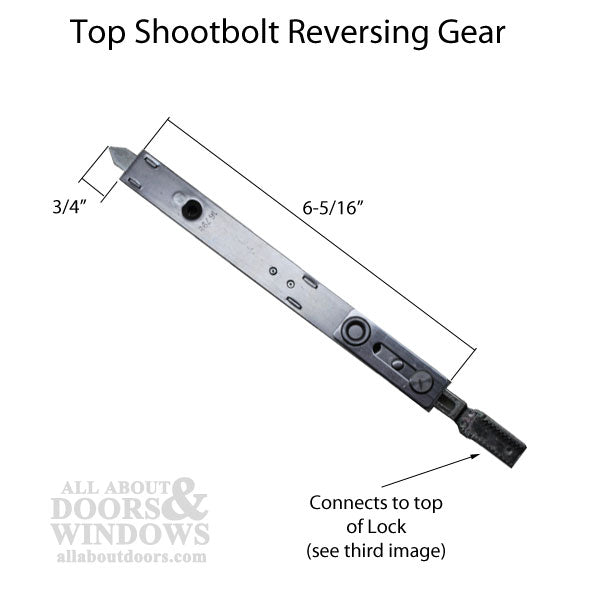

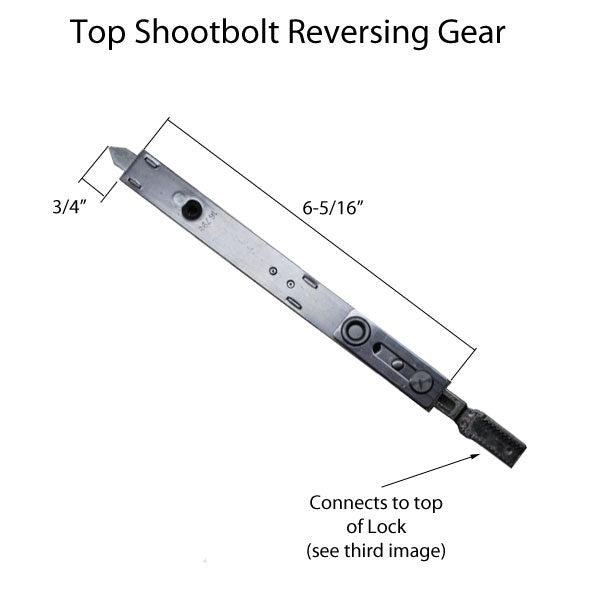

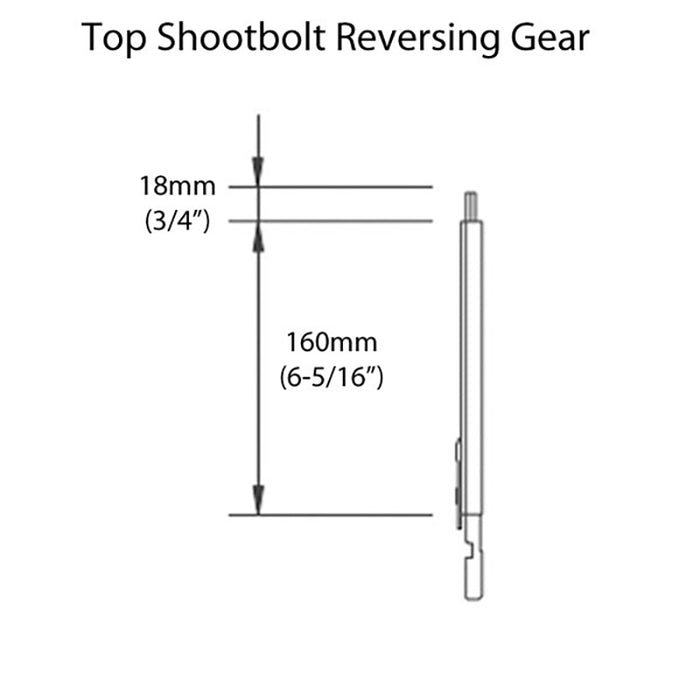

The unit measures 6-5/16 inches (160mm) in length with a bolt that extends 3/4 inch (19mm) when engaged. This component is compatible with all G-U locks that require a reversing gear, making it a versatile replacement option for various G-U multipoint lock configurations.

Technical Information

  • Length: 6-5/16 inches (160mm)
  • Bolt Extension: 3/4 inch (19mm)
  • Type: Top shootbolt reversing gear
  • Door Type: Active doors

Notes

  • Available in three finish options: Stainless Steel, Black, and Silver Ferguard
  • Select your preferred finish when ordering

Related Parts

  • 4990330 - Active Pella/GU 3-point Multipoint Lock Replacement Kit
  • 40325 - Middle extension 500mm
  • 40326 - Top shootbolt only

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What doors is this reversing gear compatible with?

This top shootbolt reversing gear works on all G-U locks that require a reversing gear, specifically designed for active doors in multipoint locking systems.

How far does the shootbolt extend?

The bolt extends 3/4 inch (19mm) when engaged, providing secure top-of-door locking.

What finish options are available?

This reversing gear is available in Stainless Steel, Black, and Silver Ferguard finishes to match your existing hardware.
