G-U Shootbolt Kit for Pella Doors – 50mm Backset, 92mm PZ

G-U Shootbolt Kit for Pella Doors – 50mm Backset, 92mm PZ

SKU

$581.72 - $628.90
$581.72
$581.72 - $628.90
$581.72
  • Backset: 2" (50mm)
  • PZ (Handle Spacing): 3-5/8" (92mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 35" (889mm)
  • Handle Spindle: 5/16" (8mm)
  • Overall Gear Length: 74-3/4" (1900mm)
  • Shootbolt Extension Length: 6-3/4" (160mm)
  • Door Height Capacity: Up to 81" (2057mm)
  • Cylinder Type: Standard 5-pin American cylinder
  • Available Colors: Silver Ferguard, Black, or Stainless Steel
  • 2-piece, 3-point lock system for active door
  • Gear is croppable for shorter door heights
  • Kit includes gear, top shootbolt, and bottom shootbolt
  • Reuse your existing handles and trim
  • Minor modifications may be required for installation
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

G-U Shootbolt Kit for Pella – 50/92 (4990330-KIT)

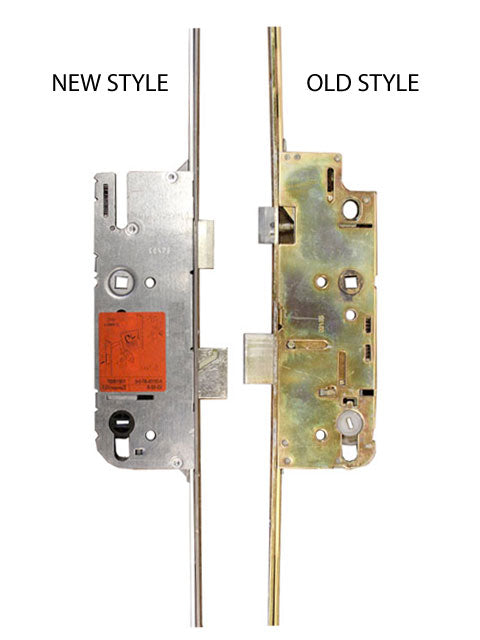

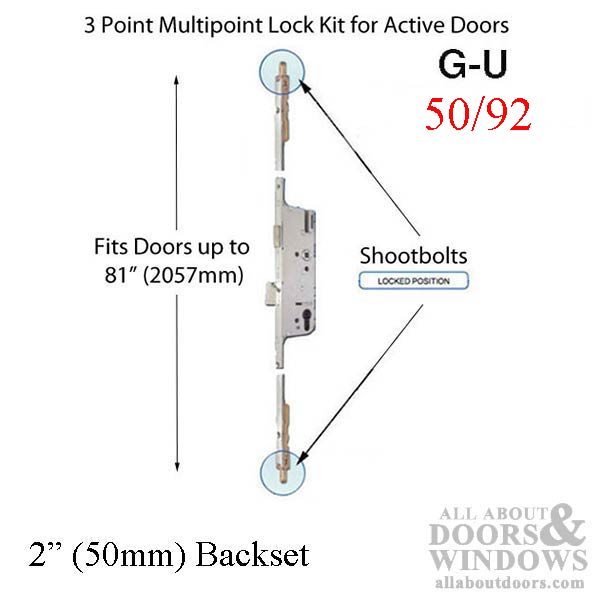

This G-U multipoint lock kit is designed as a replacement for Pella doors with shootbolt-style locking systems. The 2-piece, 3-point lock configuration provides secure locking at three points along the door edge, using top and bottom shootbolts combined with a central locking mechanism.

Configured with a 50mm backset and 92mm PZ (handle spacing), this kit fits doors up to 81 inches tall. For taller doors, an extension is available separately. The gear can also be cropped to accommodate shorter door heights, giving you flexibility during installation.

This kit includes the main gear, top shootbolt, and bottom shootbolt. You can reuse your existing handles and trim, making this a cost-effective replacement solution. The lock uses a standard 5-pin American cylinder for keying.

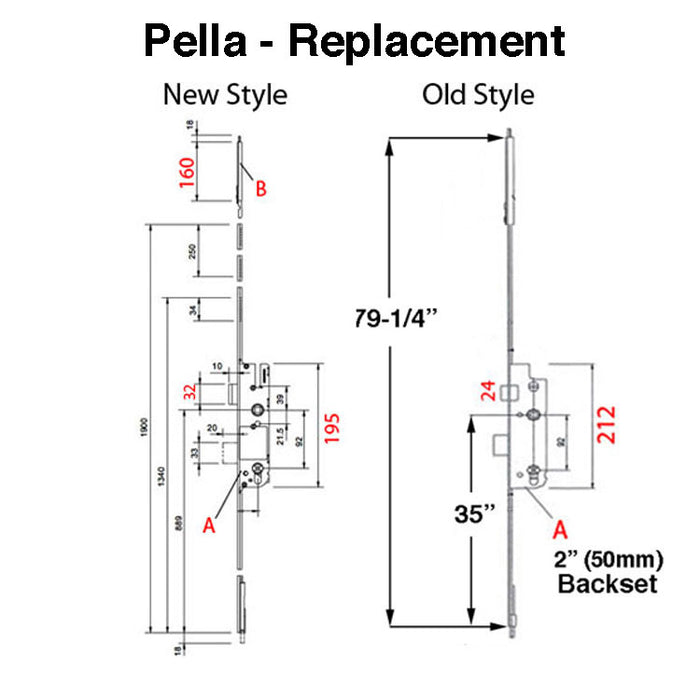

Technical Information

  • Backset: 2 inches (50mm)
  • PZ (Handle Spacing): 3-5/8 inches (92mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Handle Height: 35 inches (889mm)
  • Handle Spindle: 5/16 inch (8mm)
  • Overall Gear Length: 74-3/4 inches (1900mm)
  • Shootbolt Extension Length: 6-3/4 inches (160mm)
  • Maximum Door Height: 81 inches (2057mm)
  • Cylinder Type: Standard 5-pin American cylinder
  • Available Colors: Silver Ferguard, Black, Stainless Steel

Notes

  • Minor modifications may be required during installation
  • For active door only
  • Replacement doors may have different heights requiring adjustment
  • If door panel height is 77-1/4 inches, remove 4 inches from the new gear when in unlocked position
  • Replacement latch and deadbolt positions may differ slightly from original
  • File the hole in the bottom of the strike 1/8 to 3/8 inch on both latch and deadbolt openings
  • Enlarging the strike hole is recommended rather than moving the strike plate

Related Parts

  • 40325 - Middle Extension for doors over 81 inches
  • G-16798-00-0 - Top Shootbolt Tip only

Priced and sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is included in this shootbolt kit?

This kit includes the main gear, top shootbolt, and bottom shootbolt. You can reuse your existing handles and trim.

What if my door is taller than 81 inches?

For doors over 81 inches, you will need to purchase the middle extension (part 40325) separately.

Will I need to modify my door or frame during installation?

Minor modifications may be required. The replacement latch and deadbolt positions may differ slightly, so you may need to file the strike holes 1/8 to 3/8 inch to accommodate the new hardware.
