Hoppe Inactive Flushbolt for Double French Doors – 30mm Rod Backset, Polished Brass

SKU: 8787439

Sold out

$121.29 - $121.29

$121.29

$121.29 - $121.29

$121.29

Status: Discontinued – replaced by 8787443 in Stainless Steel
Faceplate Width: 3/4" (20mm) with radius ends
Finish: Polished Brass (F71)
Rod Backset: 1.18" (30mm) from edge of faceplate to center of rod
Rod Diameter: 5/16" (8mm) thread
Extended/Locked Position: 8.80" (223.5mm)
Retracted/Unlocked Position: 7.60" (193mm)
Overall Body Length: 9.84" (250mm)
Inactive flushbolt rod for double French doors
Rods may be cut to size if too long
Priced and sold each

Discontinued Replace with 8787443

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

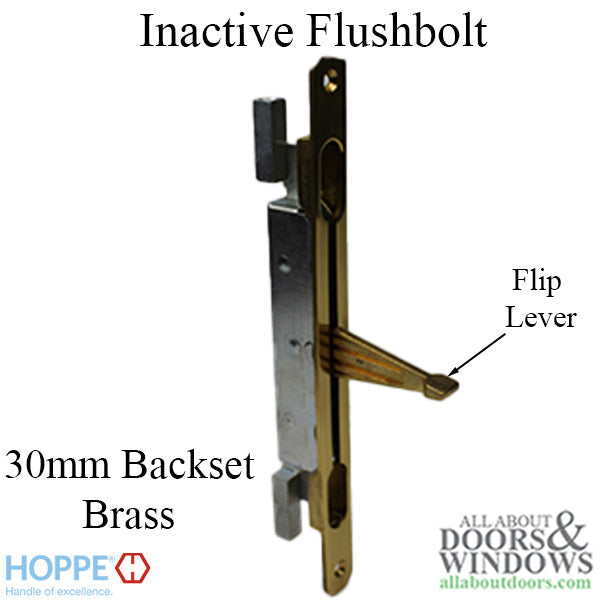

Hoppe Inactive Flushbolt – Polished Brass, 30mm Backset (8787439)

This Hoppe inactive flushbolt rod is designed for use on double French doors. It secures the inactive door panel at the top and bottom when the doors are closed and locked.

The flushbolt features a 3/4-inch (20mm) wide faceplate with radius ends in a polished brass finish (F71). The rod has a backset of 1.18 inches (30mm) measured from the edge of the faceplate to the center of the rod, with a 5/16-inch (8mm) threaded rod diameter.

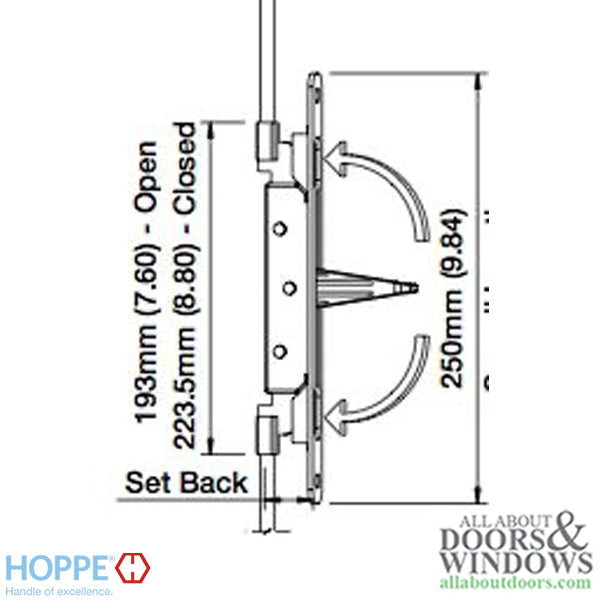

When extended in the locked position, the rods measure 8.80 inches (223.5mm). In the retracted or unlocked position, they measure 7.60 inches (193mm). The overall flushbolt body length is 9.84 inches (250mm).

Technical Information

Faceplate Width: 3/4 inch (20mm)
Faceplate End Style: Radius
Finish: Polished Brass (F71)
Rod Backset: 1.18 inches (30mm)
Rod Diameter: 5/16 inch (8mm) thread
Extended/Locked Length: 8.80 inches (223.5mm)
Retracted/Unlocked Length: 7.60 inches (193mm)
Overall Body Length: 9.84 inches (250mm)

Notes

This item is discontinued
Multiple options available for rod backset: 0.94 inches (24mm), 1.02 inches (26mm), or 1.18 inches (30mm)
Rod diameter options: 5/16 inch (8mm) or 3/8 inch (10mm)
Top and bottom rods may be cut to size if too long
To determine bottom rod length: Handle height minus 4.8125 inches plus rod length equals handle height
To determine top rod length: Handle height plus 2.5 inches plus rod length equals door panel handle height
Add rod lengths plus 7.3125 inches to get overall door panel length

Replaces / Replaced by

Replaced by 8787443 in Stainless Steel

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the correct rod length for my door?

For the bottom rod, take your handle height minus 4.8125 inches plus the rod length. For the top rod, take your handle height plus 2.5 inches plus the rod length. Rods can be cut to size if they are too long.

What is the replacement for this discontinued flushbolt?

This polished brass flushbolt (8787439) has been replaced by part number 8787443, which is available in Stainless Steel finish.

What is the rod backset measurement?

The rod backset is 1.18 inches (30mm), measured from the edge of the faceplate to the center of the rod.
