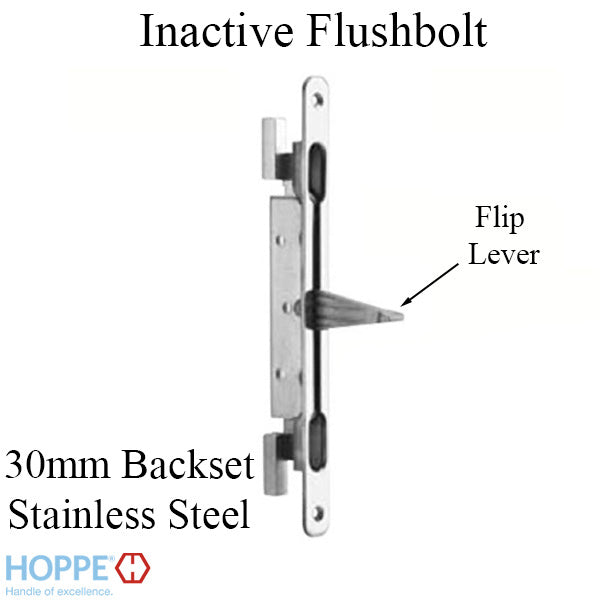

Hoppe Inactive Flushbolt for Double French Doors – 30mm Rod Backset, Brushed Stainless

SKU: 8787443

$123.21 - $123.21

$123.21

$123.21 - $123.21

$123.21

Faceplate Width: 3/4" (20mm)
Faceplate End: Radius

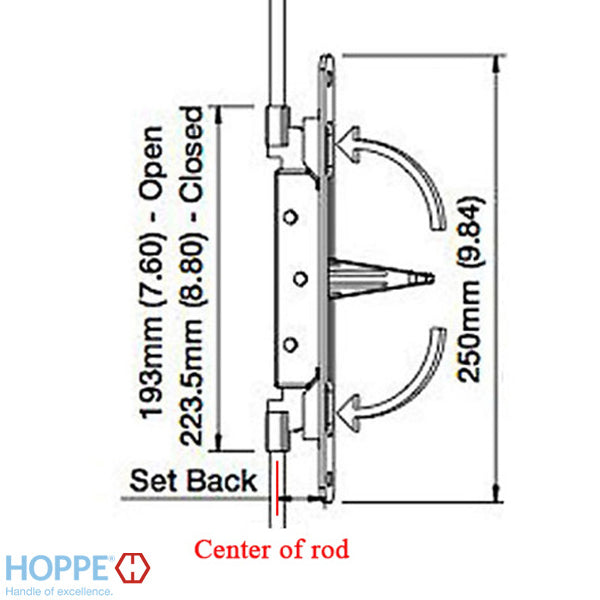

Rod Backset: 1.18" (30mm) from edge of faceplate to center of rod
Rod Diameter: 5/16" (8mm)
Rods Extended/Locked: 8.80" (223.5mm)
Rods Retracted/Unlocked: 7.60" (193mm)
Overall Body Length: 9.84" (250mm)
Finish: Brushed Stainless (F69)
For use on double French doors
Top and bottom rods may be cut to size if too long
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Inactive Flushbolt – 30mm Rod Backset, Brushed Stainless (8787443)

This Hoppe inactive flushbolt rod is designed for use on double French doors. The flushbolt secures the inactive door panel at the top and bottom when the active door is in use, providing reliable security and smooth operation.

This particular configuration features a brushed stainless finish (F69) with a radius faceplate end. The rod backset measures 1.18 inches (30mm) from the edge of the faceplate to the center of the rod, with a rod diameter of 5/16 inch (8mm).

Technical Information

Faceplate Width: 3/4 inch (20mm)
Faceplate End: Radius
Rod Backset: 1.18 inches (30mm)
Rod Diameter: 5/16 inch (8mm)
Rods Extended/Locked Position: 8.80 inches (223.5mm)
Rods Retracted/Unlocked Position: 7.60 inches (193mm)
Overall Flushbolt Body Length: 9.84 inches (250mm)
Finish: Brushed Stainless (F69)
Country of Origin: Germany

Notes

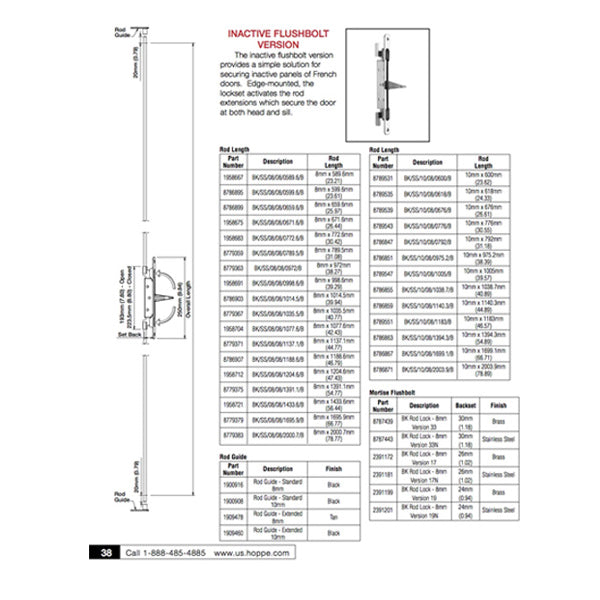

Multiple options available for this flushbolt series including brass or brushed stainless finish
Rod backset options: 0.94 inch (24mm), 1.02 inch (26mm), or 1.18 inches (30mm)
Rod diameter options: 5/16 inch (8mm) or 3/8 inch (10mm)
Rod length varies and rods are not included with this flushbolt body
Top and bottom rods may be cut to size if too long
To determine bottom rod length: Handle height minus 4.8125 inches plus rod length equals handle height
To determine top rod length: Handle height plus 2.5 inches plus rod length equals door panel handle height
Add rod lengths plus 7.3125 inches to get overall door panel length

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Are the rods included with this flushbolt?

No, the rods are sold separately. This listing is for the flushbolt body only. Rod lengths vary based on your door configuration.

How do I determine the correct rod length for my door?

For the bottom rod: subtract 4.8125 inches from your handle height, then add the rod length. For the top rod: add 2.5 inches to your handle height, then add the rod length. Rods can be cut to size if too long.

What configuration options are available for this flushbolt?

This flushbolt is available in brass or brushed stainless finish, with rod backset options of 24mm, 26mm, or 30mm, and rod diameter options of 8mm or 10mm.
