Hoppe Manual Top Extension – 16mm Faceplate, 37.20" Tongue, 61.81" Length

Hoppe Manual Top Extension – 16mm Faceplate, 37.20" Tongue, 61.81" Length

SKU 8778559

$71.24 - $71.24
$71.24
$71.24 - $71.24
$71.24
  • Faceplate Width: 5/8" (16mm)
  • Top Tongue Position: 37.20" (945mm)
  • Extension Length: 61.81" (1570mm)
  • Maximum Cutoff: 20.28" (515mm)
  • Number of Screws: 10
  • Material: Stainless Steel
  • Top section only with manual tongue – does not include bottom assembly with gearbox
  • When paired with lower assembly, fits doors 79.13" to 99.41" tall with 36" handle height
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe 16mm Manual Top Extension – 61.81" (8778559)

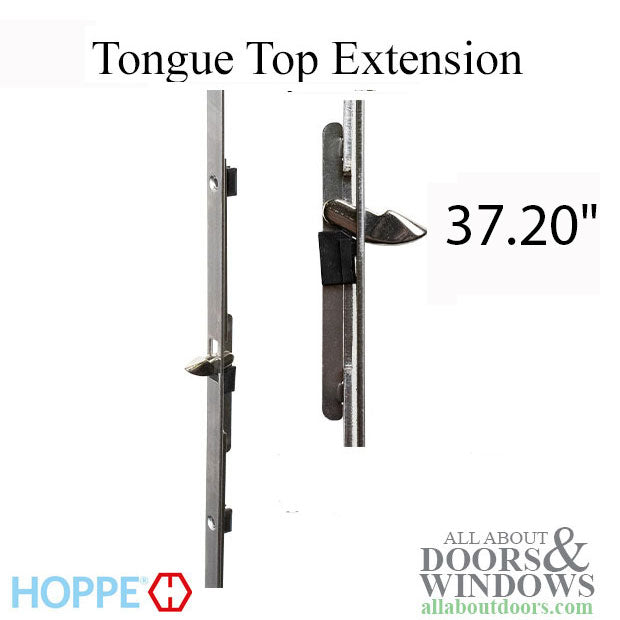

This Hoppe 16mm Manual Top Extension features a tongue positioned at 37.20 inches (945mm) from the bottom of the extension, with an overall length of 61.81 inches (1570mm). Designed for multipoint door lock systems, this top section includes a manual tongue mechanism and a stainless steel faceplate measuring 5/8 inch (16mm) wide.

This is the top section only and does not include the bottom assembly with gearbox. You will need to purchase the lower assembly separately to complete your multipoint lock system.

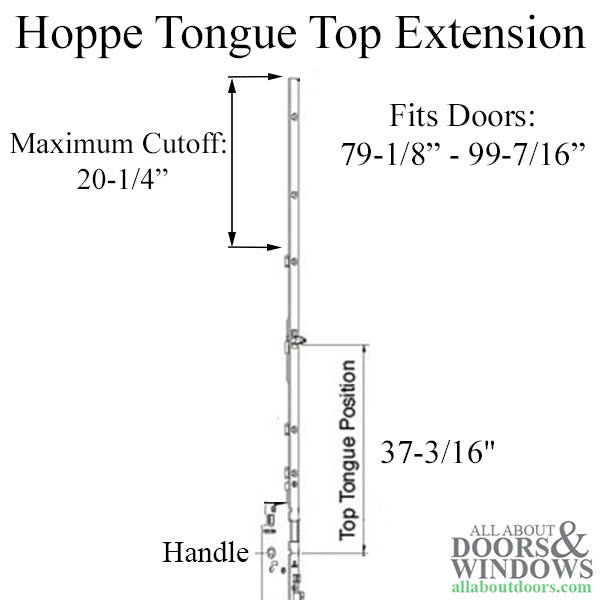

The extension can be cut down by a maximum of 20.28 inches (515mm) to accommodate different door heights. When both the upper and lower assemblies are connected, this configuration fits doors ranging from 79.13 inches to 99.41 inches tall with a 36-inch handle height. The overall measurement from handle to top of door is 63.43 inches when using a 36-inch handle height.

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Top Tongue Position: 37.20 inches (945mm)
  • Extension Length: 61.81 inches (1570mm)
  • Maximum Cutoff: 20.28 inches (515mm)
  • Number of Screws: 10
  • Material: Stainless Steel

Notes

  • Top section only – bottom assembly with gearbox sold separately
  • Door height range (with lower assembly): 79.13 inches to 99.41 inches
  • Handle to top of door: 63.43 inches (with 36-inch handle height)

Related Parts

  • 2333474 - Hoppe Top Extension with Tongue 37.79"
  • 8778551 - Hoppe Top Extension with Tongue 48.03"
  • 8778555 - Hoppe Top Extension with Tongue 54.92"
  • 8778563 - Hoppe Top Extension with Tongue 68.70"
  • 8778567 - Hoppe Top Extension with Tongue 75.59"

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this extension include the bottom assembly with gearbox?

No, this is the top section only. The bottom assembly with gearbox must be purchased separately to complete your multipoint lock system.

What door heights does this extension fit?

When paired with the lower assembly, this extension fits doors from 79.13 inches to 99.41 inches tall with a 36-inch handle height. The top can be cut down by up to 20.28 inches to adjust for different door heights.

How do I know which tongue position I need?

The tongue position (37.20 inches on this model) determines where the locking point engages with your door frame. Measure your existing extension or consult your door specifications to ensure proper fit.
