Trilennium 3020 Inactive Panel Multi-Point Shootbolt Lock – 6' 8" Door, Bronze

Trilennium 3020 Inactive Panel Multi-Point Shootbolt Lock – 6' 8" Door, Bronze

SKU 499130031

$560.00 - $560.00
$560.00
$560.00 - $560.00
$560.00
  • Series: Trilennium 3020 Inactive Panel Multi-Point Shootbolt Lock
  • Door Size: 6' 8" (2032mm) – custom sized to fit door panel height
  • Backset: 2-3/8" (60mm) standard; 2-3/4" (70mm) available with upcharge
  • Handle Height: 35" (889mm) and 36" (914mm) most common
  • Handing: Non-handed – fits right or left-handed doors
  • Finish: Bronze
  • Compatible Handleset: 40065 – Trilennium Peachtree Passive T-Turn Drive
  • Lead Time: 2 weeks (non-stock item)
  • Important: Not compatible with Evolved Strike Plate System – use original Trilennium strike plates only
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium 3020 Inactive Panel Lock – 6' 8" Door, Bronze (499130031)

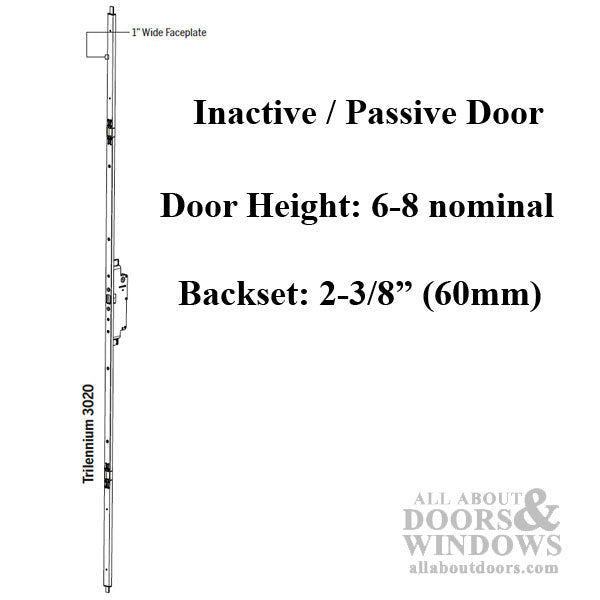

This Trilennium 3020 series inactive panel multi-point shootbolt lock is designed for 6 feet 8 inch doors. The passive lock is custom sized to fit your specific door panel height, providing a secure multi-point locking solution for inactive door panels.

This lock is non-handed, meaning it can be installed on either right-handed or left-handed doors without modification. The standard backset is 2-3/8 inches (60mm), with a 2-3/4 inch (70mm) option available for an additional charge.

Important Compatibility Notice

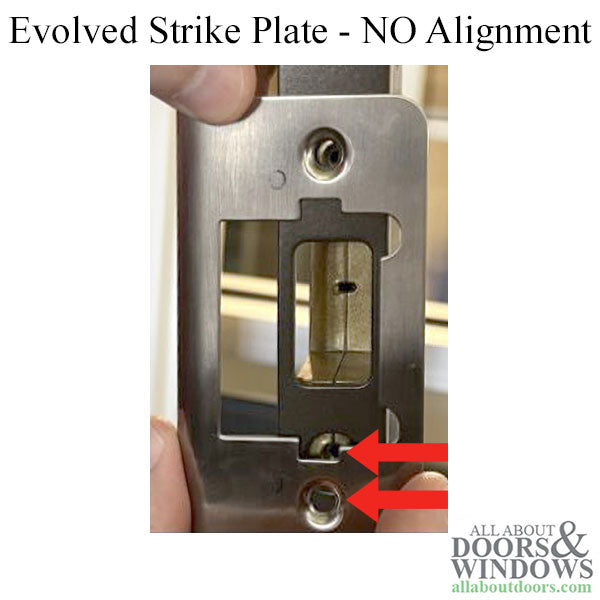

Endura Products has issued an alert regarding the Trilennium TL3020 Multi-Point Locking System. The new Evolved Strike Plate System is not compatible with this lock. The mounting holes on the Evolved Strike Plate do not align with the ports around the TL3020 bolt receivers used to secure the strike plates. Endura will continue to support these locks with the original Trilennium strike plates only.

Note: For all other Trilennium active locking systems (TL3000, TL3070, and TL3500), customers should use the new Evolved Strike Plates.

Technical Information

  • Series: Trilennium 3020
  • Type: Inactive Panel Multi-Point Shootbolt Lock
  • Door Size: 6 feet 8 inches (2032mm)
  • Backset: 2-3/8 inches (60mm) standard; 2-3/4 inches (70mm) available
  • Common Handle Heights: 35 inches (889mm) and 36 inches (914mm)
  • Handing: Non-handed
  • Finish: Bronze

Notes

  • Custom sized to fit door panel height – specify exact door panel size when ordering
  • Specify desired handle height when ordering
  • Specify backset when ordering (2-3/8" standard or 2-3/4" with upcharge)
  • Non-stock item with 2-week standard lead time

Related Parts

  • 40065 – Trilennium Peachtree Passive T-Turn Drive, 3020 Series Handle Set
  • 499130059 – Strike plates for this lock

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What information do I need to provide when ordering this lock?

You need to specify the exact size of your door panel, your desired handle height (35 inches and 36 inches are most common), and your backset preference (2-3/8 inches standard or 2-3/4 inches with upcharge).

Can I use the new Evolved Strike Plates with this lock?

No, the Evolved Strike Plate System is not compatible with the TL3020 lock. The mounting holes do not align properly. You must use the original Trilennium strike plates with this lock.

Is this lock handed for left or right doors?

This lock is non-handed, meaning it can be installed on either right-handed or left-handed doors without any modifications.
