Trilennium Peachtree Passive T-Turn Handleset – 3020 Series, Non-Keyed, 1-3/4" Door

Trilennium Peachtree Passive T-Turn Handleset – 3020 Series, Non-Keyed, 1-3/4" Door

SKU

$214.58 - $398.86
$214.58
$214.58 - $398.86
$214.58

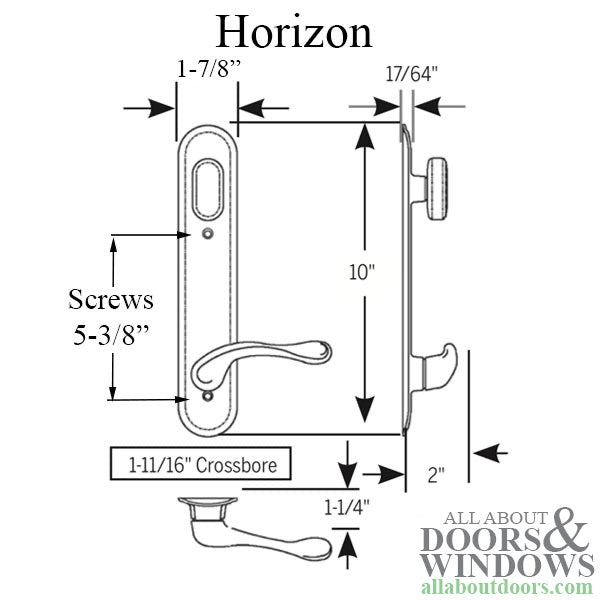

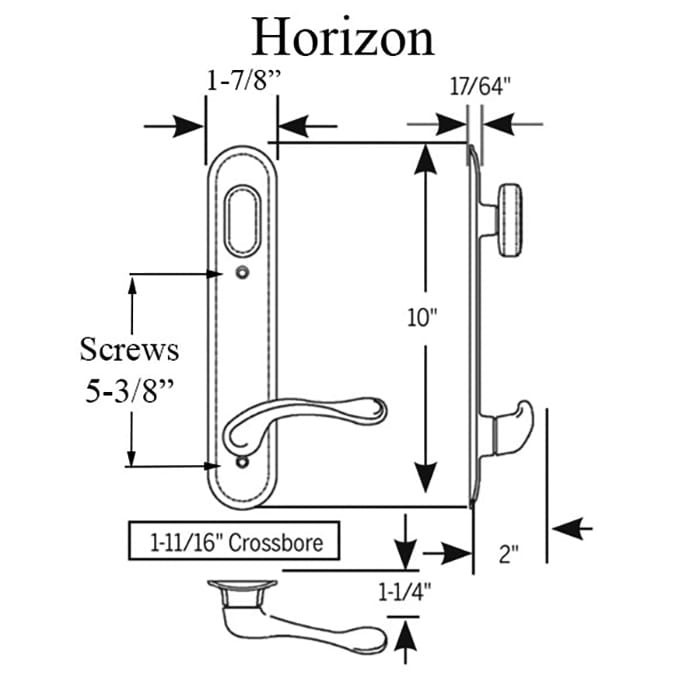

  • Application: Inactive/Passive door handle for Peachtree Citadel IPD doors
  • PZ (Handle to Cylinder Distance): 6" (152.4mm)
  • Door Thickness: 1-3/4" (45mm)
  • Lock Cross Bore: Fits 1-11/16" (42.9mm)
  • Escutcheon Plate: 1-7/8" (47.6mm) wide x 10" (254mm) tall
  • Installation Screw Holes: 5-3/8" (136.5mm)
  • Handle Projection: 2-9/32" (58mm)
  • Keyway: None (non-keyed)
  • Style: Traditional
  • Used ONLY with the 3020 Passive Multipoint lock operated by thumb turn
  • Lever handles do NOT move on this handleset
  • Available Colors: Bright Brass, Victorian Bronze, Satin Nickel
  • For 2-1/4" (57mm) doors, order conversion kit 40039-SC1 or 40039-WR separately
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium Peachtree Passive T-Turn Handleset (40065)

This Trilennium passive T-turn drive handleset is designed specifically for Peachtree Citadel IPD doors. It features a traditional style with a non-keyed configuration, making it ideal for inactive or passive door applications in multipoint lock systems.

This handleset is used exclusively with the 3020 Passive Multipoint lock, which operates via the thumb turn mechanism. Note that the lever handles on this set do not move during operation.

Technical Information

  • PZ (Handle to Cylinder Distance): 6 inches (152.4mm)
  • Door Thickness: 1-3/4 inches (45mm)
  • Lock Cross Bore: Fits 1-11/16 inches (42.9mm)
  • Escutcheon Plate Width: 1-7/8 inches (47.6mm)
  • Escutcheon Plate Height: 10 inches (254mm)
  • Installation Screw Holes: 5-3/8 inches (136.5mm)
  • Handle Projection: 2-9/32 inches (58mm)
  • Keyway: None
  • Style: Traditional
  • Series: 3020

Notes

  • Available colors: Bright Brass, Victorian Bronze, Satin Nickel
  • TriLast finish available in Satin Nickel and Victorian Bronze
  • For 2-1/4 inch (57mm) thick doors, order conversion kit 40039-SC1 (Schlage keyway) or 40039-WR (Weiser keyway)
  • W&F Trilennium Part Numbers for 1-3/4 inch doors: HORL-THT-PB-175 (Bright Brass), HORL-THT-SN-175 (Satin Nickel), HORL-THT-VB-175 (Victorian Bronze), HORL-THT-SNTL-175 (Satin Nickel TriLast), HORL-THT-VBTL-175 (Victorian Bronze TriLast)

Related Parts

  • 40039-SC1 - Conversion kit for 2-1/4 inch doors (Schlage keyway)
  • 40039-WR - Conversion kit for 2-1/4 inch doors (Weiser keyway)

For more information, visit the W&F Trilennium Hardware page.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will the lever handles move when I operate this handleset?

No, the lever handles on this passive handleset do not move. The 3020 Passive Multipoint lock is operated solely by the thumb turn mechanism.

Can I use this handleset on a 2-1/4 inch thick door?

This handleset is designed for 1-3/4 inch doors. For 2-1/4 inch doors, you will need to order a conversion kit (40039-SC1 for Schlage keyway or 40039-WR for Weiser keyway) separately.

What doors is this handleset compatible with?

This handleset is designed specifically for Peachtree Citadel IPD doors and is used only with the 3020 Passive Multipoint lock system.
