Trilennium 3000 Series Multipoint Lock – 60mm Backset, Locking Latch Bolts

Trilennium 3000 Series Multipoint Lock – 60mm Backset, Locking Latch Bolts

SKU

$0.00 - $495.00
$0.00
$0.00 - $495.00
$0.00

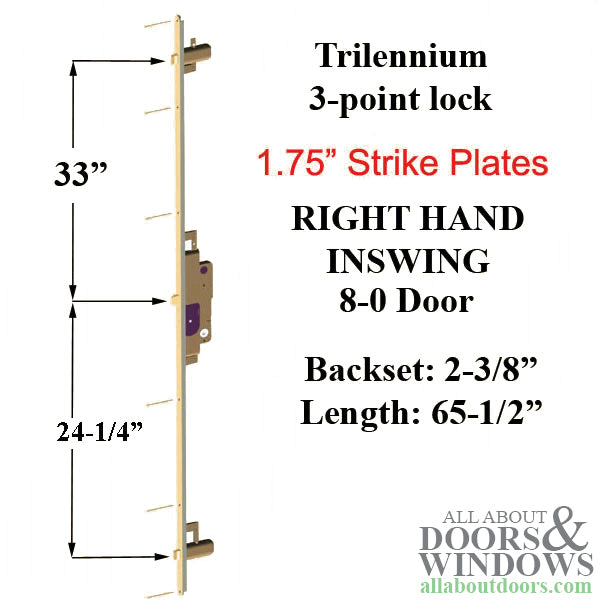

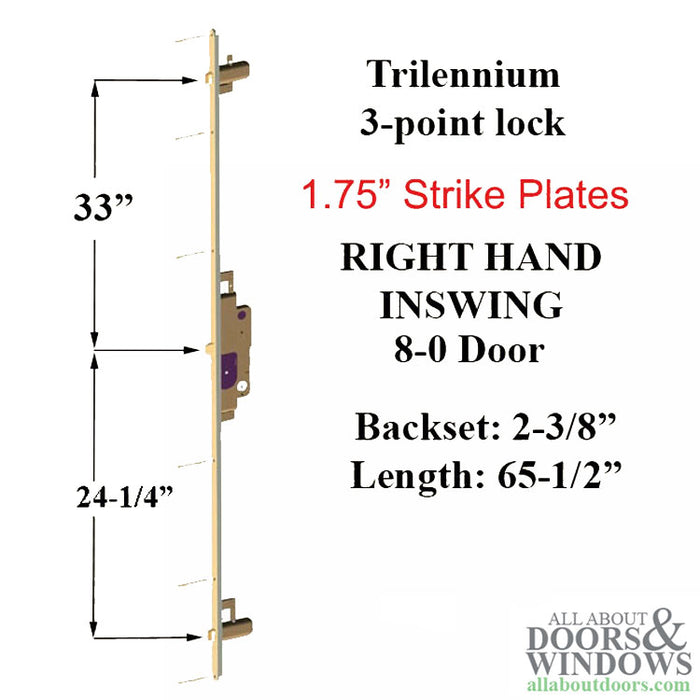

  • Backset: 2-3/8" (60mm)
  • Faceplate Width: 1" (25.4mm)
  • Faceplate Length: 65-1/2" (1410mm) with radius ends
  • Deadbolt Throw: 15/16" (23.8mm)
  • Top Latching Bolt: 33" (838mm) from center bolt
  • Bottom Latching Bolt: 24-1/4" (616mm) from center bolt
  • Spindle Diameter: 1/4" (7mm)
  • Cylinder Type: American with flat tailpiece (not included)
  • Crossbore Options: 2-1/8" standard or 1-11/16" optional
  • Available Finishes: Polished Brass, Victorian Bronze, Stainless Steel
  • Handing: Right-hand inswing (reversible)
  • Panic Release: Yes, pressing inside handle unlocks door
  • Strike kit and accessories included
  • Priced and sold each
Limited Inventory
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium 3000 Multipoint Lock (499130014)

The Trilennium 3000 Series Multi-Point Lock features locking latch bolts and provides secure multi-point engagement for residential entry doors. This lock assembly comes complete with strike plates and accessories, offering reliable security with panic release functionality.

All locks are configured for inswing doors. If you have an outswing door, the panic function must be checked before installation. The handle operates in a downward motion only. To lock, use the key or thumb turn to extend the latch to deadbolt function. To unlock from outside, use the key; from inside, use the thumb turn or lever. The panic release feature allows the inside handle to unlock the door when pressed down.

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • Faceplate Width: 1 inch (25.4mm)
  • Faceplate Length: 65-1/2 inches (1410mm) with radius ends
  • Deadbolt Throw: 15/16 inch (23.8mm)
  • Top Latching Bolt: 33 inches (838mm) from center bolt
  • Bottom Latching Bolt: 24-1/4 inches (616mm) from center bolt
  • Spindle Diameter: 1/4 inch (7mm)
  • Cylinder Type: American with flat tailpiece (not included)
  • Standard Crossbore: 2-1/8 inches (for Pinnacle, Eclipse, and Grip hardware)
  • Optional Crossbore: 1-11/16 inches (for Europa, Horizon, and Emtek hardware)
  • Handing: Right-hand inswing (reversible)

Notes

  • Available in three finishes: Polished Brass, Victorian Bronze, and Stainless Steel
  • Handing is determined by hinge location as viewed from outside - if hinge is on left, it is a left-hand door
  • The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
  • Lock assembly only - no additional hardware included beyond strike kit and accessories

Replaces / Replaced by

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be used on an outswing door?

All locks are set up for inswing doors. If you have an outswing door, the panic function needs to be checked before installation.

How do I determine the handing for my door?

As viewed from outside, the hinge location determines handing. If the hinge is on the left, it is a left-hand door. This lock is reversible if needed.

What hardware is compatible with this lock?

The standard 2-1/8 inch crossbore works with Pinnacle, Eclipse, and Grip hardware. The optional 1-11/16 inch crossbore works with Europa, Horizon, and Emtek hardware.
