Endura Trilennium 3000 Multipoint Lock – 60mm Backset, Locking Latch Bolts

Endura Trilennium 3000 Multipoint Lock – 60mm Backset, Locking Latch Bolts

SKU

$330.00 - $597.62
$330.00
$330.00 - $597.62
$330.00

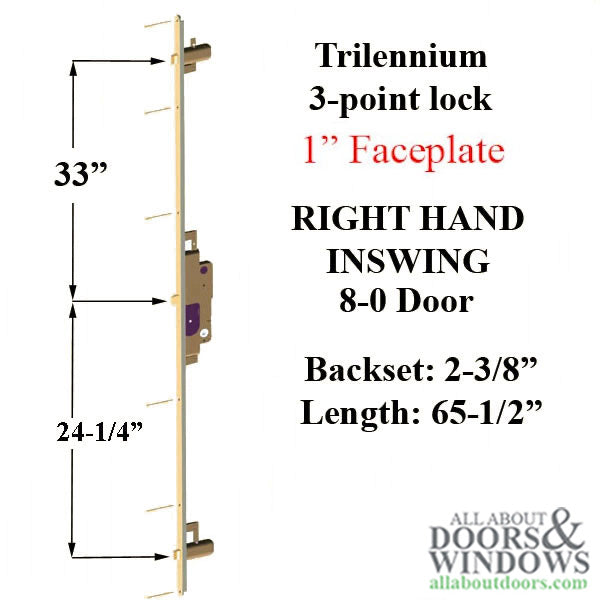

  • Backset: 2-3/8" (60mm)
  • Faceplate Width: 1" (25.4mm)
  • Faceplate Length: 65-1/2" (1410mm) with radius ends
  • Deadbolt Throw: 15/16" (23.8mm)
  • Top Latching Bolt: 33" (838mm) from center bolt
  • Bottom Latching Bolt: 24-1/4" (616mm) from center bolt
  • Spindle Diameter: 1/4" (7mm)
  • Cylinder Type: American with flat tailpiece (not included)
  • Crossbore Options: Standard 2-1/8" or optional 1-11/16"
  • Handing: Right-hand inswing (reversible)
  • Panic Release: Yes, inside handle unlocks door
  • Available Finishes: Polished Brass, Victorian Bronze, Stainless Steel
  • Strike kit and accessories ordered separately
  • Sold as lock only
Limited Inventory
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Endura Trilennium 3000 Multipoint Lock (499130004)

The Endura Trilennium 3000 Series Multipoint Lock features locking latch bolts for enhanced security on residential entry doors. This multipoint lock system includes a center deadbolt with top and bottom latching bolts that engage simultaneously when locked.

All locks are configured for inswing doors. If you have an outswing door, the panic function must be checked before installation. The panic release feature allows the inside handle to unlock the door when pressed down, providing safe egress in emergencies.

The lock operates with a downward handle motion only. To lock, use the key or thumb turn to extend the latch to deadbolt function. To unlock from outside, use the key; from inside, use the thumb turn or lever.

Technical Information

  • Backset: 2-3/8 inches (60mm)
  • Faceplate Width: 1 inch (25.4mm)
  • Faceplate Length: 65-1/2 inches (1410mm) with radius ends
  • Deadbolt Throw: 15/16 inch (23.8mm)
  • Top Latching Bolt Position: 33 inches (838mm) from center bolt
  • Bottom Latching Bolt Position: 24-1/4 inches (616mm) from center bolt
  • Spindle Diameter: 1/4 inch (7mm)
  • Cylinder Type: American with flat tailpiece (not included)
  • Handing: Right-hand inswing (reversible)

Notes

  • Standard Trilennium Crossbore: 2-1/8 inches (use Pinnacle, Eclipse, and Grip hardware)
  • Optional Crossbore: 1-11/16 inches (use Europa, Horizon, and Emtek hardware)
  • The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
  • Available Faceplate Finishes: Polished Brass, Victorian Bronze, Stainless Steel
  • Strike kit and accessories not included, ordered separately

Sold as multipoint lock only.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the handing for this lock?

As viewed from outside, the hinge determines handing. If the hinge is on the right side, it is a right-hand door. This lock can be reversed if needed.

What cylinder does this lock use?

This lock uses an American cylinder with a flat tailpiece. The cylinder is not included and must be ordered separately.

What crossbore size do I need?

The standard Trilennium crossbore is 2-1/8 inches for Pinnacle, Eclipse, and Grip hardware. An optional 1-11/16 inch crossbore works with Europa, Horizon, and Emtek hardware.
