GU Tripact Europa 3-Point Multipoint Lock – 92mm PZ, Tongue Version

SKU

$176.01 - $407.82

$176.01

$176.01 - $407.82

$176.01

PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
Available Backsets: 1-3/16" (30mm), 1-3/8" (35mm), 1-9/16" (40mm), 1-3/4" (45mm), 2" (50mm), 2-5/32" (55mm)
Faceplate Width: 5/8" (16mm)
Handle Position: Key below handle (Europa style)
Handle Height: 35" (889mm) standard
Top Tongue Position: 23-3/16" (589mm) up from handle
Bottom Tongue Position: 23-7/8" (607mm) down from handle
Door Height: For doors up to 82" tall
Cylinder: American cylinder system with 90° turn
Spindle Size: 8mm square
Faceplate Finish: Silver ferguard or black
Non-handed, latch easily reversible
Croppable for shorter doors; extensions available for taller doors
Sold as main lock body with tongue latches

Quantity

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

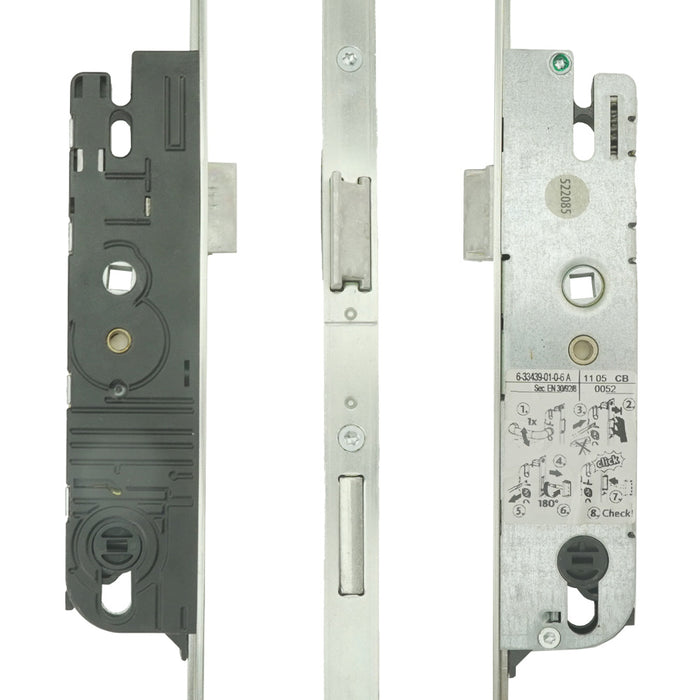

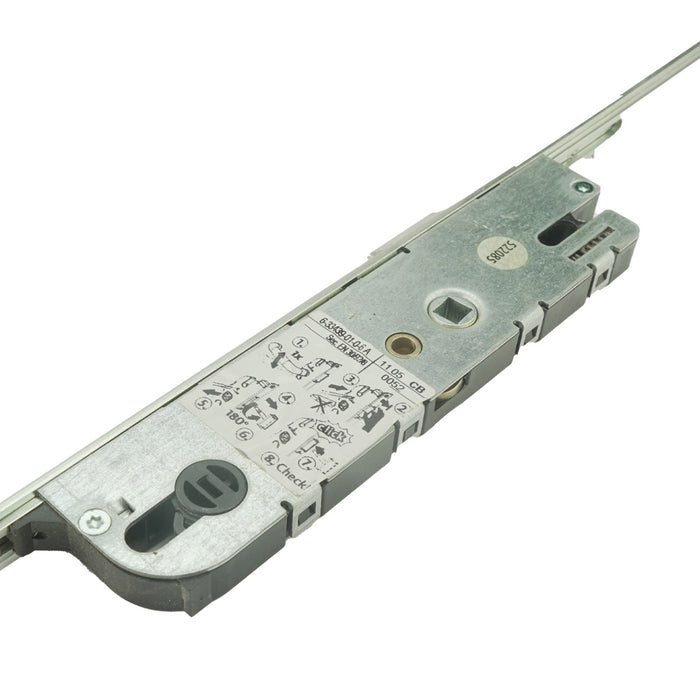

GU Tripact Europa 3-Point Lock – 92mm PZ (49903017)

This GU Tripact Europa Series 3-point locking gear provides robust security for multipoint door systems. The tongue version locks horizontally at both the top and bottom of the door panel, offering enhanced protection against forced entry and door panel warping.

The lock features heavy-duty tongue bolts along with a deadbolt and latch, all controlled by a single lever mechanism. It uses an American cylinder system with a 90-degree turn of the key or thumbturn, compatible with Schlage "C" keyway systems. The Europa configuration places the key cylinder below the handle, with a standard handle height of 35 inches.

This multipoint lock is designed for doors up to 82 inches tall. It can be cropped for shorter doors and extended for taller applications using optional extensions (sold separately). The non-handed design allows the latch to be easily reversed during installation.

Technical Information

Series: Europa - Tripact Door Lock Gear
Function: Tongue version, horizontal locking at top and bottom
PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
Available Backsets: 1-3/16 inches (30mm), 1-3/8 inches (35mm), 1-9/16 inches (40mm), 1-3/4 inches (45mm), 2 inches (50mm), 2-5/32 inches (55mm)
Faceplate Width: 5/8 inches (16mm)
Handle Height: 35 inches (889mm) standard
Top Tongue Position: 23-3/16 inches (589mm) up from handle
Bottom Tongue Position: 23-7/8 inches (607mm) down from handle
Door Height: Up to 82 inches
Cylinder Type: American cylinder with 90° turn
Spindle Size: 8mm square
Faceplate Finish: Silver ferguard or black

Notes

Non-handed design with easily reversible latch
Heavy-duty mortise construction with reinforced lever return spring system
Croppable for shorter doors
Extensions available for taller door applications
Installation screws sold separately (see 6-U0050-00-0)

Related Parts

40325 - 500mm Extension without Lock Point (G-16790-05-0-1)
6-33279-05-0-1 - 750mm Extension with Lock Point
6-U0050-00-0 - Installation Screws

Priced and sold as main lock body with tongue latches on top and bottom.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be used on left-hand and right-hand doors?

Yes, this lock is non-handed and the latch can be easily reversed during installation to accommodate either door swing direction.

What if my door is taller than 82 inches?

For taller doors, you can add the 750mm extension with lock point (part 6-33279-05-0-1) to extend the locking system.

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This lock has a 92mm PZ measurement.
