Ferco Shootbolt Extension for Doors Over 81" – 500mm Length, 16mm Faceplate

Ferco Shootbolt Extension for Doors Over 81" – 500mm Length, 16mm Faceplate

SKU

$27.23 - $45.45
$27.23
$27.23 - $45.45
$27.23
  • Faceplate Width: 5/8" (16mm)
  • Extension Length: 19-5/8" (500mm)
  • Maximum Cutoff: 10" (250mm)
  • For Doors: Greater than 81" (2057mm)
  • Available Finishes: Stainless steel, Ferguard silver, or black
  • Compatible With: Pella, Atrium, Superior, and other multipoint systems
  • If door is over 101" (2565mm), two shootbolt extensions are required
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Ferco Shootbolt Extension – 500mm (G-16790-05-0)

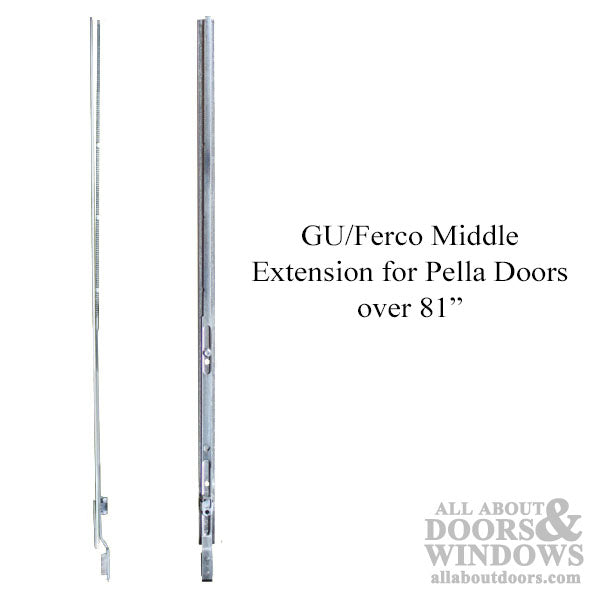

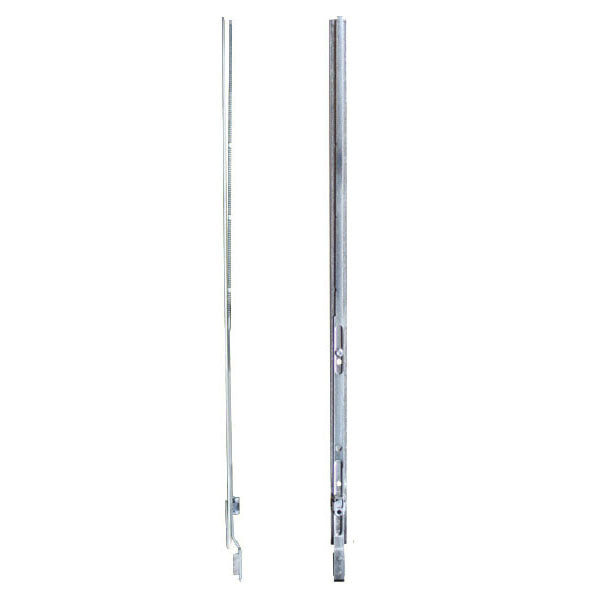

This Ferco shootbolt extension is designed for taller multipoint door systems exceeding 81 inches in height. It extends the reach of your multipoint lock's shootbolt mechanism, ensuring proper engagement with the door frame on doors that are too tall for standard lock configurations.

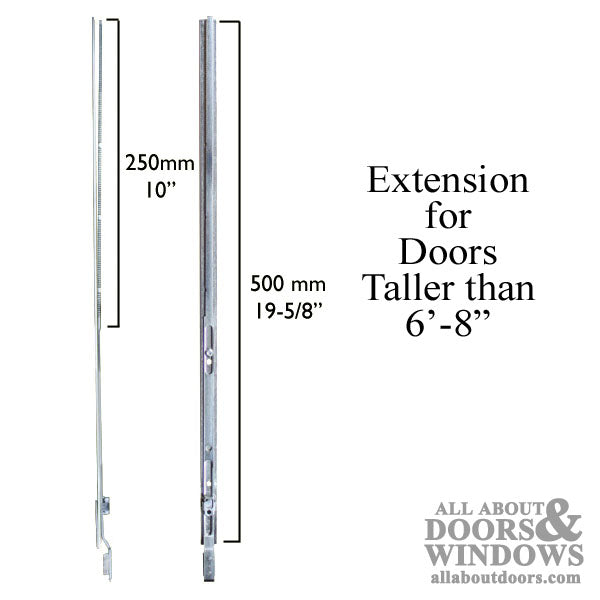

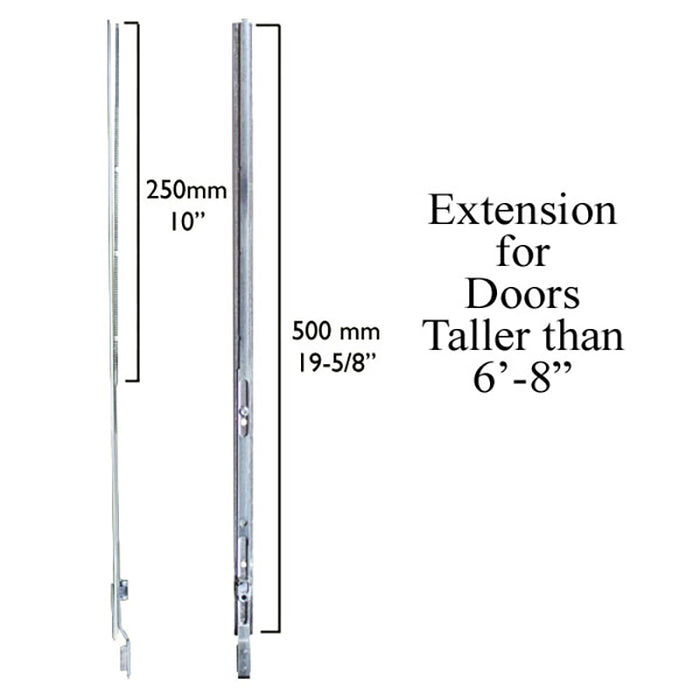

The extension measures 19-5/8 inches (500mm) in length and features a 5/8-inch (16mm) wide faceplate. It can be cut down by up to 10 inches (250mm) to accommodate your specific door height requirements.

This shootbolt extension is compatible with Pella, Atrium, Superior, and other multipoint door systems that use the Ferco lock platform.

Technical Information

  • Extension Length: 19-5/8 inches (500mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Maximum Cutoff: 10 inches (250mm)
  • For Door Heights: Greater than 81 inches (2057mm)
  • Original Manufacturer SKU: G-16790-05-0

Notes

  • Available in stainless steel, Ferguard silver, or black finishes

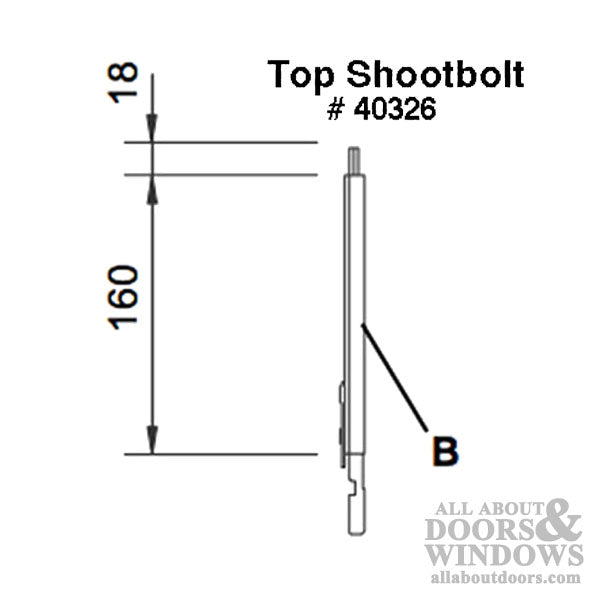

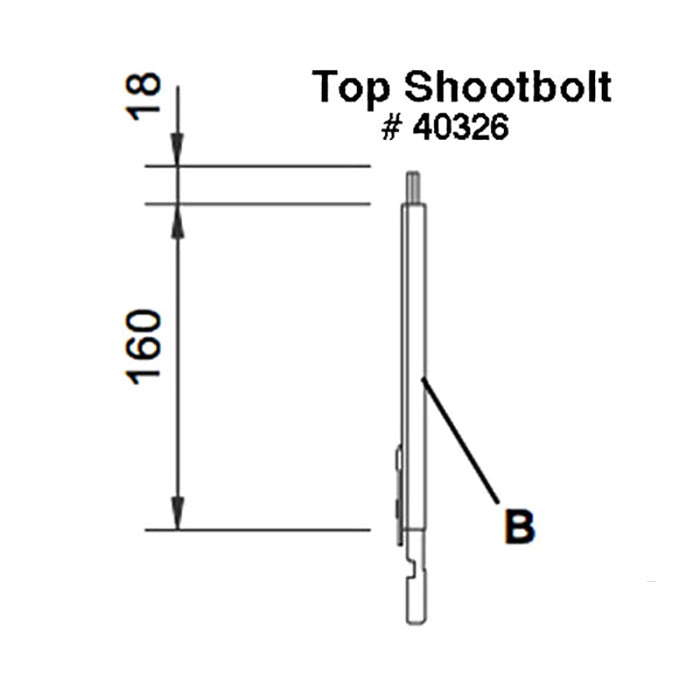

  • Basic Gear 1900mm + top shootbolt 160mm = 2060mm (81.10 inches)
  • Extension 500mm + 2060mm standard = 2560mm (100.787 inches)
  • If your door exceeds 101 inches (2565mm), you will need two shootbolt extensions

Related Parts

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if I need one or two shootbolt extensions?

If your door height is between 81 inches and 101 inches, you need one extension. If your door exceeds 101 inches, you will need two shootbolt extensions.

Can this extension be trimmed to fit my door?

Yes, this shootbolt extension can be cut down by up to 10 inches (250mm) to accommodate your specific door height.

What door brands is this extension compatible with?

This Ferco shootbolt extension is compatible with Pella, Atrium, Superior, and other multipoint door systems that use the Ferco lock platform.
