Hoppe/Fuhr 4-Point Multipoint Lock Kit for MW Doors – 35mm Backset, 92mm PZ

Hoppe/Fuhr 4-Point Multipoint Lock Kit for MW Doors – 35mm Backset, 92mm PZ

SKU: 4990226-KIT

$254.01 - $254.01
$254.01
$254.01 - $254.01
$254.01

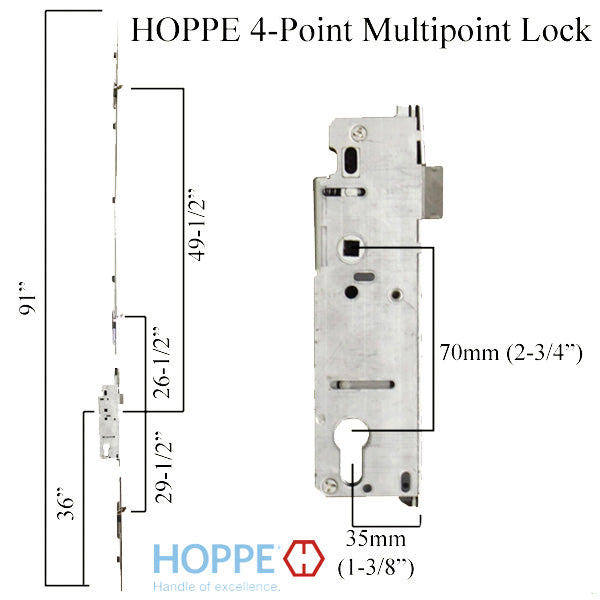

  • Backset: 1-3/8" (35mm)
  • PZ: 3-5/8" (92mm)
  • Handle Height: 36" (914.4mm), can be cut to 34-1/2" (876.3mm)

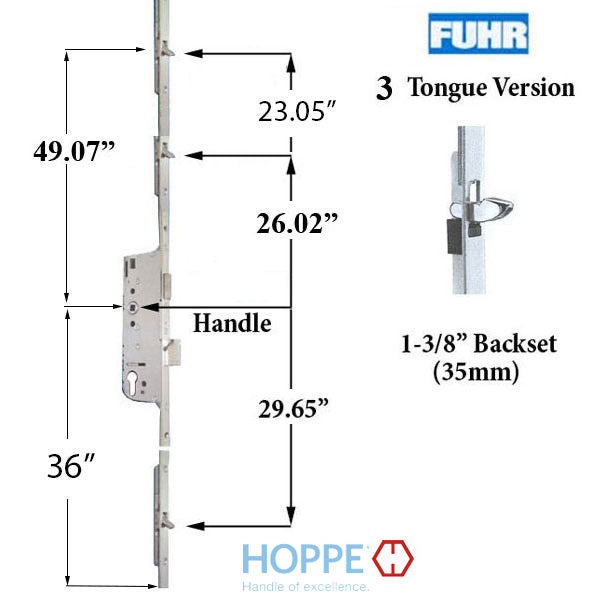

  • Configuration: 4-point multipoint lock with 3 tongues + deadbolt/spring latch
  • Bottom Tongue Position: 29-5/8" (752.5mm) below handle
  • Middle Tongue Position: 26-1/2" (673.1mm) above handle
  • Top Tongue Position: 49-1/2" (1257.3mm) above handle
  • Overall Length: Fits doors 91" to 93-5/8" (2311mm to 2378mm)
  • Maximum Length: 93-5/8" (2378mm) before cutting
  • Used by MW Door Company
  • Priced and sold as a package
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe/Fuhr 4-Point Multipoint Lock Kit – 35/92 (4990226-KIT)

This 4-point multipoint lock kit is designed for use with MW Door Company doors. The tongue version configuration features 3 tongues plus a deadbolt/spring latch for comprehensive door security.

The lock fits doors measuring 91 inches to 93-5/8 inches in overall length, with a maximum length of 93-5/8 inches before cutting. The handle height is 36 inches but can be trimmed to fit MW doors with a 34-1/2 inch handle height.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • PZ (Handle to Cylinder): 3-5/8 inches (92mm)
  • Handle Height: 36 inches (can be cut to 34-1/2 inches)
  • Bottom Tongue Position: 29-5/8 inches below handle
  • Middle Tongue Position: 26-1/2 inches above handle
  • Top Tongue Position: 49-1/2 inches above handle
  • Overall Length Range: 91 inches to 93-5/8 inches
  • Maximum Overall Length: 93-5/8 inches before cutting

Kit Includes

  • 8778143 - 16mm Manual Tongue Gear, 35/92, 1 inch deadbolt, tongue at 29.65 inches
  • 2240631 - Top Extension with 2 tongues at 26-1/2 inches and 49-1/2 inches up from handle
  • 8785695 - Stainless Steel Screws (13 pieces)

Notes

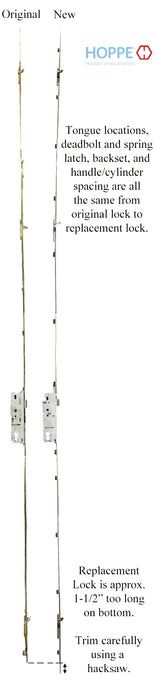

  • When using this lock to replace an MW Door with a Fuhr 4-point lock, carefully use a hacksaw to trim about 1-1/2 inches off the bottom of the new lock to ensure the handle reaches the correct height
  • The latch handing can be changed if facing the wrong direction

Replaces / Replaced by

Additional Resources

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I install this lock on an MW door with a 34-1/2 inch handle height?

Carefully use a hacksaw to trim about 1-1/2 inches off the bottom of the new lock to ensure the handle reaches the correct height.

Can the latch handing be reversed on this lock?

Yes, the latch handing can be changed if it is facing the wrong direction. Insert a small screwdriver into the hole on the back of the latch, push forward, twist, and release.

What is included in this multipoint lock kit?

The kit includes a 16mm manual tongue gear with deadbolt, a top extension with 2 tongues, and 13 stainless steel installation screws.
