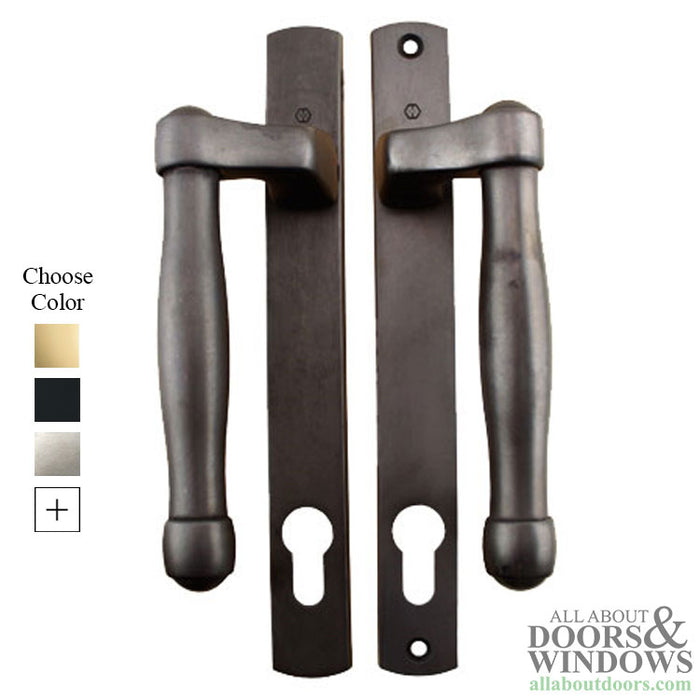

Fuhr Sliding Patio Door Handle Set – L-Type, Active, 120mm PZ

SKU:

$271.30 - $728.76

$271.30

$271.30 - $728.76

$271.30

PZ: 4-23/32" (120mm) - center of spindle hole to center of cylinder hole
Door Thickness: 1-3/4" (45mm)
Plate Height: 8-7/8" (225mm)
Plate Width: 1-1/8" (28mm)
Backplate Screw Hole Pattern: 8-3/16" (208mm)
Handle Design: 574, L-Shape
Cylinder: Schlage 5-pin SC1 keyway, 360-degree keyed profile
Markings on Plate: M392N
Non-handed - works regardless of door slide direction
For use with Fuhr/Hoppe multipoint sliding door locks with 3 hooks
Includes inside/outside handles, escutcheon plates, spindle, screws, cylinder, and 2 keys
Priced and sold as a package

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Fuhr Sliding Patio Door Handle Set – L-Type, Active (40254)

This Fuhr sliding patio door handle set is designed for active sliding patio doors equipped with Fuhr or Hoppe multipoint locks featuring 3 hooks. The L-shaped handle design (574) provides comfortable operation and a clean aesthetic for your sliding door system.

The handle set features a PZ measurement of 4-23/32 inches (120mm), which is the distance from the center of the spindle hole to the center of the cylinder hole. It is designed for doors with a thickness of 1-3/4 inches (45mm). The FUHR MASSIV 392 backplate has a screw hole pattern of 8-3/16 inches (208mm), with plate dimensions of 8-7/8 inches (225mm) in height and 1-1/8 inches (28mm) in width.

Security is provided by a Schlage 5-pin SC1 keyway cylinder with 360-degree keyed profile, allowing key operation from any angle. This handle set is non-handed, meaning it works regardless of which direction your door slides, simplifying ordering and installation.

Stamped With

M392N (on plate)

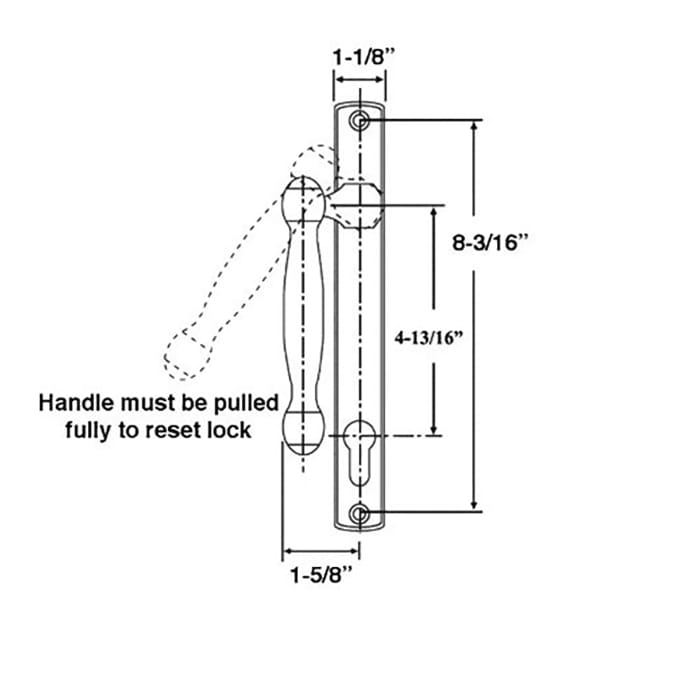

Technical Information

PZ: 4-23/32 inches (120mm)
Door Thickness: 1-3/4 inches (45mm)
Plate Height: 8-7/8 inches (225mm)
Plate Width: 1-1/8 inches (28mm)
Backplate Screw Hole Pattern: 8-3/16 inches (208mm)
Handle Design: 574, L-Shape
Cylinder Type: Schlage 5-pin, SC1 keyway
Handing: Non-handed

Notes

Available finishes: Polished Brass, Brushed/Satin Chrome, Oil Rubbed Brass, Antique Brass
For use with Fuhr/Hoppe multipoint sliding door locks with 3 hooks

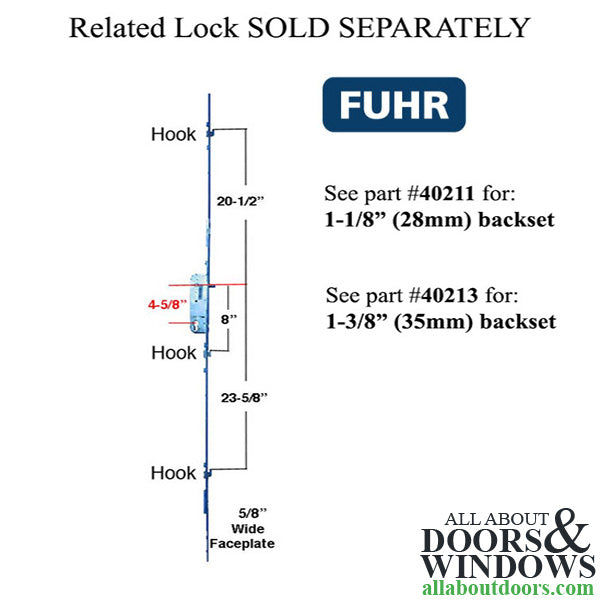

Related Parts

40211 - Fuhr Sliding Door Multipoint Lock, 3 Hooks, 28mm Backset
40213 - Fuhr Sliding Door Multipoint Lock, 3 Hooks, 35mm Backset

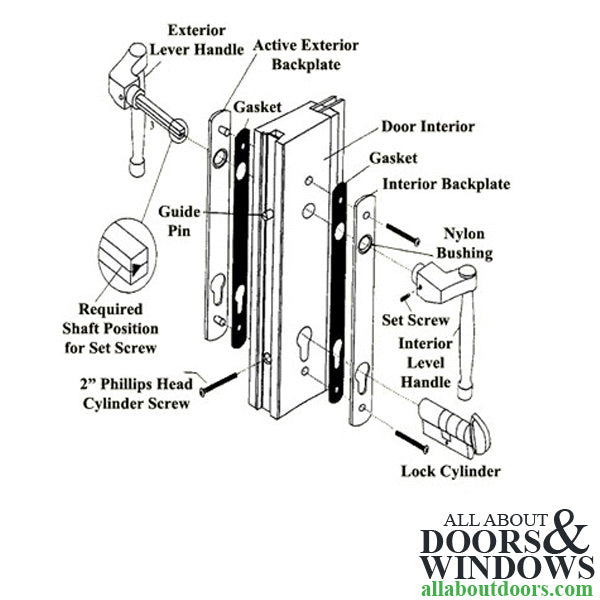

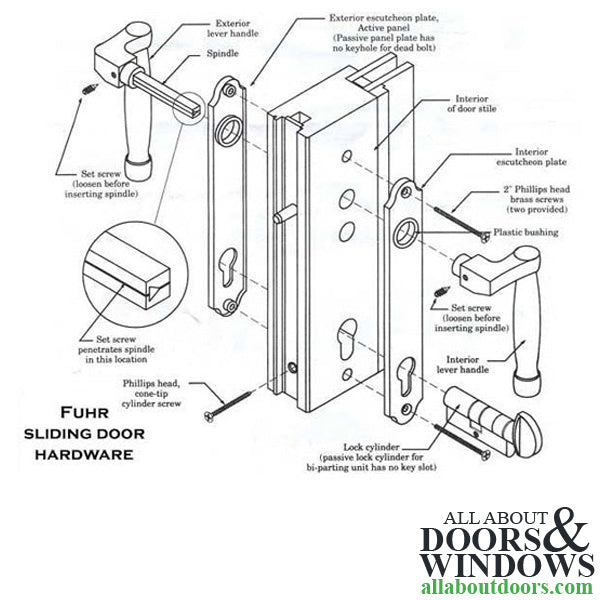

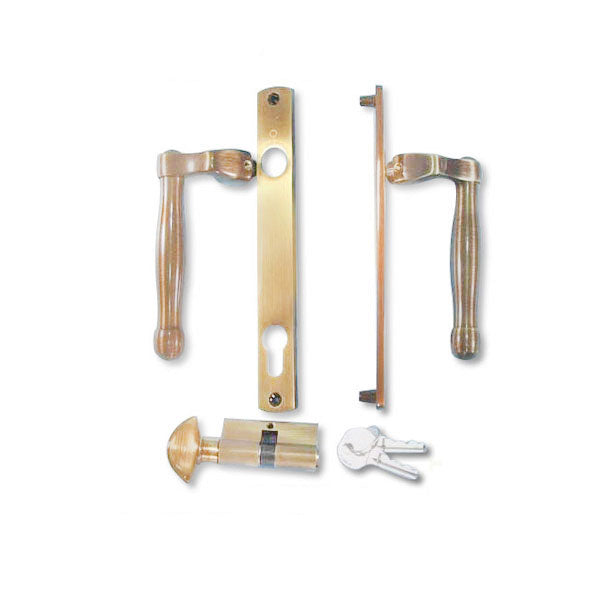

Package includes inside and outside handles, escutcheon plates, spindle, screws, 360-degree keyed profile cylinder, and 2 keys. Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean for this handle set?

PZ refers to the distance between the center of the spindle hole (where the handle connects) and the center of the cylinder hole (where the key goes). For this handle set, the PZ is 120mm (4-23/32 inches).

Does this handle set work for left-hand or right-hand sliding doors?

This handle set is non-handed, meaning it works regardless of which direction your sliding door opens. You don't need to specify handing when ordering.

What lock does this handle set work with?

This handle set is designed for use with Fuhr or Hoppe multipoint sliding door locks with 3 hooks, such as part numbers 40211 (28mm backset) or 40213 (35mm backset).
