Fuhr Inline-Gear Multipoint Lock for 6' 8" Sliding Patio Doors – 28mm Backset, 120mm PZ

SKU: 40211

$427.18 - $427.18

$427.18

$427.18 - $427.18

$427.18

Backset: 1-1/8" (28mm)
PZ: 4.72" (120mm)
Faceplate Width: 5/8" (16mm)
Faceplate Length: 61-3/4" (1568mm)
Spindle Diameter: 5/16" (8mm)
Door Size: For 6' 8" active sliding patio doors
2 or 3 piece inline-gear multipoint lock case
Three hooks located 11-3/4", 27-1/2" from bottom and 5-3/4" from top when unlocked
Cylinder will not operate when in unlocked position
Sticker on some locks: U2/KOP or 11Z/KOP
Priced and sold each

Part is considered obsolete and limited to existing stock

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Fuhr Inline-Gear Multipoint Lock – 28/120 (40211)

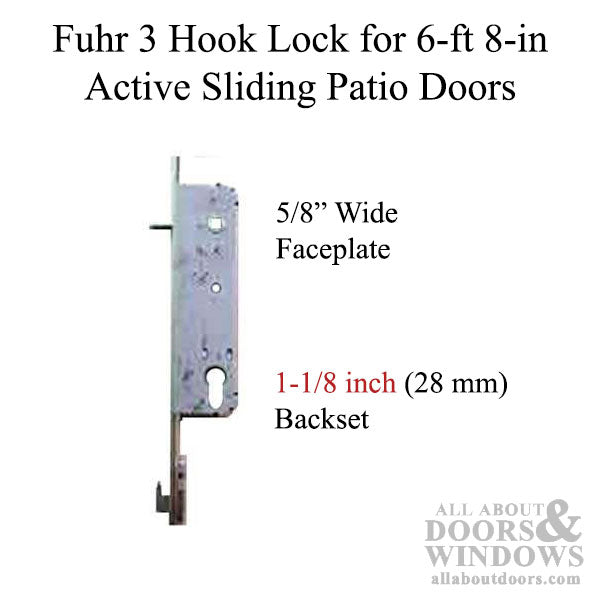

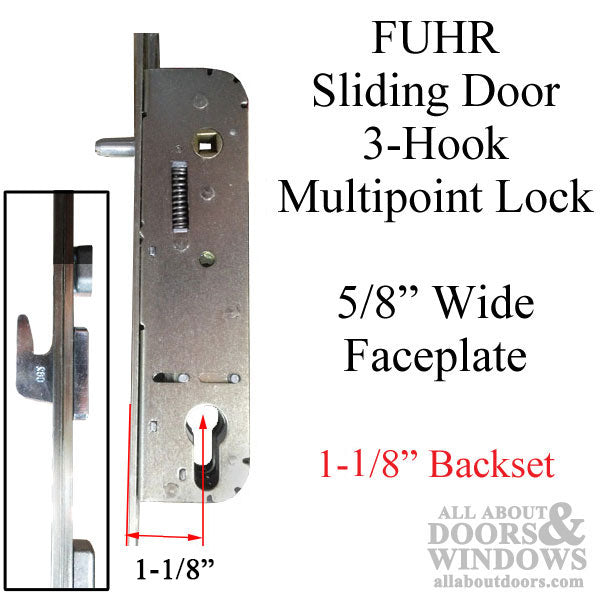

This Fuhr inline-gear multipoint lock is designed for 6 foot 8 inch active sliding patio doors. The lock features a 2 or 3 piece lock case configuration with three hooks for secure door engagement.

The gear section faceplate measures 5/8 inches (16mm) wide by 61-3/4 inches (1568mm) long. When the door is in the unlocked position, the three hooks are located 11-3/4 inches and 27-1/2 inches from the bottom, and 5-3/4 inches from the top. Some doors may have a top section to extend the lock to the top of the door, though these extensions are no longer available and the original must be reused.

Technical Information

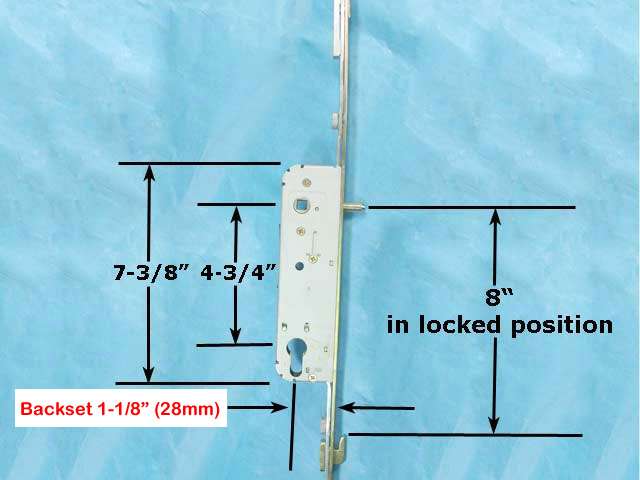

Backset: 1-1/8 inches (28mm)
Handle PZ: 4.72 inches (120mm) – distance between center of spindle hole and center of cylinder hole
Spindle Diameter: 5/16 inches (8mm)
Faceplate Width: 5/8 inches (16mm)
Faceplate Length: 61-3/4 inches (1568mm)

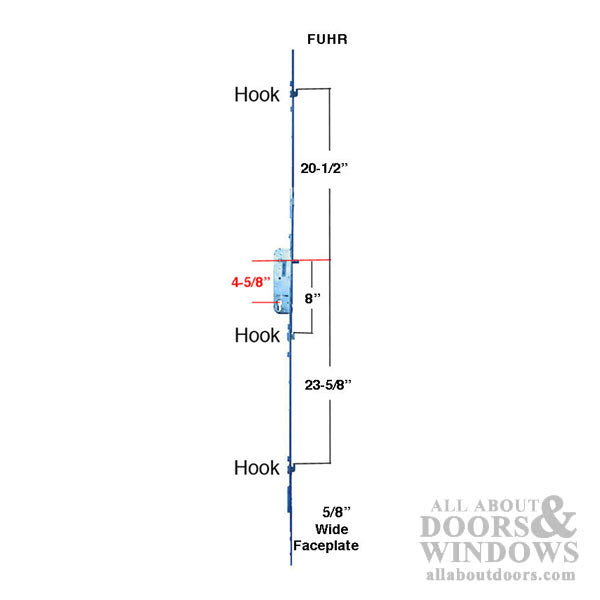

Center of handle to center of first hook slot: 9 inches
Center of handle to center of second hook slot: 25 inches
Center of handle to center of top hook slot: 19-1/2 inches

Stamped With

Some locks have sticker: U2/KOP or 11Z/KOP

Notes

Cylinder will not operate when in unlocked position
There are 4 tick marks on the bottom end of the faceplate to cut to fit different doors
Top extensions are no longer available – must reuse original if present

Related Parts

40213 – Fuhr Sliding Door Lock with 1-3/8 inch (35mm) backset

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on this lock?

PZ refers to the distance between the center of the spindle hole and the center of the cylinder hole, which is 4.72 inches (120mm) on this lock.

Why won't my cylinder turn when the door is unlocked?

This is normal for Fuhr locks. The cylinder will not operate when the door is in the unlocked position.

Can I get a top extension for this lock?

Top extensions for this lock are no longer available. If your door has a top section, you will need to reuse the original extension.
