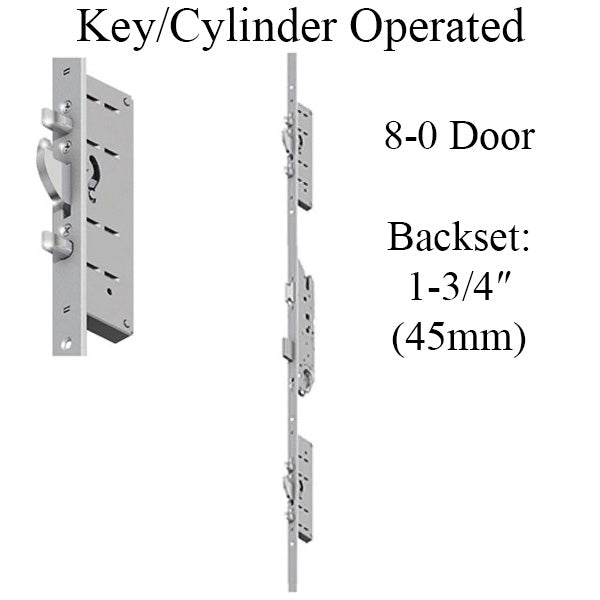

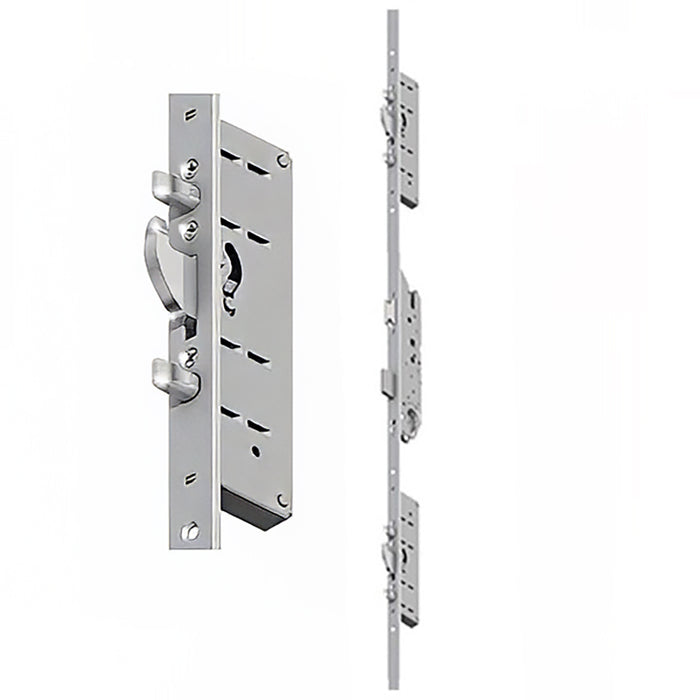

Hoppe Key Operated Multipoint Lock – 45mm Backset, 40.2" Handle Height

Hoppe Key Operated Multipoint Lock – 45mm Backset, 40.2" Handle Height

SKU 40005781

$597.40 - $597.40
$597.40
$597.40 - $597.40
$597.40
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 15/16" (24mm)
  • Handle Height: 40.2" (1020mm)
  • Handle Hub/Shaft: 5/16" (8mm) Standard or 9mm Egress
  • Panel Height Range: 85.43" to 94.49" (2170-2400mm)
  • Latch Type: Spring (roller latch optional)
  • Material: Stainless Steel
  • Function: Standard or Egress available
  • Requires 360° cylinder for operation
  • Key operated exterior, thumb turn interior
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Key Operated Multipoint Lock – 45mm/1020mm (40005781)

This Hoppe key operated multipoint lock provides secure, multi-point locking for entry doors. Designed for doors ranging from 85.43 to 94.49 inches (2170-2400mm) in panel height, this lock features a 1-3/4 inch (45mm) backset and 40.2 inch (1020mm) handle height.

The lock is available in two function types. The Standard Function uses a 5/16 inch (8mm) handle shaft and allows the exterior key or interior thumb turn to lock and unlock the door with two turns. The exterior key or interior cylinder thumb knob will retract the latch. The Egress Function uses a 9mm handle shaft and allows the interior lever to retract the latch and all extended bolts in a single motion, providing quick egress capability.

The faceplate measures 15/16 inch (24mm) wide and is constructed from stainless steel. The lock comes standard with a spring latch, with an optional roller latch available.

Technical Information

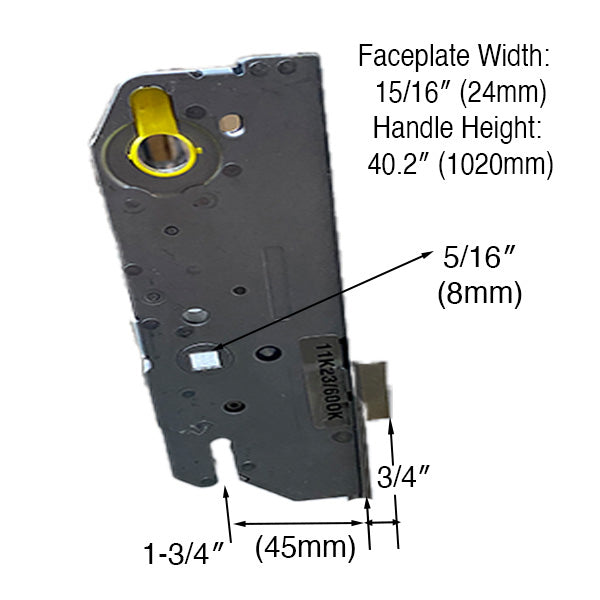

  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 15/16 inch (24mm)
  • Handle Height: 40.2 inches (1020mm)
  • Handle Hub/Shaft: 5/16 inch (8mm) Standard / 9mm Egress
  • Panel Height Range: 85.43-94.49 inches (2170-2400mm)
  • Latch Type: Spring (roller latch optional)
  • Material: Stainless Steel

Notes

  • A 360° cylinder is REQUIRED for this lock
  • Compatible 360° cylinder: 413232130 (verify door thickness before purchasing)
  • 90° cylinders can be converted to 360° using Hoppe's conversion method
  • New for 2019

Related Parts

  • 40005847 - Latch and Deadbolt Strike, Left Hand
  • 40005859 - Latch and Deadbolt Strike, Right Hand
  • 40005860 - Roundbolt/Swing Hook Strike, Non-Handed
  • 8785695 - Screws, Stainless Steel, 35mm

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What type of cylinder does this lock require?

This lock requires a 360° cylinder. You can purchase a compatible 360° cylinder (part 413232130) or convert a 90° cylinder to 360° operation.

What is the difference between Standard and Egress function?

Standard function uses an 8mm handle shaft and requires the key or thumb turn to retract the latch. Egress function uses a 9mm handle shaft and allows the interior lever to retract all locking points in one motion for quick exit.

What door heights is this lock designed for?

This multipoint lock is designed for doors with panel heights between 85.43 inches and 94.49 inches (2170-2400mm).
