Euro Mortise Cylinder with Thumbturn – 1-3/4" Door, Schlage SC-1 Keyway

Euro Mortise Cylinder with Thumbturn – 1-3/4" Door, Schlage SC-1 Keyway

SKU

$32.13 - $35.00
$32.13
$32.13 - $35.00
$32.13
  • Cylinder Type: Euro mortise profile, single key with crescent thumbturn
  • Door Thickness: 1-3/4" (44.5mm)
  • Cylinder Length: 2-1/2" (63mm) standard housing
  • Cam Position: Centered at 1-1/4" (32mm) from either side
  • Keyway: Schlage 5-pin SC-1, rekeyable, includes 2 keys
  • Rotation: 360 degree mortise cylinder
  • Material: Solid brass (will tarnish over time)
  • Available Finishes: Polished Brass, Satin Nickel, Oil Rubbed Bronze, Polished Chrome (limited stock)
  • Compatibility: Atrium, Hoppe, Jado, CES, CEL, Marks, Fuhr, Ferco, Weathershield, Caradco, Kolbe, Hurd, Biltbest, and others
  • Priced and sold each
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Euro Mortise Cylinder – 1-3/4" Door, Thumbturn (413232130)

This standard 360-degree mortise single key cylinder features a crescent thumbturn on the interior side, making it a popular replacement option for Atrium doors and many other multipoint lock systems. The euro profile design fits doors that are 1-3/4 inches (44.5mm) thick.

The cylinder uses a Schlage 5-pin SC-1 keyway that can be rekeyed, and comes with 2 keys included. The cam is centered at 1-1/4 inches (32mm) from either end, providing balanced operation within the lock mechanism.

Technical Information

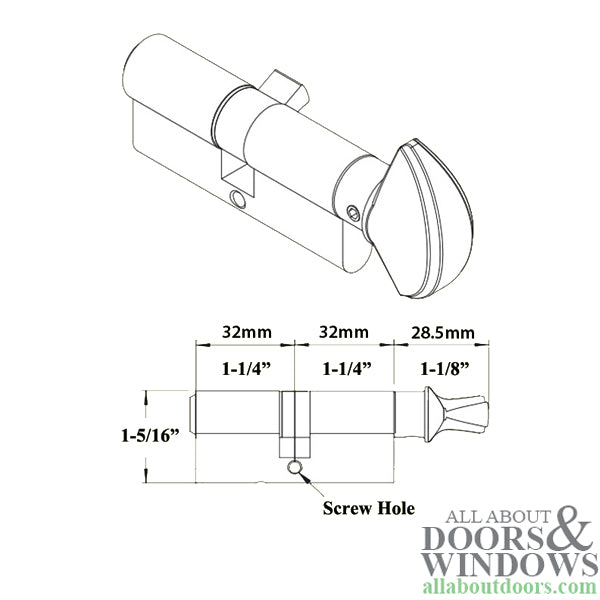

  • Cylinder Length: 2-1/2 inches (63mm)
  • Inside Measurement: 1-1/4 inches (31.5mm)
  • Outside Measurement: 1-1/4 inches (31.5mm)
  • Cam Position: 32mm / 32mm (centered)
  • Door Thickness: 1-3/4 inches (44.5mm)
  • Keyway: Schlage 5-pin SC-1
  • Keys Included: 2
  • Material: Solid brass
  • Country of Origin: China

Notes

  • This solid brass cylinder will tarnish over time and does not have the Resista PVD no-tarnish finish.
  • Polished chrome finish is limited to existing inventory.
  • Commonly used as a replacement for Atrium door locks alongside other Atrium replacement parts.
  • Compatible with doors by Atrium, Hoppe, Jado, CES, CEL, Marks, Fuhr, Ferco, Weathershield, Caradco, Kolbe, Hurd, Biltbest, and others.

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door thickness does this cylinder fit?

This cylinder is designed for doors that are 1-3/4 inches (44.5mm) thick, with a standard 63mm housing length.

Can this cylinder be rekeyed?

Yes, this euro mortise cylinder uses a Schlage 5-pin SC-1 keyway and can be rekeyed by a locksmith.

Will this cylinder tarnish over time?

Yes, this solid brass cylinder will tarnish as it does not have the Resista PVD no-tarnish finish.
