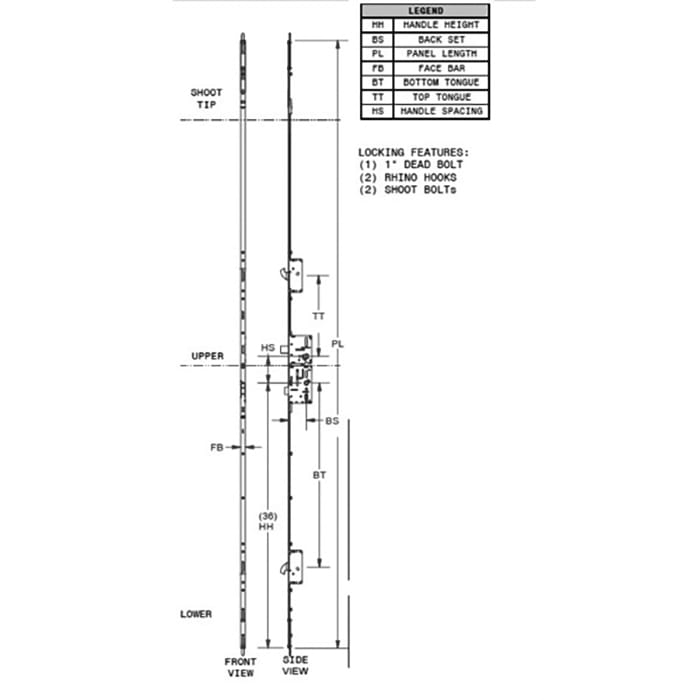

Amesbury P3000 Multipoint Lock Gear – 45mm Backset, 92mm PZ, 36" Handle Height

SKU: 16-30021LA

$108.34 - $108.34

$108.34

$108.34 - $108.34

$108.34

PZ: 92mm (3-5/8")
Backset: 45mm (1-3/4")
Faceplate Width: 16mm (5/8")
Handle Height: 36" (914mm)
Lower Rhino Hook Position: 24.87" (632mm)

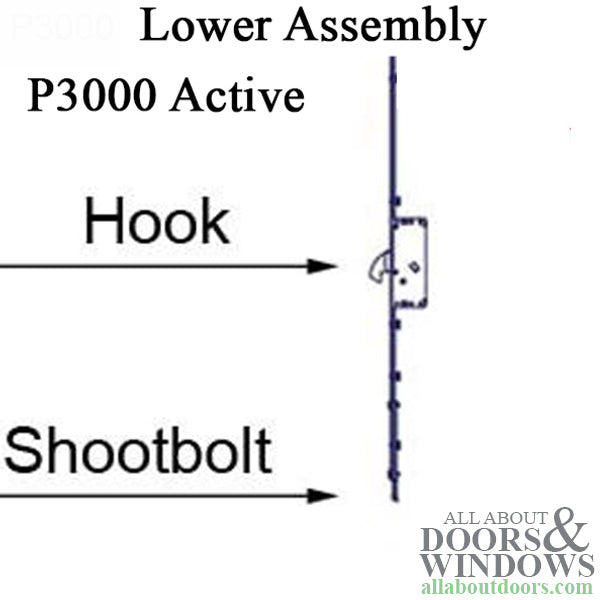

Configuration: 5-point system with Rhino hooks and shootbolts
Key Position: Above handle
Requires upper extension based on door height (sold separately)
Compatible with multiple door heights from 69" to 121.5"

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Amesbury P3000 5-Point Multipoint Lock – 45/92, 36" Handle (16-30021LA)

The Amesbury P3000 Multipoint Lock Gear is a 5-point locking system designed for enhanced security on entry doors. This lock features Rhino hooks and shootbolts for superior holding power and resistance to forced entry. The key cylinder is positioned above the handle for convenient operation.

This gear body serves as the main component of the multipoint system and requires an upper extension to complete the installation. The appropriate upper extension depends on your door panel height, with options available for doors ranging from 69 inches to 121.5 inches tall.

Technical Information

PZ (Handle Spacing): 92mm (3-5/8 inches)
Backset: 45mm (1-3/4 inches)
Faceplate Width: 16mm (5/8 inch)
Handle Height: 36 inches (914mm)
Lower Rhino Hook Position: 24.87 inches (632mm)
Locking Points: 5-point (Rhino hooks and shootbolts)
Key Position: Above handle

Related Parts

Upper (Middle) Extensions by Door Height:
- 664530017UA – For doors 69-82.5 inches, upper hook at 14.47 inches
- 664530018UA – For doors 82-95.5 inches, upper hook at 27.47 inches
- 664530019UA – For doors 95-108.5 inches, upper hook at 40.47 inches
- 664530020UA – For doors 108-121.5 inches, upper hook at 53.47 inches
Top Shootbolt Extension: 16-3468
Latch and Deadbolt Strike Plates:
- 3475-82 – Curved lip
- 3476-82 – Flat lip
- 3477-82 – Passive
Shootbolt Strike Plates:
- 3087 (replaced by 2098911) – Single
- 3088 – Double
Rhino Hook / Tongue Strike Plates: 2856-82
Passive Gear for Double Doors: 16-30013LA (16mm faceplate, 45/92, 36 inch handle height)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I choose the correct upper extension for this lock?

Measure your door panel height and select the corresponding extension: 664530017UA for 69-82.5 inch doors, 664530018UA for 82-95.5 inch doors, 664530019UA for 95-108.5 inch doors, or 664530020UA for 108-121.5 inch doors.

What does 5-point locking mean?

A 5-point lock engages at five separate points along the door edge when locked, providing significantly more security than a standard single-point lock by distributing force across multiple locking points.

What are Rhino hooks?

Rhino hooks are heavy-duty hook bolts that swing out from the lock faceplate and engage into strike plates on the door frame, providing strong resistance against prying and forced entry attempts.
