Amesbury P3000 Multipoint Lock Passive Gear – 45mm Backset, 92mm PZ

Amesbury P3000 Multipoint Lock Passive Gear – 45mm Backset, 92mm PZ

SKU: 16-30013LA

$150.80 - $150.80
$150.80
$150.80 - $150.80
$150.80
  • PZ (Handle Spacing): 3-5/8" (92mm)
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Lower Rhino Hook Receptacle: 24.87" (632mm)
  • Key Position: Above handle
  • Type: Passive gear (for inactive door panel)
  • Requires separate upper extension based on door height
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Amesbury P3000 Passive Gear – 45/92 (16-30013LA)

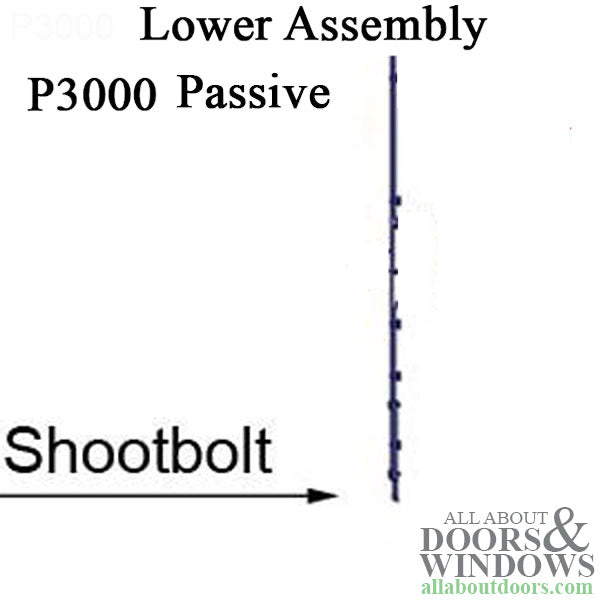

This Amesbury P3000 multipoint lock passive gear is designed for the inactive panel of double door systems. The passive gear works in conjunction with the active multipoint lock to provide secure multi-point locking across both door panels.

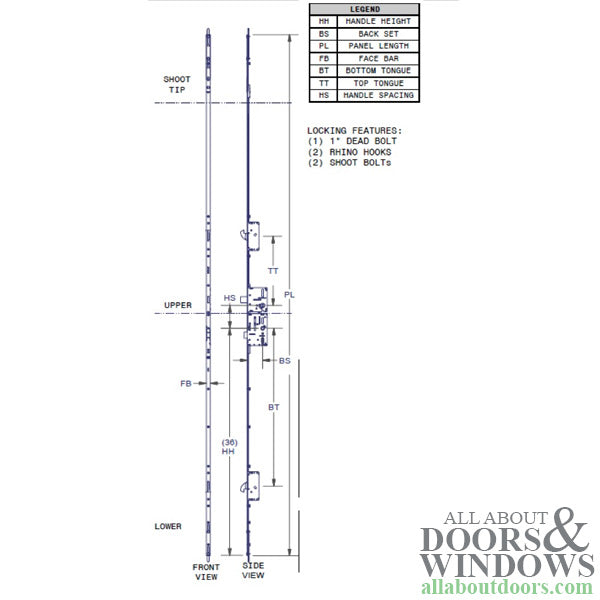

This unit features a key cylinder position above the handle, with a 1-3/4 inch (45mm) backset and 3-5/8 inch (92mm) handle spacing (PZ). The handle height measures 36 inches (914mm) from the bottom of the faceplate, and the lower Rhino hook receptacle is positioned at 24.87 inches (632mm).

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • PZ (Handle Spacing): 3-5/8 inches (92mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Handle Height: 36 inches (914mm)
  • Lower Rhino Hook Receptacle: 24.87 inches (632mm)
  • Key Position: Above handle

Notes

This P3000 passive gear requires a separate upper extension based on your door panel height. Select the appropriate extension from the related parts list below.

Related Parts

  • Upper (Middle) Extensions:
    • 654530013UA – For doors 69-82.5 inches, upper hook receptacle at 14.47 inches
    • 654530014UA – For doors 82-95.5 inches, upper hook receptacle at 27.47 inches
    • 654530015UA – For doors 95-108.5 inches, upper hook receptacle at 40.47 inches
    • 654530016UA – For doors 108-121.5 inches, upper hook receptacle at 53.47 inches
  • Top Shootbolt Extension: 16-3468
  • Latch and Deadbolt Strike Plates: 3477-82
  • Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is a passive gear used for?

A passive gear is installed on the inactive panel of a double door system. It works with the active multipoint lock on the primary door to secure both panels when closed.

How do I choose the correct upper extension?

Measure your door panel height and select the corresponding extension: 654530013UA for 69-82.5 inch doors, 654530014UA for 82-95.5 inch doors, 654530015UA for 95-108.5 inch doors, or 654530016UA for 108-121.5 inch doors.

What does PZ measurement mean?

PZ refers to the handle spacing, which is the distance from the center of the handle to the center of the key cylinder. This unit has a 92mm (3-5/8 inch) PZ.
